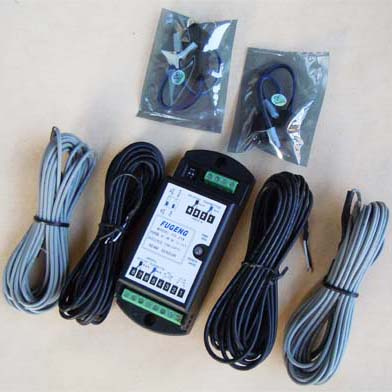

FG-218 Automatic door Safety beam sensor
Microcomputer control technology, system integration is high, strong stability.
International Universal optical lens design, focus, controlled angle is rational, easy to install on the radio.
Send and receive a special code using microcomputer technology, transmitting and receiving range, anti-interference ability.
From Germany to receive filtering, decoding, amplification system, effective solution to anti-interference of natural daylight.
Emission head adopts low-power high pulse emission technology, transmission distance, low power consumption, long life for the camera.
A single group or two groups split lens connected transceiver input, connection and good shielding Available with a beam of light, can also be a controlled double-light.
Light block trigger, the output can be flexibly select normally open or normally closed contact signal.
Design of wide input voltage, 12 ~ 36V AC-DC power input is valid.
------------------------------------
FG-218 Automatic door beam sensor Specification:
Supply power: AC/DC 12~36V
Static current: 25mA
Action current: 40mA
The maximum distance between the sending and receiving: 10m
NO or NC output contact: 0~1.5s (adjustable)
Outside in lines with the send wiring: 6m(blue)

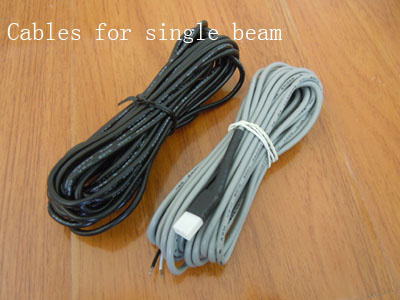

Receive line: 6m(black)
Beam: Single beam or double beam
Working Environment temperature: -10-45
Working environment humidity: 10~90%RH
Appearance dimensions(Main controller): 123(L)x50(W)x32(H)mm
Appearance dimensions(Magic eye head): 19(L)x13(D
