China Supplier new product high quality machine car tire changer 220v
SPECIFICATION
Rim clamp from outside:10"-24"
Rim clamp from inside: 12"-26"
Max.wheel diameter: 1040mm
Max wheel width:15"
Working air pressure:0.8-1.2Mpa
Motor:380v 0.75kw 3ph 50hz
Machine weight:360kg
ADVANTAGE
1)Automatic tyre changer with pneumatic
2)Forward/back swinging mounting arm.
3)Pneumatic locking mounting head.
4)Clamping control footpetals in cylinder forward step by step, its convenient and promptly to folder rims
5)Rotary plate with 4 clamping with self-centered construction could make sure it hold, clip wheel reliably.
6)Two sets of clamping cylinder assembly support the action of hold and clip the wheel.
7)Dual role bead breaker shoe control cylinders to press the tire.
8)4 Alumina alloy foot pedals.
9)Electronic control rotary plate clockwise and counterclockwise rotation.
10)Standard water-oil separator with pressure watch.
11)Right helper convenient,fast,safe more energy when helping tyre's operation

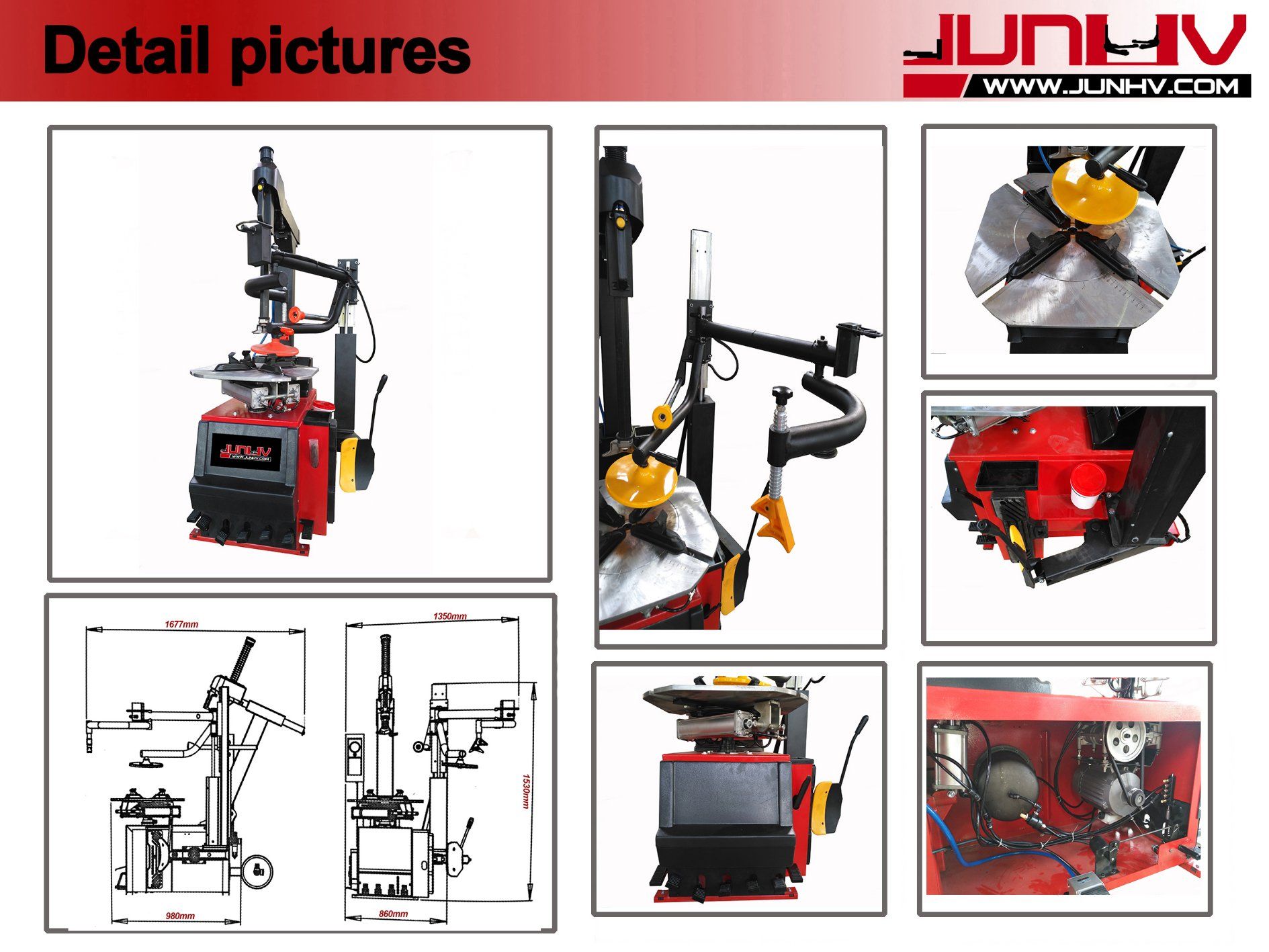

Detail picture:

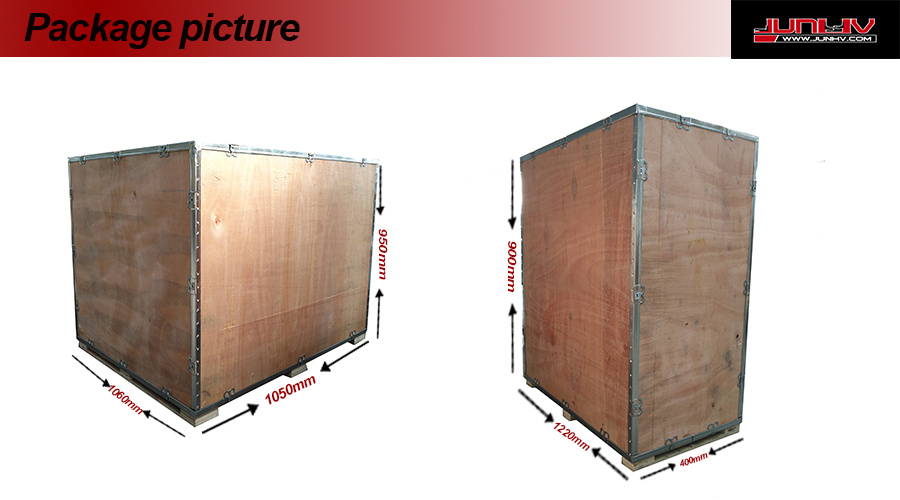

Packing&Shipping
Packaging:Standard Export Package.
Delivery it takes 3 weeks after receving your receipt payment .
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
Company Information
JUNHV (Junhv Automobile Inspection Device Co.,Ltd.)
Strives for providing customers high quality automotive equipment with best price.All the members of JUNHV have rich experience and innovative spirit.The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We have established long standing and stable business relationships with many renowned company,exported top Asia, Europe, America and Austral.
Main products includding two post lifts, four post lifts, full-rise scissor lifts, mid-rise scissor lifts, tire changers, wheel balancers, and shop presses, hydraulic jacks, cranes and other related products.
Quality Management
Processes are under a very serious and strict system.Hole manufacturing system certificate and the CE&ETL certification. All of our products are 100% inspected before shipment.WTo guarantee high quality and efficient management, we have passed ISO9001 quality management
FAQ:| Q1 What's the delivery term for making business with us? |
A1 Usually we send the shipments in FOB term.
However, the terms of CIF and C&F are acceptable which depend of clients. |
| Q2 What's the delivery time after placing the order? |
| A2 Usually it takes 3 weeks after receiving your receipt payment.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
| Q3 What's the payment? |
| A3 By T/T,50% is paid in advance, balance before delivery |
-----------------------------------------------------------------------------------------------------------------------------
