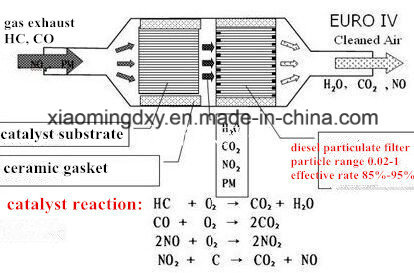

Metallic Honeycomb Substrate is widely used in exhaust gas purification, especially for automobile and motorbike. Metal Honeycomb Substrate has high strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of automobile/motorcycle exhaust efficiently, such as CO, HC, NOX etc...And such kind of catalyst is of excellent catalytic activity and durability that could reach emission standard EuroII, EuroIII, EuroIV, etc.

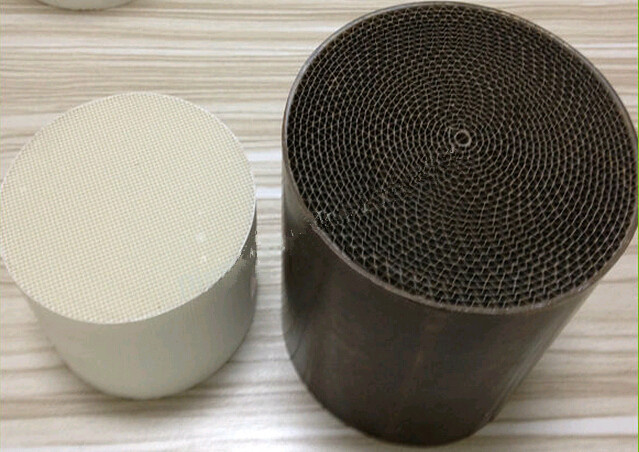

Catalyst type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex catalyst, catalytic substrate: Metal substrate and honeycomb ceramic substrate. Fantastic coating fastness and stably and long-term catalyst ability. Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment, various kinds of specifications and types, customized products as per clients specific requirement and technology data.
Advantages:*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure
*Excellent quality and competitive price
| Light-off temperature | Durability | Conversion efficiency | Coating desquamate rate |
| T50(CO)≤230 T50(HC)≤260 T50(NOX)≤250 | 1000KM | CO≥85% HC≥80% CO≥85% | ≤7% |
| Shape | Material | Diameter | Length | Channel density(cpsi) | Precious metal |
| Cylinder | Fe/Cr/Al | 20 | 20 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 20 | 80 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 30 | 100 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 28 | 60 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 28 | 100 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 35 | 30 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 35 | 40 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 35 | 60 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 35 | 70 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 35 | 100 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 38 | 100 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 42 | 100 | 100/200 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 48.6 | 70 | 100/200/300 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 63 | 50 | 100/200/300/400 | Pd/Pt/Rh |
| Cylinder | Fe/Cr/Al | 101.6 | 100 | 400 | Pd/Pt/Rh |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
