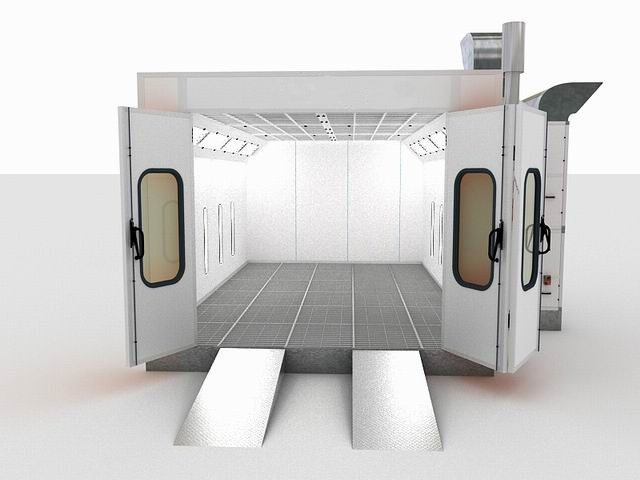

Auto Spray Booths for Repair, Baking, Painting

Auto Spray Booths for Repair, Baking, Painting
Price: US $ 6260/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Detailed Product Description

Downdraft Car Maintenance, Auto Spray Booths With one 5.5KW exhaust fan


Downdraft Car Maintenance, Auto Spray Booth With one 5.5KW exhaust fan

1.CE approved, ISO 9000 safety control
 2.2X4Kw double-intake centrifugal fans
 3.high quality




Car painting, Automobile Baking, Portable Auto Spray Booths
1.Italian Riello RG5S diesel burner
 2.SUS304 Stainless steel heat exchanger
 3.Anti-flame and Heat-Insulation



Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
 2) maintains a high level of safety and performance together with top quality construction and materials
 3) Various systems of environmental protection are optional for customers
 4) A wide range of colors available: white,  red,  marine blue,  gray,  orange
 5) Trustworthy durability of each parts
 6) Good after-sales service


Inside Dimension6900X4000X2600MM(LXWXH)
Outside Dimension7000X5600X3250MM(LXWXH)

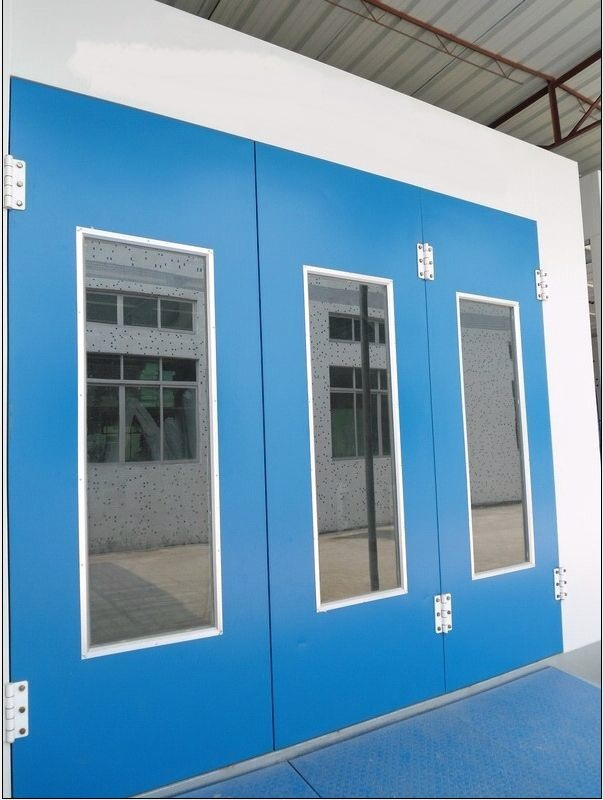

Main door3-fold, 2700X2500MM(WXH) with heat insulation glass window
Personal door1-fold, 650X1800MM (WXH) with one step. There is two sets of pressure lock
 which will automatically open when the pressure inside is over the limi
Booth SystemWall panel :EPS(epispastics polystyrene) heat preservation panel doubleskinned ,
 tongue and groove construction, thickness: 50MM EPS , roof panel: galvanize plate
Basement and floor: Complete steel assemble, height: 300mm. 5 rows of grids,
 2pcs of ramp, each size:750X2000MM(WXL)

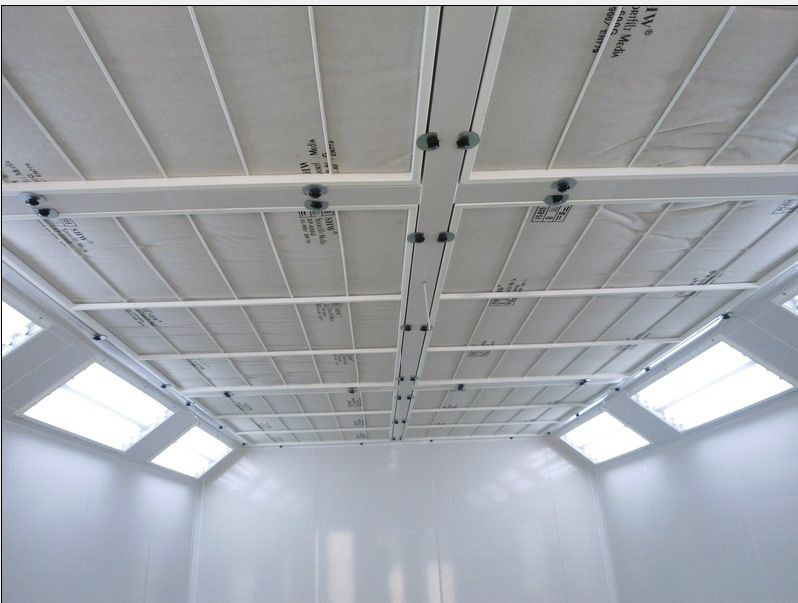

Lighting SystemCeiling light: 3Pcs X8units=24PcsX36W, Lower light: 2Pcs X8units=16PCsX30W,
 vertical installation. Phillip brand light tube with PAK light holder
Generator setting typeSide upper intake air, aluminum alloy frame, coated steel
Ventilation SystemIntake fan:2X4KW double-intake centrifugal fan, , air capacity:25000m3 /h
Exhaust fan: 1Pc 4KW double-intake centrifugal fan, air capacity:15000m3 /h
Heating systemItalian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional
SUS304 Stainless steel heat exchanger, highest temperature 80C, 1pc electric damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 87.1% heat exchanging rate
Filter systemPrefilter, high efficiency filte (ceiling filter), floor filter, exhaust active carbon
 filter
Control systemSpraying, risen-temperature spraying, baking temperature, time setting,
 lighting switch, emergency stop, failure indicator, limited-temperature
 device
Total power15.5KW


Packaging & Delivery

Packaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish

Delivery Detail:To effect shipment within 7 days after deposit


Spray Booth Specifications
1.Germany Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved



Prod Model: EX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inside Dimension: 6900X4000X2600mm(Lxwxh)
Outside Dimension: 7000X5600X3250mm(Lxwxh)
Main Door: 3-Fold, 2700X2500mm(Wxh)
Personal Door: 1-Fold, 650X1800mm (Wxh)
Wall Panel: 50mm EPS Panel with 0.5mm Steel
Basement And Floor: Full Grilles
Lighting System: 24PCS Ceiling Lights, 16PCS Side Lights
Intake Fan: 2X4kw Double-Intake Centrifugal Fan
Exhaust Fan: 1X4kw Double-Intake Centrifugal Fan
Heating System: Italian Riello G20 Diesel Burner
Certification: SGS
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Brand: Captain

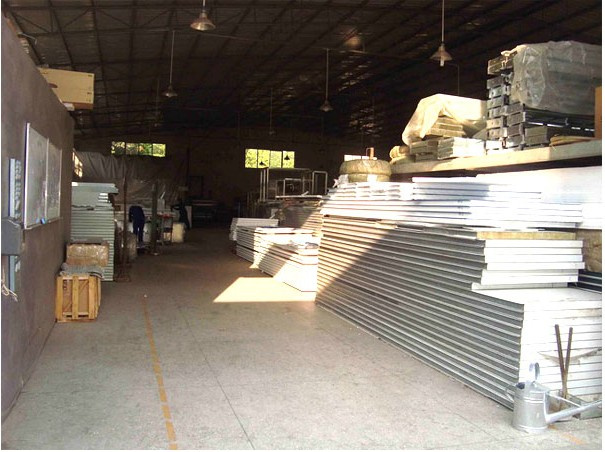

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.

· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.

· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.

Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
