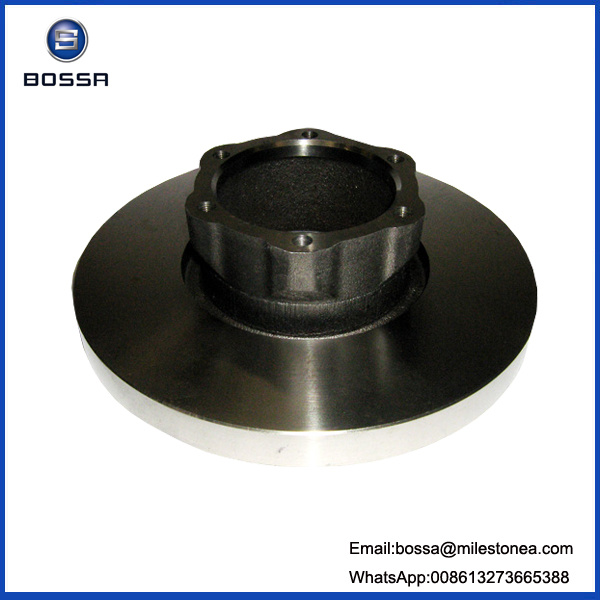

Auto spare parts brake system 6704210012 brake disc/rotor
For our factroy could produce various of Brake disc for cars and trucks.
Material:
1. Must meet Grade HT250 GG20 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190-200
Part of Trucks brake disc OEM NO:
Unit: mm |
| Reference No. | A | B | C | D | E | Holes | Application |
| 308834040 | 377 | 45 | 290 | 160 | 335 | 10x23 | BPW |
| 308834020 | 377 | 45 | 290 | 160 | 335 | 10x23 | BPW |
| 308834080 | 377 | 45 | 290 | 170 | 335 | 10x23 | BPW |
| 308834100 | 377 | 45 | n/a | 160 | 335 | 10x23 | BPW |
| 308835050 | 430 | 45 | n/a | 160 | 335 | 10x23 | BPW |
| 85103803(V) | 434 | 45 | 220 | 45 | n/a | n/a | VOLVO |
| 85103804 | 410 | 45 | 220 | 45 | n/a | n/a | VOLVO |
| 3092710(S) | 434 | 45 | 223 | 45 | n/a | n/a | VOLVO |
| 1386686 | 430 | 45 | 208 | 131 | 237 | 10xM16 | SCANIA |
| 4079000500 | 430 | 45 | 131 | 130 | 168 | 12x19 | SAF |
| 4079000700 | 375 | 45 | 131 | 139.5 | 168 | 12x19 | SAF |
| 21227349 | 378 | 45 | 225 | 150 | 250 | 10xM16 | ROR |
| 21224263 | 378 | 45 | 225 | 150 | 275 | 8x24 | ROR |
| 5010216437 | 438 | 45 | 131 | 97 | 165 | 10x17 | RENAULT |
| 1387439 | 432 | 37-45 | 258 | 45 | n/a | n/a | DAF |
| 2992470 | 436 | 45 | 210 | 139 | 240 | 12xM16 | IVECO |
| 81508030023 | 432 | 45 | 131 | 130 | 168 | 12x19 | MAN |
| 81508030021 | 432 | 45 | 208 | 135 | 235 | 10xM16 | MAN |
| 9424212112 | 430 | 45 | 211 | 132 | 238 | 10xM14 | MERCEDES |
| 9434210312 | 430 | 45 | 130 | 145 | 170 | 10x21, 2xM10 | MERCEDES |
| 9754230312 | 377 | 45 | 176 | 139 | 201 | 8xM14 | MERCEDES |
(1)Features:
1.Material: Gray iron HT250, Meet the American Standard G3000, Also offer ductile cast iron.
2.Hardness: 170- 240HB (for ours between 190-200 HB)
3.Stable coefficient friction
4.Low noise, no dust
5.Long service life
(2)Machining and manufacturing:
CNC maching center. One kind is normal turning, second is grinding,third is slotted and drilled. Many years of production experience. Passed 100% dimension inspection, crack detection and dynamic balance inspection.
(3)Certification: ISO9001: 2000, TS16949.SGS
(4)The brake disc we can make for: BPW, MAN, VOLVO,BENZ, SCANIA , SCANIA , DURAMETAL , IVECO , NISSAN , RENAULT ,HINO, HYUNDAI,etc.
Mainly Casting products: Brake shoe , Brake drum, brake disc, wheel hub, casing, Axle casing, and Axle,
Gear box casing, various of casting covers for trucks , tractors, exacavators etc, such as , Benz, Scanian,Mann, Ievco, Dafa,Hino Nissan, Mistsubish, Hyundai, , Cat, Komatsu, Terex etc.
Note: All the cast iorn products we could produce according to OEM NO samples or drawings.
| MOQ | 50-100PCS |
| Delivery time | Usually 15-20 days |
| Payment items | T/T etc
L/C at sight, west union are acceptable |
| Packing | Standard exported packing
Pallet or wood cartons |
| Certificate | SGS ISO etc |
Material in our factory below:
| Country | Gray iron |
| China | - | HT350 | HT300 | HT250 | HT200 | HT150 | HT100 |
| Japan | - | FC350 | FC300 | FC250 | FC200 | FC150 | FC100 |
| America | NO.60 | NO.50 | NO.45 | NO.35 | NO.30 | NO.20 | - |
| Russia | C40 | C35 | C30 | C25 | C20 | C15 | C10 |
| Germany | GG40 | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| Italy | - | G35 | G30 | G25 | G20 | G15 | G10 |
| France | FGL400 | FGL350 | FGL300 | FGL250 | FGL200 | FGL150 | - |
| England | - | 350 | 300 | 250 | 200 | 150 | 100 |
| Poland | Z140 | Z135 | Z130 | Z125 | Z120 | Z115 | - |
| India | FG400 | FG350 | FG300 | FG260 | FG200 | FG150 | - |
| Romania | FC400 | FC350 | FC300 | FC250 | FC200 | FC150 | - |
| Spain | - | FG35 | FG30 | FG25 | FG20 | FG15 | - |
| Bulgaria | FGG40 | FGG35 | FGG30 | FGG25 | FGG20 | FGG15 | FGG10 |
| Australia | T400 | T350 | T300 | T260 | T220 | T150 | - |
| Sweden | O140 | O135 | O130 | O125 | O120 | O115 | O110 |
| Hungary | OV40 | OV35 | OV30 | OV25 | OV20 | OV15 | - |
| Bulgaria | - | Vch35 | Vch30 | Vch25 | Vch20 | Vch15 | - |
| (ISO) | - | 350 | 300 | 250 | 200 | 150 | 100 |
| (COPANT) | FG400 | FG350 | FG300 | FG250 | FG200 | FG150 | FG100 |
| Netherland | - | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| Luxembourg | FGG40 | FGG35 | FGG30 | FGG25 | FGG20 | FGG15 | - |
| Austria | - | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| | | | | | | | |
| Country | Nodular cast iron |
| China | QT400-18 | QT450-10 | QT500-7 | QT600-3 | QT700-2 | QT800-2 | QT900-2 |
| Japan | FCD400 | FCD450 | FCD500 | FCD600 | FCD700 | FCD800 | - |
| America | 60-40-18 | 65-45-12 | 70-50-05 | 80-60-03 | 100-70-03 | 120-90-02 | - |
| Russia | B40 | B45 | B50 | B60 | B70 | B80 | B100 |
| Germany | GGG40 | - | GGG50 | GGG60 | GGG70 | GGG80 | - |
| Italy | GS370-17 | GS400-12 | GS500-7 | GS600-2 | GS700-2 | GS800-2 | - |
| France | FGS370-17 | FGS400-12 | FGS500-7 | FGS600-2 | FGS700-2 | FGS800-2 | - |
| England | 400/17 | 420/12 | 500/7 | 600/7 | 700/2 | 800/2 | 900/2 |
| Poland | ZS3817 | ZS4012 | ZS4505 | ZS6002 | ZS7002 | ZS8002 | ZS9002 |
| 5002 |
| |
| India | SG370/17 | SG400/12 | SG500/7 | SG600/3 | SG700/2 | SG800/2 | - |
| Romania | - | - | - | - | FGN70-3 | - | - |
| Spain | FGE38-17 | FGE42-12 | FGE50-7 | FGE60-2 | FGE70-2 | FGE80-2 | - |
| Belgium | FNG38-17 | FNG42-12 | FNG50-7 | FNG60-2 | FNG70-2 | FNG80-2 | - |
| Australia | 300-17 | 400-12 | 500-7 | 600-3 | 700-2 | 800-2 | - |
| Sweden | 0717-02 | - | 0727-02 | 0732-03 | 0737-01 | 0864-03 | - |
| Hungary | GV38 | GV40 | GV50 | GV60 | GV70 | - | - |
| Bulgaria | 380-17 | 400-12 | 450-5 | 600-2 | 700-2 | 800-2 | 900-2 |
| 500-2 |
| |
| (ISO) | 400-18 | 450-10 | 500-7 | 600-3 | 700-2 | 800-2 | 900-2 |
| (COPANT) | - | FMNP45007 | FMNP55005 | FMNP65003 | FMNP70002 | - | - |
| Finland | GRP400 | - | GRP500 | GRP600 | GRP700 | GRP800 | - |
| Netherland | GN38 | GN42 | GN50 | GN60 | GN70 | - | - |
| Luxembourg | FNG38-17 | FNG42-12 | FNG50-7 | FNG60-2 | FNG70-2 | FNG80-2 | - |
| Austria | SG38 | SG42 | SG50 | SG60 | SG70 | - | - |
Company details:
Xingtai Bossa Machinery Manufacturing Co., Ltd locat in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting spare parts for customers since 1991. It covers an area of over 40000 square meters
Our foundry, machining workshop and export department:
Sand casting since 8th May, 1991
Precoated sand casting since 8th May 1996
Lost foam casting since 8th Apr 1999
Mould opening since1999
CNC machining since 8th Sep 2001.
Aluminum die-casting since 2009
Bossa international import & export department since 2012.
Our branches filters factory from years 2000. Produce various of filters for cars and trucks.
FAQ:
1.Are you factory?
Yes, Our factory located in Xingtai High-tech development Zone.
2.What is it your mainly products?
We mainly produce Brake shoe , Brake drum, brake disc, wheel hub, casing, Axle casing, and Axle,Gear box casing, various of casting covers , supports.
All kinds of engine filters..
3.Can you produce others products?
Yes, All the cast iron products just have sample or drawings we could produce.
From 0.5kg-500kg, all the cast iron we could produce. Each year, 70000 tons cast iron products leave our factory and different city of China and overseas.
4.Do you just produce the cast iron material?
No, we could produce cast iron, alunimium, steel etc.
5.Do you have your own casting factory?
Yes, we have, that is why our price so competive in the market.
6.Do you have strictly test and inspection for the products before leave the factory?
Yes, before the products leave factory, For our quality control deparment will inspect the products.
7.How many workers in your facotry?
90 workers in our factory. 17 technicist, 2 engineer. 1 senior engineer.
Welcome inqury, We will provide 24 hours service for you.
Contact Name: Happy Zhang
Mobile: 0086-181 319 21669
BOSSA GROUP is one group company that produce various of casting &machining parts, Engine filters for trucks and tractors etc. The head office is in Xingtai city.
Xingtai Bossa Machinery Manufacturing Co., Ltd. is one branch factory of Bossa Group for casting and machining, that located in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting and machining spare parts for customers since 1991. It covers an area of over 40000 square meters and an architectural area of 12000 square meters,
Bossa Machinery mainly produce the casting & machining products for heavy duty trucks, agricultural machinery and construction machinery. The leading products: Axles, wheel hub, brake drum, brake shoe, leaf spring bracket, transmission box, cylinder block, cylinder head etc casting goods. Some times we help customer make the Axle assemble etc.
Xingtai Milestone Import & Export Trading Co., Ltd is one branch company of Bossa Group, That specialized in designing, developing producing and selling all kinds of engine filters for generators, construction machines, commercial vehicles, buses, agricultural machinery, heavy-duty trucks etc.
For our filter quality are good and instead of original ones used in the after-sales market. Such as Fleetguard Perkins, Deutz, Caterpillar, Komatsu etc.
BOSSA GROUP use advanced technology and a quality management system to guarantee the quality of products. According to ISO9001 system standard, We formulate perfect quality inspection standards and establish a scientific and strict quality guarantee system. 30% our products according to customer's drawing or sample.
BOSSA and MST are our Logo used for overseas market. All of our goods import and export through our Milestone company. We will use about 10 years and make as famous brand in the word.
We believe that quality is a life of one enterprise and service creates future.
Welcome customers all over the word to contact us.
