| Prod Model: |
ES-S-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drive Mode: |
Electric |
| Voltage: |
12-24V |
| Installation: |
Under Vehicle Floor |
| Driving Mode: |
Electric |
| Loading Capacity: |
250kg/550 Lbs |
| Test Weight: |
500kg/1100 Lbs |
| Mini Ground Clearance: |
70mm |
| Step Net Height: |
32mm |
| Platform Outer Length When Stowed: |
62mm |
| Extending/Stowing Time: |
1~2s |
| Material: |
Aluminum |
Product Description
A. INTRODUCTION

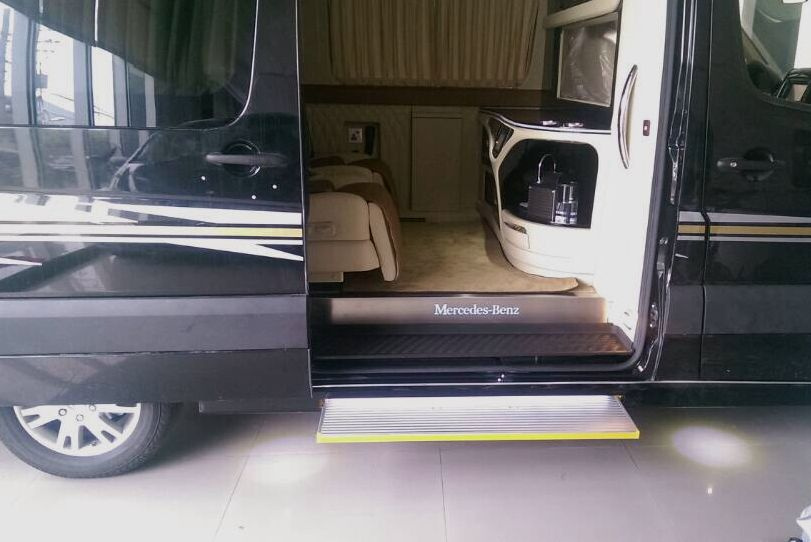

ES series electric step is a kind of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.
This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
ES is a kind of electric steps. It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.
B. DESCRIPTION:
1. Small frames, downy line, smooth platform and easy operation
2. Reduce the floor height to make entrance easy
3. Operated by the driver or attendant.
4. Rated voltage is 12V-24V
5. Waterproof connectors
6. If door is closed, this step will stow automatically
7. If there is an obstruction when extending, the step will stow automatically.
8. Can be operated fully automatically, that is to say, when door is open, this step will extend; When door is closed, this step will retract
9. There is sound and light for warning during working
10. There is interlock function, which can interlock with vehicle brake
11. Can be stowed for emergency
12. LED and LED cover are equiped as standard
13. Has been tested 100000 cycles
14. Test weight is 500kg
15. Max current during extending or stowing under normal situation: 8-10 A
C. ACCESSORY:
1. Fully auto operation: Simply swap the switch to change to a fully automatic operation on door.
2. Sensitive edge: It will stow automatically if there is a obstruction. The operator should press the switch again to extend the step.
3. Buzzer: An equipment for auto alarm
D. SAFETY FUNCTION:
1. The platform surface is the aluminum board with the function of anti-skid
2. There are sound signal for warning during step working
3. If the platform touches an obstruction when extending out, it will return back. Then the operator should press the switch again to extend the platform. That function is still available.
4. This step and the vehicle door are interlocked.
5. If the motor doesn't work, this step can be operated manually to stow the platform under
E. INSTALLATION:
1. The mounting points on the side of step frame are flexible.
2. This step can be installed at different place such as door, chassis, or other place of vehicle.
3. It is suitable for many kinds of vehicle
4. Every step has its own series number which is easy to track
F. APPLICATION:
1. Vehicle with sliding door, hinge door, electric door or plug door
2. Cars, mini public bus or taxi
3. Disabled cars
4. Ambulance
5. Minivans and Camping car
G. WARRANTY:
12 months warranty support.
| Model | Drive Mode | Voltage | Platform Size (mm) | Installation |
| ES-S-450 | Electric | 12-24V | 450*300 | under vehicle floor |
| ES-S-600 | Electric | 12-24V | 600*300 | under vehicle floor |
| ES-S-750 | Electric | 12-24V | 750*300 | under vehicle floor |
| ES-S-1000 | Electric | 12-24V | 1000*300 | under vehicle floor |
| ES-S-1200 | Electric | 12-24V | 1200*300 | under vehicle floor |
| Model | Overall size when fully extend (A*B) | Platform net size (D*C) | Loading capacity | Test weight | Working woltage | Own weight |
| ES-S-450 | 525*717.5 mm | 450*300 mm | 250 kg | 500 kg | 12-24 V | 17 kg |
| ES-S-600 | 675*717.5 mm | 600*300 mm | 250 kg | 500 kg | 12-24 V | 20 kg |
| ES-S-750 | 825*717.5 mm | 750*300 mm | 250 kg | 500 kg | 12-24 V | 23 kg |
| ES-S-1000 | 1075*717.5 mm | 1000*300 | 250 kg | 500 kg | 12-24 V | 27 kg |
| ES-S-1200 | 1275*717.5 mm | 1200*300 | 250 kg | 500 kg | 12-24 V | 31 kg |
| Model | Mini ground clearance (E) | Step net height (F) | Overall Height (G) | Overall length when stowed (H) | Platform outer length when stowed (I) |
| ES-S-450 | 70mm | 32mm | 75mm | 477.5mm | 62mm |
| ES-S-600 | 70mm | 32mm | 75mm | 477.5mm | 62mm |
| ES-S-750 | 70mm | 32mm | 75mm | 477.5mm | 62mm |
| ES-S-1000 | 70mm | 32mm | 75mm | 477.5mm | 62mm |
| ES-S-1200 | 70mm | 32mm | 75mm | 477.5mm | 62mm |
