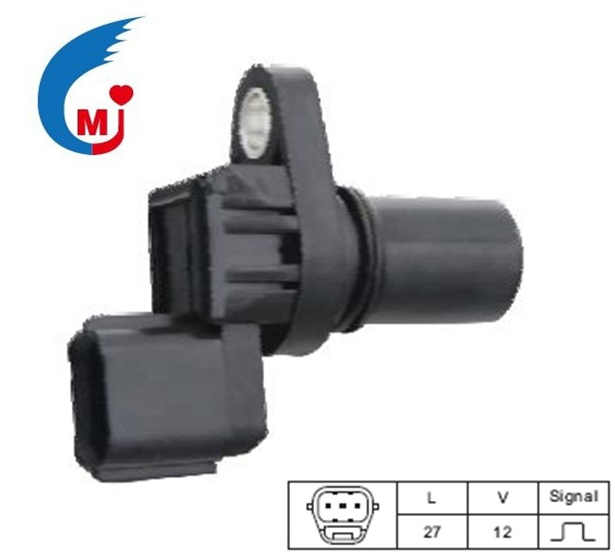

| Product Name | Camshaft Position Sensor |
| OEM | J5T23071A |
| APPLICATION | MITSUBISHI LANCER |
| Year | 2003/12- |
Q&A
Q: what about sample?
A: samples are available on request.
Q: What is your regular practice about terms of payment?
A: We'd like you to pay us by T/T,L/C,Westerm Union.
Q: What about the method of delivery?
A: About 30 days, According to different quantity and different products.
Q: What kind of quality control do you have?
A: All products have to pass strict inspection before they go out.
Function and ApplicationThe crankshaft sensor is used in automotive engine ignition system. By inducing crankshaft TDC
signal to send the Ignition timing signal to the ECU while providing the engine speed signal.
Classification
Crankshaft position sensor usually has a Hall-type , Magnetic-electric type and Photoelectric type.
Hall-type and Magnetic-electric type are more used on the vehicle. Our company mainly produces
Magnetic-electric crankshaft position sensor and Hall crankshaft position sensor.
Principle of work with Magnetic-electric crankshaft position sensor
According to the electromagnetic induction principle design, when the Signal of ferromagnetic material
wheel rotation, Signal round uniform distribution of teeth will cause cyclical changes of the air gap
between the sensor and signal round, it will make change through the coil magnetic field lines.
The same amplitude and frequency in the coil and direction of cyclical changes in the sine wave signal.
When the signal round has a missing teeth, it will produce different signal amplitude and frequency of
missing teeth, this will be deemed to be a Crankshaft TDC signal.
Principle of work with Hall crankshaft position sensor
Hall crankshaft position sensor is a magnetic field sensor based on Hall effect. When the current
perpendicular to the external magnetic field through a conductor, conductor perpendicular to the
magnetic field and current direction between the two end will appears the potential difference, this
phenomenon is called the Hall effect. The components made by the Hall effect is known as the Hall
element. The sensor made by the Hall element are known as the Hall sensor. Signal wheel rotates
evenly spaced teeth will cause the change of the magnetic field between the sensor and signal round,
also produce Hall effect, Hall output Outputs the square wave signal. When the signal round has a
missing teeth, it will outputs the different Duty cycle signal,
this will be deemed to be a Crankshaft TDC signal.
Qingdao Maggie Jin Industry Co., Ltd. Is specialized in handling the business of sale motorcycle part.
We supply products as below:
Sprocket, speedometer, brake shoe, brake pad, CDI, rectifier, flasher, ignation coil, stator, carburetor, main switch, fuel tank cap, handle lock, handle switch, fuel cock, horn, hub, clutch disc friction, chain, shock absorber, ball race, lamp series, meter fairing, mudguard, carrier, kick starter, brake padel, change padel, spoke, wheel rim, alloy wheel, fuel tank, seat assy, bush, wire harness, cylinder, piston, ring set, valve, rocker arm, cam shaft, filter, mirror, handle grip, bearing etc.
Auto parts also can be supplied: Mirrors, camshaft, filters, bearing, piston, gear, Carburetor, ignition coil, Gasket, crank shaft, rocker arm, brake system, fuel tank, flasher, motor, steering knuckle, Horn, C. V. Joint, drive shaft, oil cooler, radiator, steering rack, wiper blade, tensioner, pulley, sensors, suspension system, electronics and auto tools etc.
The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!
Give us a chance, we are sure you will not be disappointed!
