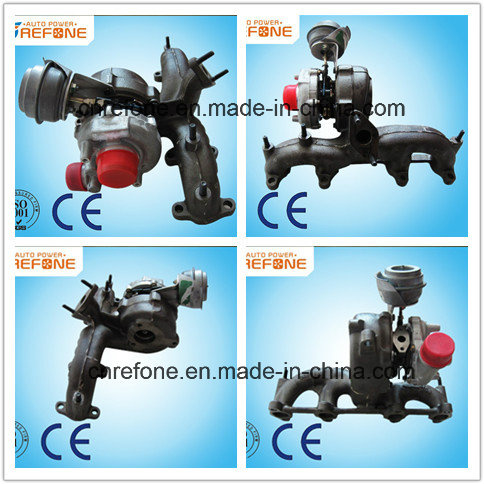

Auto parts Garrett Turbocharger GT1749V(S1) 713672-0006 713672 for Audi
| Part Number | 713672-5006S |
| Previous Version | 713672-0002, 713672-0003, 713672-0004, 713672-0005, 713672-5005S |
| OE number | 038253019C, 038253019CV500, 03G253016N, 038253019CV225 |
| Year | 2000-06 |
| Description | Audi A3, Seat Leon, Volkswagen Beetle, Golf IV |
| CHRA | 433395-0020 (433395-5020S, 433395-0040) $350.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | GT1749V(S1) |
| Engine | PD UI, ALH, AHF, AJM, AUY |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 CYL |
| KW | 81/85 |
| RPM Max | 4000 |
| Angle α (compressor housing) | 177 |
| Angle β (turbine housing) | 90 |
| Bearing Housing | 433145-0005/722282-0002 |
| Turbine Wheel | 434533-0002/434533-0039 |
| Comp. Wheel | 434812-0001/434812-0002 |
| Back plate | 700593-0006 |
| Heat Shield | 433112-0001 |
| Thrust Kit | 732248-0003/732252-0001 |
| Service Kit, Major | 732248-003/732245-0001 |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0015 |
| Settings Waste gate adjustment (pressure) | 0.224-0.229 bar |
| Settings Waste gate (lift shaft) | 0.5-4.0 mm |
| Gasket exhaust manifold | 210664 |
| Gasket (turbine outlet) | 210311 |
| Gasket (oil outlet) | 210243 |
| Gasket actuator EGR | 210313 |
Applications
2000-06 Audi A3 TDI with PD UI Engine
2000-06 Seat Leon TDI S with PD UI Engine
2000-06 Volkswagen Golf TDI with PD UI Engine
1996-03 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1997-01 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1999-05 Seat Leon 1.9 TDI Engine ALH, AHF
1999-03 Seat Toledo II 1.9 TDI Engine ALH
1999-04 Seat Toledo II 1.9 TDI Engine AHF
1997-07 Skoda Octavia I 1.9 TDI Engine ALH, AHF
1998-04 Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY
1998-04 Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY
1997-03 Volkswagen Golf IV 1.9 TDI Engine ALH, AHF
