M27*1 Universal 4324100202 8942600432 wiring loom cable Air dryer Kits
| Product name | M27*1 Universal 4324100202 8942600432 wiring loom cable Air dryer Kits |
| Description | 8942600402 8942600432 / 894 260 040 2 894 260 043 2 Cable
Used for Sliencer for Air Dryer Processing Unit |
| OEM No. | 4324070110 4324070700 4324070600 4842100170 |
| Technical Parameters | Working Volt: 24V+-4V
Heater Cut: 29°±3°
the maximum of air pressure 2NPa
Power 100W /24 V
working Temperature: -40~+80 ºC
Thread Connection M22*1.5 1/2" NPT
Rated current 0.5A
Type of relay HHC67G (JD2914)
Medium AIR
the maximum of air pressure 2NPa |
| Car make | RENAULT/DAF/MANN |
| Brand | MST |
| Efficiency | >99.8% |
| Sample/Stock | Available |
| Warranty | 5000-10000 miles |
| Feature | 100% New |
| Packing | 1. Customized
2.Neutral packing
3.MST packing |
| Payment | T/T L/C Money Gram Western Union |
| Trade Terms: | FOB CIF EXW |
| Delivery time | 20-25working days or according to the order quantity |
| Shipping port | TIANJIN SHANGHAI NINGBO or GUANGZHOU |
| MOQ |
| | AIR FILTER | OIL FILTER
FUEL FILTER |
| CAR | 500-1000 | 1000 |
| HEAVY TRUCK | 100 | 100 |
interchange fleetguard fuel water separator filter wf2073 feature :
Filter media: Donaldson oil filter adopts many kinds of materials, such as glass fiber,
wood pulp filterpaper , stainless steel sinter fiber web and stainless steel wire woven.
Nominal filtration rating: 0.01μ ~ 1000μ
Operating pressure:21bar-210bar (Hydraulic Liquid Filtration)
O-ring material: Vition, NBR
The critical fact for the proper operation of the engine is to keep the lubricating oil clean, or to ensure
no corrosive impurity inside the lubrication oil.

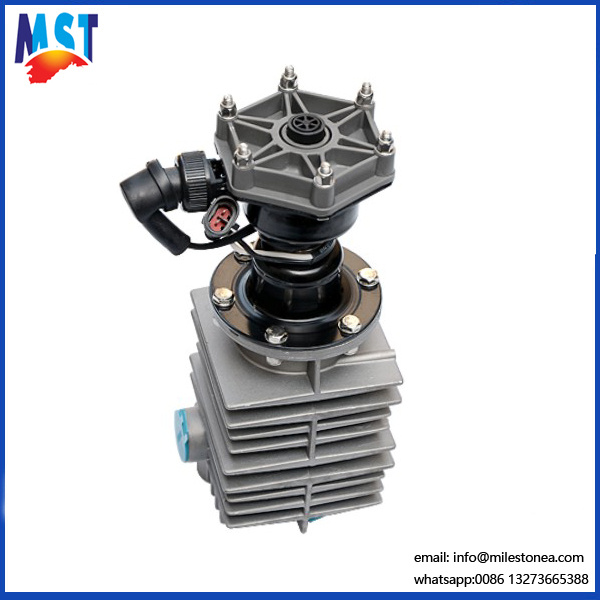

Condenser (Oil- water separator) Installation Instructions
1. Product Performance:
This product is suitable for pneumatic brake motors, by which the water, oil and other impurities in the compressed air can be pretreated (condensate separation and discharge), and significantly extends the service life of the air dryer and valve parts.
2. Working Principle:
When driving, the output of compressed air in the air compressor enters into the inner spiral channel of the condenser. The temperature declines rapidly and condensation happens. Then the oil and water in the compressed air are separated out, sinking in the liquid collecting chamber. In the meanwhile, the filtered compressed air enters into the air dryer through the intake passage.
When the automatic drain valve is powered on(when the crane brakes), the inside valve of the condenser closes the intake channel and opens the vent, expelling the water, oil and other impurities in the intercepting chamber with compressed air. When the automatic drain valve is powered off (when braking is removed), slide valve opens the intake channel and closes the vent, continuously transporting the compressed air to the air dryer.
3. Installation Method:
a. This product must be installed in the line between the air compressor and the air dryer, and is close to the air dryer.
b. The side interface of the condenser (NPT/2 or M22*1.5) must be connected to the output line cross of the air compressor. And the interface in the center of its top (NPT/2 or M22*1.5) must be connected to the air inlet of the air dryer. The condenser should be kept fixed and steady by using H-typed frame.
c. There are two ways of electrical connections, connecting the lug with wire of 14-16 dimensions.
One way: Connect the 30# end of the relay to one end of the ignition switch, the 85# end to the "HOT" (the initiator) end of the brake switch, the 86# end to the ground, the 85# end to the interface of the automatic drain valve, the other end of the automatic drain valve to the ground and keep the 87a# end unoccupied. (Warning: Relay should be packed in the waterproof area.)
The other: Connect one end of the interface of the automatic drain valve to the "HOT" (the initiator), and the other end to the ground (paralleling with the brake light)
Company Information
Established in 1990, Xingtai Milestone is a professional manufacturer and exporter that is concerned with the design, development and production of auto filter, industrial filter etc.Our products comply with international quality standards, so that they are greatly appreciated in most markets around the world.
We have over 100 employees and more than 0.5 million USD. Among the auto parts, 65% were exported worldwide. Their well-equipped facilities and excellent quality control throughout all stages of production have won customers' satisfaction. As a result of high quality and outstanding customer service, we have gained a global sales network reaching America, European, South America, Middle East and Asia etc. If you are interested, welcome to visit www.milestonea.com.
Looking forward to forming deep business relationships with you.
Packaging & Delivery &
Packaging Detail:
1. Acquiescently neutral packing
2. According to the customers' request
Delivery Detail: Within 20days after deposit
Specifications
1. Made of high quality material
2. Used to prevent against leakage
3. High efficiency and reasona
4. Lubrication system
A)Good resistance of high or low temperature
B)Good resistance of corrosion
C)We can provide various types
D)Apply to car/trucks/heavy machine/power station/acoating powder/heavy duty engine
Oil filters can help minimize the the friction generated during working between components, reduce energyconsumption and parts damages.
At the same time, they will also remove dust, prills and other impurities to protect engines from breakdown.
Quality Certificate:
ISO 9001 , TS 16949
Main products:
oil filter
fuel filter
air filter
air dryer cartridge
fuel pump
Oil-water separator assembly
filter element(Eco-friendly)
and so on.
Advantage of MST Filters:
1.High filtration efficiency
2.Long life
3.Less engine wear, reduce fuel consumption
3.Easy to install
4.Product & service innovations.
Applicable For:
1. Great filtering power, durability, single or double effected. Manufacturer, favorable and honest price, quality and service come first.
2. Keep dust and particle out of combustor, change the air in cumbustor, ensure sufficient burning.
Air filter reduce engine parts dissipation, avoid dark smoke and make engine aprts work normally.
Our Service
1. Your inquiry will be responded within 24 hours.
2. The best team are to answer all your inquiries.
3. Working time: 8:30am - 6: 00pm, Monday to Saturday (UTC+8).
4. Good after-sale service offered, please get back if you got any question.
5. Free samples as required.
6. Welcome to our company and factory!
FAQ:
1. What's Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What's kind of your packaging?
A:MST packaging or customer's requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
welcome to imquiry : Ms Happy Zhang + 0086 18131921669
