| Prod Model: |
AAE-IR3Q, AAE-IR3C, AAE-IR3H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Modle: |
Aae-IR3q/IR3c/IR3h |
| Power Supply: |
220-240V/50Hz/1pH |
| Power Consumption: |
3*1kw |
| Height Adjustment: |
0.15-2.0m |
| Time Regulation: |
1-28min |
| Operation Distance: |
0.4-0.6m |
| Drying Area: |
0.9*1.2m |
| Certification: |
CE |
| Heating Mode: |
Infrared Ray |
| Brand: |
Arch Auto Equipment |
Product Description

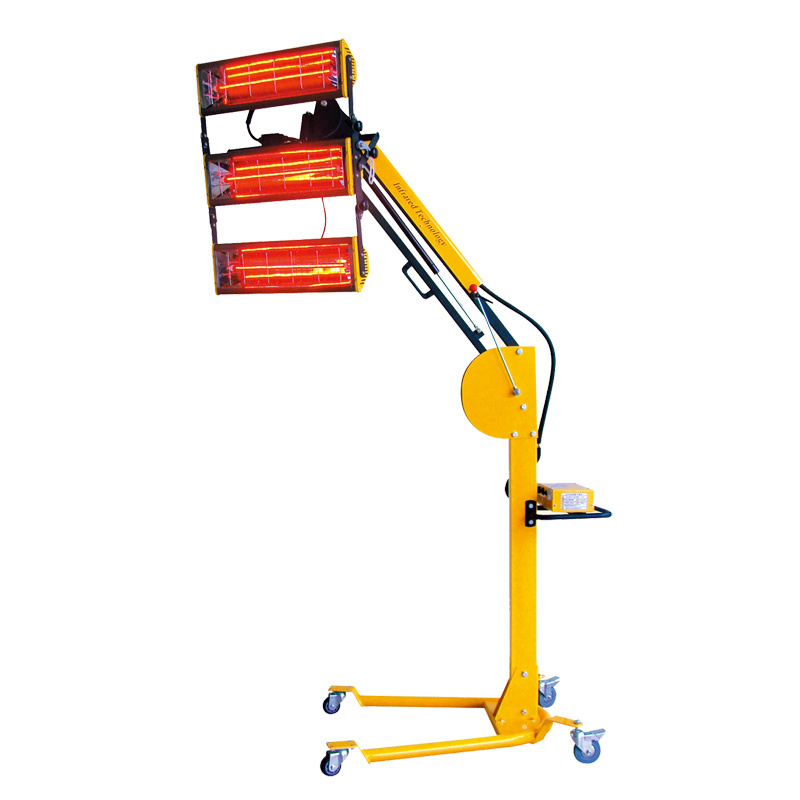

Infrared Paint Dryer
CE infrared paint dryer
New design, with ultra-low and wide chassis, could be applied to low-chassis car, the maximum working height of up to 2.1 meters, can be applied to the top station and bus body paint, is the more user-friendly equipment in the car paint modern equipment special tools;
With thermostat function, by 70% -100% power regulation, based on different paint from a suitable temperature regulation.
With timer.
Angel Adjustable lamp panel.
Independent switch of each lamp.
Distance sensor, automatically stop for over-close distance(optional).
Technical Parameter:| MODLE | AAE-IR3Q | AAE-IR3C | AAE-IR3H |
| Power Supply | 220-240V/50Hz/1ph | 220-240V/50Hz/1ph | 220-240V/50Hz/1ph |
| Power Consumption | 3 x 1kw | 3 x 1kw | 3 x 1kw |
| Height Adjustment | 0.15 – 2.0m | 0.15 – 2.0m | 0.15 – 2.0m |
| Time Regulation | 1-28min | 1-28min | 1-28min |
| Operation Distance | 0.4-0.6m | 0.4-0.6m | 0.4-0.6m |
| Drying Area | 0.9 x 1.2m | 0.9 x 1.2m | 0.9 x 1.2m |
| Lamp | quartz short wave
infrared lamp | carbon medium wave
infrared lamp | halogen short wave
infrared lamp |
| Gross Weight | 21kg; 11kg | 21kg; 11kg | 21kg; 11kg |
| Packing Size | 1060×145 x775mm740x920x150mm | 1060×145 x775mm740x920x150mm | 1060×145 x775mm740x920x150mm |
