| Prod Model: |
C9350 C9350C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Auto Maintance Equipment Brake Lathe |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Voltage: |
as Your Request |
| Color: |
as Your Request |
| CNC Or Not: |
Normal |
| Warranty Period: |
One Year After Delivery |
| Certification: |
CE, ISO |
| Condition: |
New |
Product Description

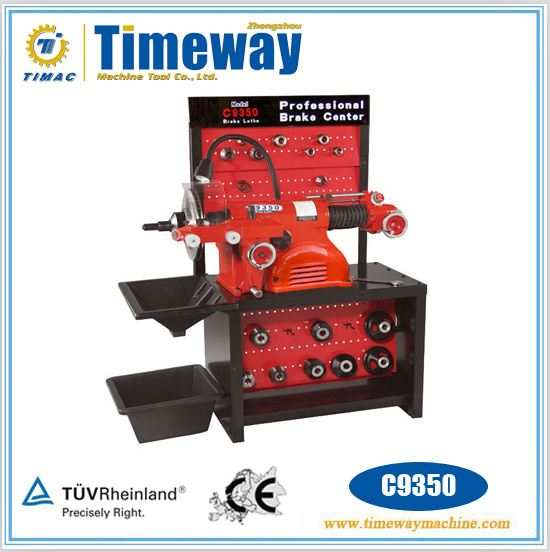

Brake Lathe (C9350)
PARE 1---Product discription
FEATURES:1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
PARAMETER:| Specification | C9350 |
| Spindle Travel | 6-7/8" (175mm) |
| Spindle speed | 70, 88, 118 rpm |
| Spindle feed speed | 0.002"-0.02"(0.05mm-0.5mm)Rev |
| Cross feed speed | 0.002"-0.02"(0.05mm-0.5mm)Rev |
| Handwheel graduations | 0.002"(0.05mm) |
| Rotor diameter | 7" -15" (180mm-381mm) |
| Rotor thickness | 1-7/8" (48mm) |
| Drum diameter | 6" -28" (152mm-711mm) |
| Drum depth | 6-7/8" (175mm) |
| Motor | 110V/220V/380V,50/60HZ |
| Gross weight | 290 kg |
| Dimension (LxWxH) | 970x920x1140mm |

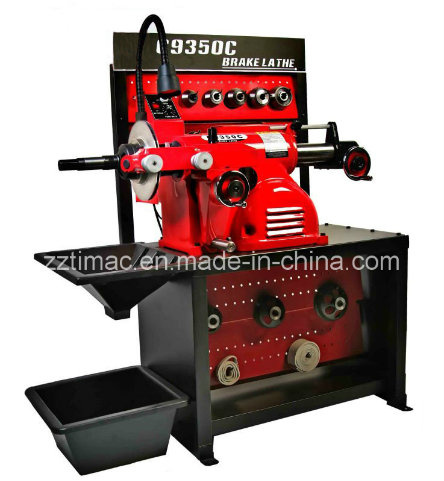

| Specification | C9350C |
| Spindle Travel | 6-7/8" (175mm) |
| Spindle speed | 70,88,118 rpm |
| Rotor diameter | 7" -15" (180mm-381mm) |
| Rotor thickness | 1-7/8" (48mm) |
| Drum diameter | 6" -28" (152mm-711mm) |
| Drum depth | 6-7/8" (175mm) |
| Motor | 110V/220V/380V,50/60HZ |
| Gross weight | 290 kg |
| Dimension (L×W×H) | 970mm ×920mm×1140mm |
PART 2--- Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer).
Part 3---Company Information
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.
Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.
Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
ZHENGZHOU TIMEWAY MACHINE TOOL Co., Ltd. is a professional machine tool supplier.
Our factory is the joint-stock enterprise, has 50 years of machine tool development, and manufacturing history, is the largest machine tool manufacturer in central China, is the "National Torch Plan Key High-tech Enterprise", "China Industry Leading Enterprise", "China Machinery Industry 500 ", China's machine tool industry" well-brand Top Ten Enterprises ".
The factory occupies more than 500 acres, built a foundry, machining, heat treatment, assembly, painting, logistics and other domestic advanced production lines, with vertical machining centers, horizontal machining center, five-sided machining centers, large boring and milling machine, large German rail grinder, Zeiss coordinate measuring instrument, gear detector and laser interferometer and other advanced equipment, instruments and a total of more than 600 sets.
Our product mainly cover conventional lathe, CNC lathe, CNC oil country lathe, vertical lathe, milling machine, CNC machining center, drilling machines, grinding machines, shaping/slotting machines, sawing machines and related accessories & tools, etc.
With many years' experience in machine production and export, as well as skilled staff members, we believe we can supply more and more quality machines to clients from different countries and regions, and can make more and more friends globally.
Our exclusive mission: Supply clients with quality machines, competitive prices and reliable services!
Our top motto: Satisfy clients, satisfy ourselves!
