Gas ignition devcie for cnc cutting machine gas flame cutter spare parts
Quick Details
Auto
Electric Gas Spark Ignitor
1) Quick Detail:
1. cutting torch ignition Device with oxy acetylene
2. Use for ignition and spark beside the flame cutting torch
3. Equipped with solenoid valve and high-voltage transformer
2)Structural Features:
1. Using high frequency discharge ignition circuit and arc temperature is higher, easy to ignite the gas.
2. Auto Gas Spark Igniter is durable because of the special craft processing.
3. The gas solenoid valve and discharge are synchronously controlled, which can reduce waste.
4.100% inspection on critical dimensions with high accuracy +/-0.01-0.005mm
3) Applications:
Use for CNC Flame Gantry Cutting Machine and the CNC Portable Cutting machine.
Beside the cutting torch, it achieves the convenience with the automation design, which could avoid using the lighter for igniting the oxy-fuel cutting torch.
4)Working Principles:

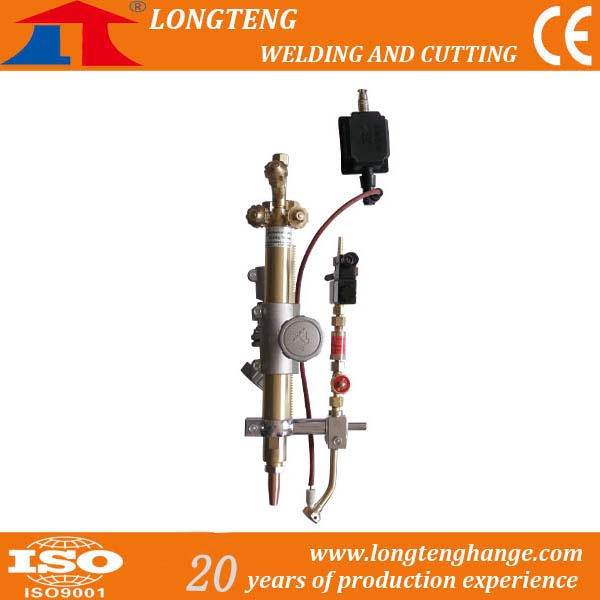

1. The Automatic Igniter is equipped with solenoid valve and high-voltage unit, which is installed on the cutting torch to adjust the distance between the cutting nozzle and ignition source.
2. When power is on, with the help of the solenoid valve the high-voltage unit will bring about fire source, which will meet with the fire hole of the cutting nozzle to realize ignition.
3. By using the ignition device, which makes it easier to work, and can improve efficiency and reduce the inefficient combustion time of the cutting nozzle.
4. The small holder has two kinds 30mm and 32mm, which according to the O. D. Of the cutting torch for the machine use.
5. The high voltage unit is the transformer, which could transform the low voltage into the high voltage, then get the spark and ignition function, when the sparkle meet the fuel gas, which will get flame to ignite the cutting tip for cutting.
Standard Configuration ( Details )
1. Holder for Cutting Torch : 1 ( 30mm or 32mm )
2. High-voltage transformer: 1 ( 220V or 24V)
3. High-voltage cable: 1 (1.5 M or 1.8 M )
4. Flashback arrestor: 1
5. Gas valve: 1
6. Solenoid valve: 1 ( AC 24V , DC 24V or AC 220V)
7. Gas inlet assembly: 1
8. Copper connector for hose : 1 ( 6mm or 8mm )
A). DC24V power supply, with safe and reliable aviation connector
B). High pressure electronic igniter is used
C). Special mini-valve control is designed
D). Acetylene back flash arrester ensures no back flash impact the main gas supply pipe
E). 1/4"-LH or 6mm connector is adopted
Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
Contact : Shirley
Place of Origin: Jiangsu, China (Mainland)
Brand Name: longteng
Model Number: LT-DH-3
Product Name: Cutting Torch Ignition Device
Current and Voltage: DC 24V/ AC 24V/ AC 220V
High Voltage CableLength: 1.5 M/2M/1.8M
Connector for Hose: 6mm or 8mm
Holder Diameter: 30mm or 32mm
Material: Brass
Application: CNC Machine
Machine Type: CNC Cutting Machine
Function: Firework Ignition System
Certification: ISO
