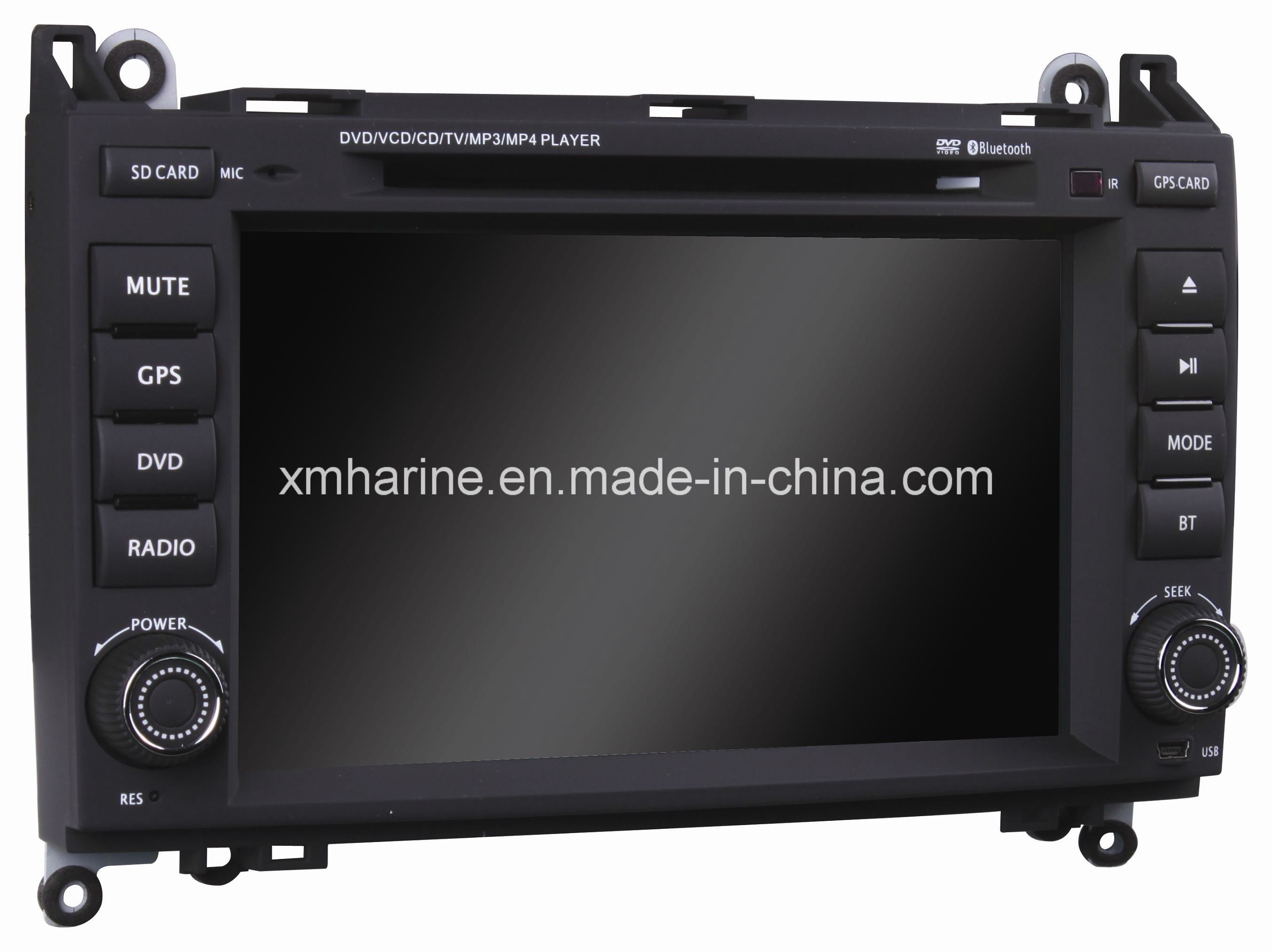

Auto DVD Car GPS Navigator for Sprinter

Combination: GPS, Bluetooth, MP3/MP4 Player, Radio, iPod

FM
Locking sensitivity  :23±8  dBμV
Distortion (1mV Input):≤2%
S/N Ratio(1mV Input):≥48dB

AM
Locking sensitivity :   36±10  dBμV
Distortion (5mV Input):≤2%
S/N Ratio(5mV Input):≥43dB

Power Supply:  DC12V
Opreating humidity:5%~ 95%RH
Opreating current: 3A (power amplifier mute),MAX 10A
Quiescent current:≤3mA

Specifications

1.Maximum Active output Power: 1KHz, 0dB output signal distortion 10% , the output power ≥20W  2.Maximum output power:input voltage 14V, the volume knob to the maximum ,output power  ≥ 180W (4 × 41W + 10W) 3.Wow and Flutter:4~8Ω 4.System set memory function: memory of the customer's personalized settings,not lost memory after power-down 5.Opreating Temperature:-20~70°C    6.Storage Temperature:-30ºC~+80ºC  1.MPV Dedicated car 8.DVD,MP3,MP4 player 9.GPS navigation, full screen touch  10.Cool 3D animation interface, 3D digital navigation system 11.Built-in Bluetooth hands-free phone 12.Support steering wheel control and CAN  13.Reversing radar /Reversing video input 14.1-CH MIC standard(2-CH optional), MIC with reverb 15.Automatic recognition MIC working state 16.Save up to 30 channels (FM:18;AM:12 )


Our company information :

Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .

With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.

Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.

We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark  approved.

Thanks and welcome for visiting


Xiamen Harine Electronic Co., Ltd

Contact Way:
mobile: 86-18120842759
tel:86-0592-5778644

Add: 4F, No.188, Yuehua Road, Huli District, Xiamen, 361006, China
Website: www.harine.net
