Yantai Empire Industry & Trade Co., Ltd. >> Auto Body Bench Truck Frame Straightening Machine

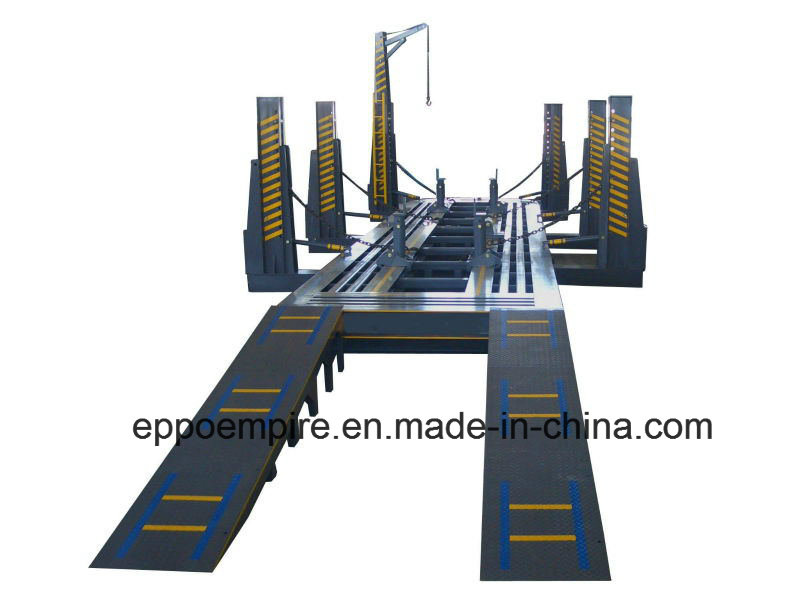

Auto Body Bench Truck Frame Straightening Machine

Auto Body Bench Truck Frame Straightening Machine
Price: US $ 5000-40000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
                                  Truck Frame Straightening Bench
Product Description

Details:

ES-Truck/BusES5009ES5010ES5011
Deck Length (Feet/Meter)30/9.1m34/10.4m38/11.6m
Deck Width (Feet/Meter)85/2.56m85/2.56m85/2.56m
Net Weight (LB/KG)35000LB/16000KG40000LB/18000KG45000LB/20000KG

Technical Data:
Max. Loading Capacity: 40000 KG
Working Platform Height (from floor): 24"/600mm
Tower Height: 2M
Tower Hydraulic Cylinder Max. Lifting Force: 245 KN
Hydraulic System MWP: 70 MPa
Inlet Air Pressure: 0.8 MPa
Tower Pulling Range: 360

Features:
1. The platform is I-beam tube.
2. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating.  The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tools accessories enable to do any misshape correction work.
4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
5. Major clamps fix the auto quickly, firmly and accurately.
6. Applying parallel-connect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.
7. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure the position of shafts and holes.
8. Special design for lifting forces; in order to improve the service life of the oil cylinder, increase the oil cylinder diameter is increased and double oil cylinder lift at the same time.

Our Services
1. A wide range of product types with many new and old customers'satisfacation.
2. Strictly in accordance with the ISO9001 and CE quality certification system
3."Integrity, Unity, Innovation, Ahead" concept --constantly improving product quality and perfecting our after-sales service.
4. Offer OEM deigns, technology training and full-life service for free.
5. Expert offered if need.

Company Information




    EUROEMPIRE, founded in 1995, has been manufacturing and selling auto frame machines/auto frame racks to more than 90 different countries. In the past eight years, with the appreciation and support from domestic and foreign clients, our corporation has grown to one of the largest frame machine manufacturers in our country. We offer a wide selection of collision repair equipment, with the fastest order to delivery time in the world, at value prices. Our experienced sales representatives are available to answer your questions, provide a prompt written quote, and/or assist in designing your quality frame machine.


    Our products have been selling to worldwide countries as Canada, U.S, Colombia, U.K, Ireland, Sweden, Poland, Finland, Hungary, Norway, The Netherlands, Deutschland, Denmark,Bolivia, Latvia, Slovenia, UAE, Saudi Arab, Malaysia, Mongolia ,South Africa ec.

    From various customers we learnt various experiences in manufacturing applications, and businesses.We have been improved much of the products and are always will to continuously improve.

FAQ
Q: When the truck frame machine can be delivered?
A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
      subject to prior sales.

Q: What is the regular color? Can I order special color which I like?
A: The regular color is Blue,  Orange, Gray.
    Yes, we can also produce machines with special color according to client's request.

Q: Can I order truck frame machine in any special size?
A:  Yes,you can.
    The size is customized, but should be suitable for the inner size of containers.

Q: I don't know how to install your truck frame machine?
A: The complex installation is already finished before delivery, what you need to
    do is finishing the simple procedures according to the manual.

Contact with me


Lynn
 Mob: +86-13854500259
Site: www.euroempire.net
Thank you



Prod Model: ES5011
Type: Frame-type
Max. Lifting Capacity: ≥5T
Certification: CE
Condition: New
