Auto Automobiles Simple Mechanical Car Parking Lift

Auto Automobiles Simple Mechanical Car Parking Lift
Price: US $ 2000-2050/Piece
Min Order: 6/Piece
Pay Type: L/C,T/T
Prod Model: JH-TP2700A
Colour: Optional
Lifting Time: 55s
Warranty Time: 1 Year
Name: Car Parking Lift
Voltage: 220V/380V
Type: Double Cylinder Hydraulic Lift
Certification: ISO
Design: Two Post
Lifting Capacity: 2700kgs
Brand: Junhv

Product Description

Car Parking lift
Product Description

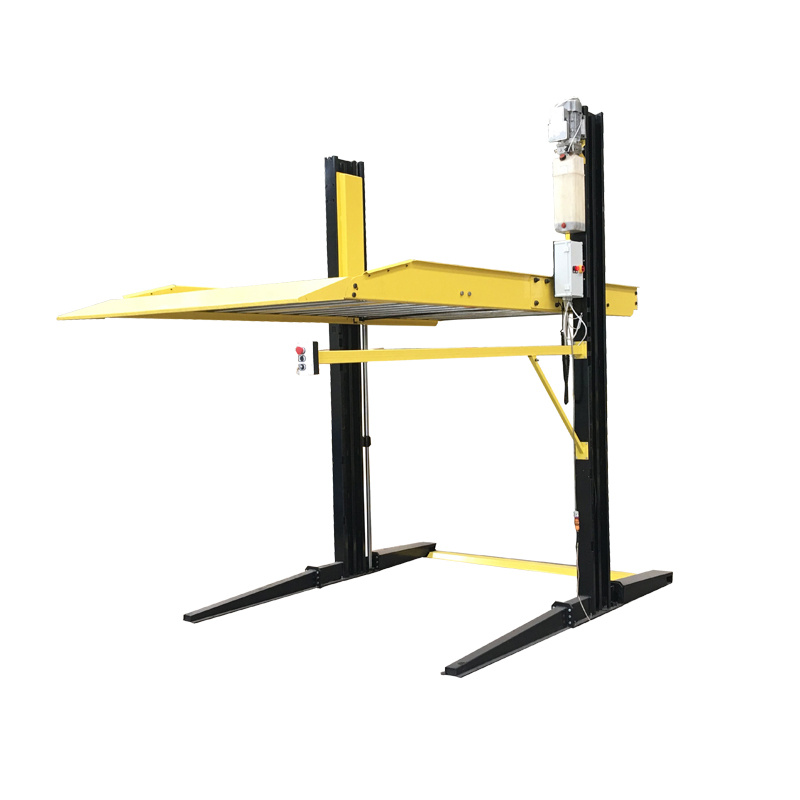

JH-TP2700A is the two post parking lift. It's a kind of valet parking equipment, suitable for both commercial and residential parking purposes. It moves only vertically, so the users have to clear the ground level to get the higher level car down. It is hydraulic driven with chains. The equipment can be used for both sedan & small SUV.
1. Low usage cost
When the platform moves down, it will be driven by gravity -- no electricity consumption for hydraulic power pack.
2. Fast and easy installation
With professional design and friendly package, it becomes simple on installation. What's more, detailed installation manual, drawing and video attached with products will help customers have easier installation work.
3. Sharing post feature
The posts could be shared when they are installed side by side, which can save cost, land space, and container space.
4. Professional packing & delivery
We have very professional packaging and logistic people to ensure our customer will get the product damage free, simple load & unload in time.
5. Hydraulic driving mode
Thanks to the hydraulic driving mode, our lift could have a faster lifting speed. Even though there is power failure, the upper car still can be retrieved by manually operating the solenoid valve.
6. Dynamic locking device
We are oering the safest parking machine in the market, the equipment is built under the CE standard and there are more than 10 safety features to ensure our clients will always get protection. Especially, there are a range of locking tabs on the posts to protect cars from accident damage.
7. Stronger structure
HydroPark 1127 enforced the critical parts that carry the weight makes the equipment extra strong.
8. Lock down button
User could press LOCK DOWN button to make platform descend a little and sit on locking tab after platform go up to top position, to make cylinder "rest" without any pressure. Therefore the hydraulic cylinder could be used for longer time.
9. Back in available for car door opening easily
The post and platform was re-designed to make back in available, which will help people a lot to open car door easily when a car is parked on the platform.


Main Features (advantages):
1. By sharing column, the total width of the product have different figure.
2. If your ceiling height is more than 4.4meters, we could use single stage cylinder to cut cost for you.
3. The standard system is powder coated with zinc cover plate, and can be galvanized for outdoor use.
4. Mechanical lock on both sides for safety.
5. Photocell sensor available for electric lock release type to check under car and avoid trespass.
6 Sound & light alarm during lowering the system. (Optional)
7. Electric protection for power over load or under voltage.
8. Auto locking system for power cut as safety features.
9. Emergency stop button.
10. Explosion relief valve make sure hydraulic safety.
11. Balance chain for platform synchronization.
12. Cylinder direct drive.
13. Overhead beam for more stability (Optional, recommend to use when install independent unit)
14. Galvanized cover plate used for water-proof, anti-rust, anti-slip.

Production Specification

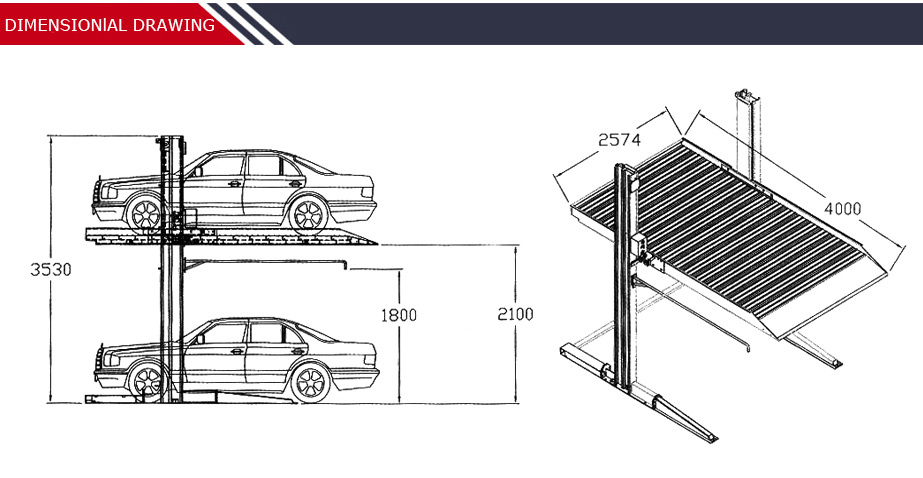

Production Design drawing

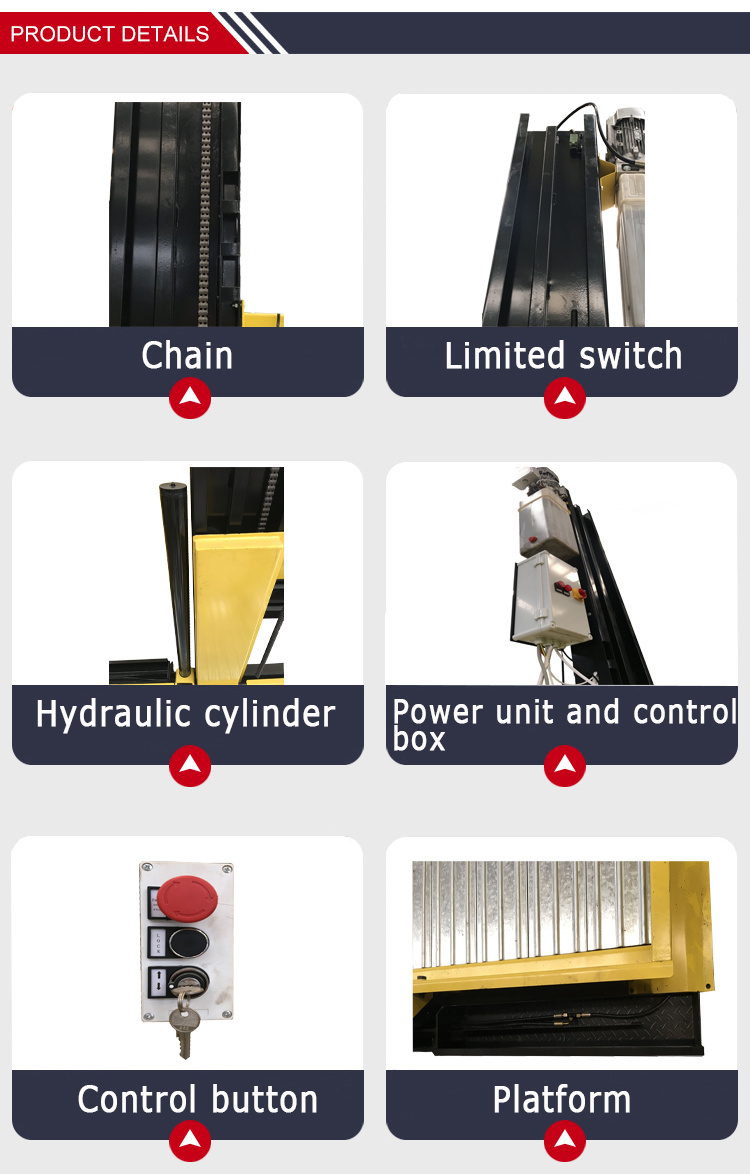

Detail picture:


Company information:

Qingdao Junhv Industry and Trade Limited Company located at Huangdao District Qingdao City,with an area of 10000 sq meters.It takes 1 hour to Qingdao airport,and 40 minutes to Qingdao seaport.
The company is professional at researching & developing,producing and exporting various car lift,including 2 post lift,4 post lift,scissor lift,and parking lift.also we sell tire machine and wheel balancer,and all products with CE certificate.
The company has most advanced production equipments,welding robot,germany laser cutting,full automatic bending machine,powder painting line,automatic drill machine.all these machine can keep the accuracy of all parts of the lifts,and and can make highest degree of adaptability during all parts.
The company sales team all woked in garage equipment business for many years and know what concern very much,easy to communicate and always think for customers.
JUNHV aims to become of of the best garage equipments manufacturer in the world and lead the Chinese garage equipments industry into modernized production and management system.
Give us one chance,we will payback you more wealth and free time !






FAQ:
Q1: You are factory or a trader?
A: We are manufacturer, we have own factory and engineer.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the
Products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 25 to 45 days after receiving your advance payment. The specific
Delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay
The sample cost and the courier cost.

Q7. How long is the warranty period?
A: Steel structure 5 years, all spare parts 1 year.

Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make
Friends with them, no matter where they come from.

Q9:Production time:
20-30 days after received the prepayment.
20' container load: 10-12 sets; 40' container load: 20-24 sets.
Junhv Auto Maintenance Equipment Co., Ltd established in '2013. Has over 5 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

Junhv strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.

We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
