We offer all size of wheel for trailer.
Surface:
White/black color
Chrome
Hot dip galvanized | RIM SIZE | PCD (MM) | CB (MM) | ET (MM) | LOAD CAPACITY (LB) |
| 10x4.5 | 4x100 | 67.5 | 0 | 800 |
| 10x3.5 | 4x100 | 68 | 0 | 800 |
| 12×4J | 4/101.6 | 71.6 | 0 | 1045 |
| 5/114.3 | 75 | 0 | 1100 |
| 13×4.5J | 4/100 | 68 | -13~0 | 1100 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~+3 | 1100 |
| 5/108 | 75 | -10~0 | 1480 |
| 5/114.3 | 75 | -10~0 | 1480 |
| 5/114.3 | 81.5 | -10~0 | 1480 |
| 13×5.5J | 4/100 | 73 | -10~0 | 1480 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~0 | 1480 |
| 5/108 | 75 | -10~0 | 1480 |
| 5/114.3 | 75 | -10~0 | 1480 |
| 5/114.3 | 81.5 | -10~0 | 1480 |
| 14x5J | 5-108 | 75 | -5~ +8 | 1870 |
| 5/120.65 | 84 | 0~14 | 1870 |
| 5-114.3 | 81/84 | -14~0 | 1870 |
| 14×5.5J OR14X6 | 5/114.3 | 81/84 | 0 | 1870 |
| 4/100 | 75 | -10~22 | 1870 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~18 | 1870 |
| 4/139.7 | 108.7 | -10~18 | 1870 |
| 5/120.65 | 84 | -4~20 | 1870 |
| 5/108 | 75 | -10~22 | 1870 |
| 5/114.3 | 81/84 | -10~18 | 1870 |
| 5-139.7 | 108.7 | -17~ +15 | 1870 |
| 5-160 | 125 | -10~ +30 | |
| 6/139.7 | 108.7 | -10~18 | 1870 |
| 6/139.7 | 110 | -10~18 | 1870 |
| 14*7 | 4-100 | 75 | +4~ +37 | 1870 |
| 5-114.3 | 84 | -10~ +23 | 1870 |
| 5-139.7 | 108.7 | -3~ +30 | 1870 |
| 6-139.7 | 108.7 | -3~ +30 | 1870 |
| 15×5J | 5/114.3 | 81/84 | -10~10 | 2050 |
| 5/127 | 81/84 | -10~10 | 2050 |
| 15×6J | 5/114.3 | 84 | -10~10 | 2150 |
| 5-120.65 | 84 | -22~ +8 | 2150 |
| 5/127 | 84 | -10~10 | 2150 |
| 5/139.7 | 108.8 | -10~10 | 2150 |
| 5/139.7 | 110 | -10~10 | 2150 |
| 6/139.7 | 108.8 | -10~10 | 2600 |
| 6/139.7 | 110 | -10~10 | 2600 |
| 15×7J | 5/114.3 | 84/75/71.6 | -15~15 | 2600 |
| 5/120.65 | 84 | -15~15 | 2600 |
| 5/127 | 84 | -15~15 | 2600 |
| 5/139.7 | 108 | -15~15 | 2600 |
| 5/139.7 | 110 | -15~15 | 2600 |
| 6/139.7 | 108 | -15~15 | 2600 |
| 6/139.7 | 110.5 | -15~15 | 2600 |
| 8x165.1 | 130.8 | -15~15 | |
| 15×8J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15x8 | 8x165.1 | 130.8 | -15~15 | |
| 15×9J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15*10 or 15X12 | 5-114.3 | 84/75/71.6 | -46~ +58 | |
| 5-120.65 | 84 | -46~ +58 | |
| 5-139.7 | 108.7/110 | -46~ +58 | |
| 5-139.7 | 108.7/110 | -46~ +58 | |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6-139.7 | 108.7/110 | -46~ +58 | |
| 15x10 | 8x165.1 | 130.8 | -32 | |
| 16X5.5 | 5X165.1 | 110.8 | -3~ +20 | |
| 16×6J | 5-114.3 | 84 | -17~ +6 | |
| 5-150 | 112 | 0~ +10 | |
| 5-139.7 | 108.7/110 | -17~ +10 | |
| 5-165 | 124 | 0~ +15 | |
| 6/139.7 | 108.7 | 0 | 3200 |
| 6-114.3 | 84 | -17~ +6 | |
| 6/165.1 | 130.8 | 0 | 3200 |
| 8/165.1 | 124 | 0 | 3500 |
| 8/165.1 | 125.7 | 0 | 3500 |
| 8/165.1 | 130.8 | 0 | 3500 |
| 16×7J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75/84 | -12~ +35 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3200 |
| 5/150 | 112 | 0~5 | 3200 |
| 5/165.1 | 125 | 0~8 | 3200 |
| 6/139.7 | 108.7 | -25~15 | 3200 |
| 6/139.7 | 110.1 | -28~0 | 3200 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×8J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -25~15 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×10J | 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -35~30 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 130.8 | -25~15 | 3500 |
| 17X8 | 6X139.7 | 108.7 | -6 | 3200 |
| 17x8 | 5x127 | 84 | 0 | 3200 |
| 17x8 | 5x139.7 | 108.7or110 | 0 | 3200 |

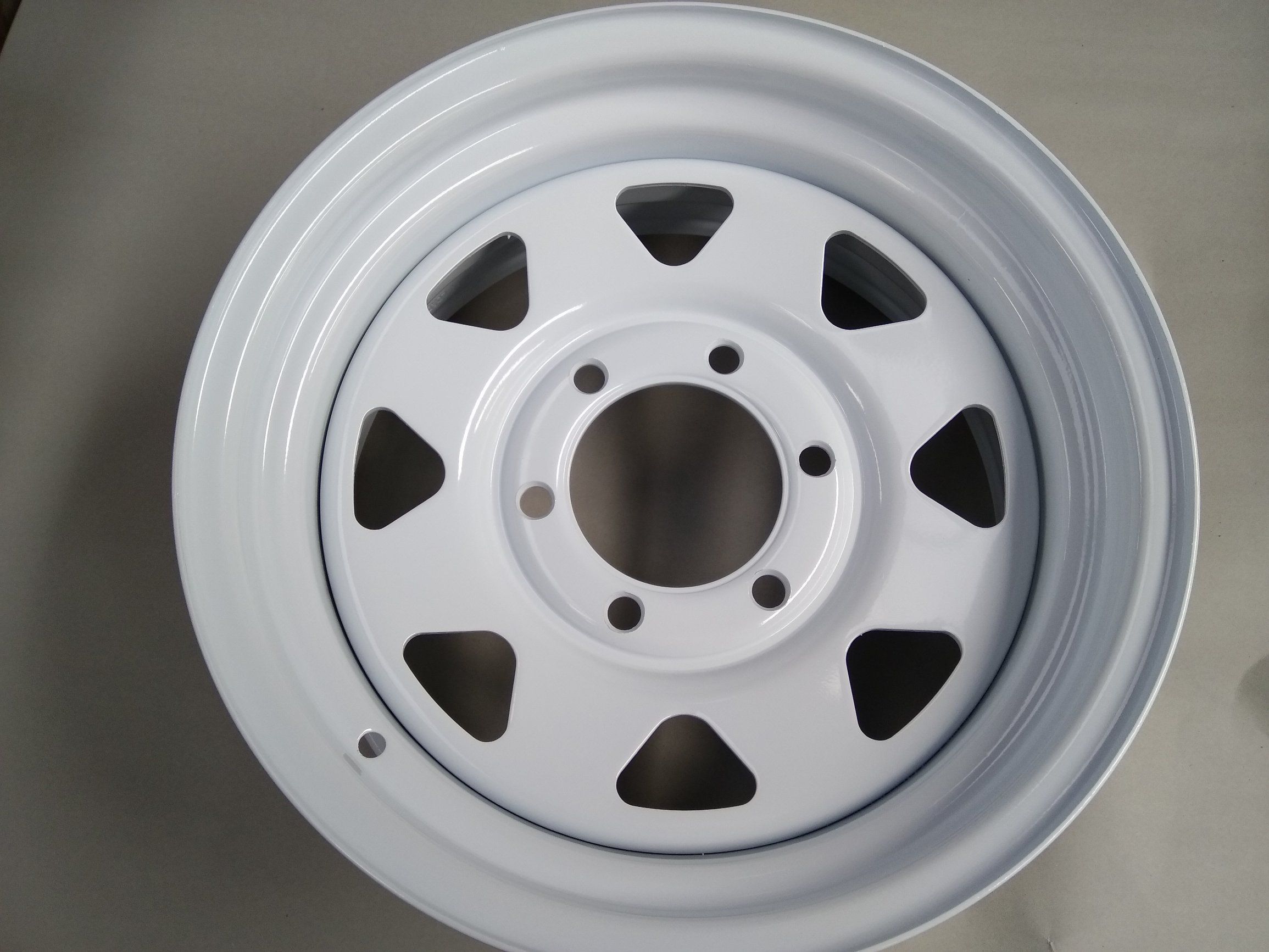

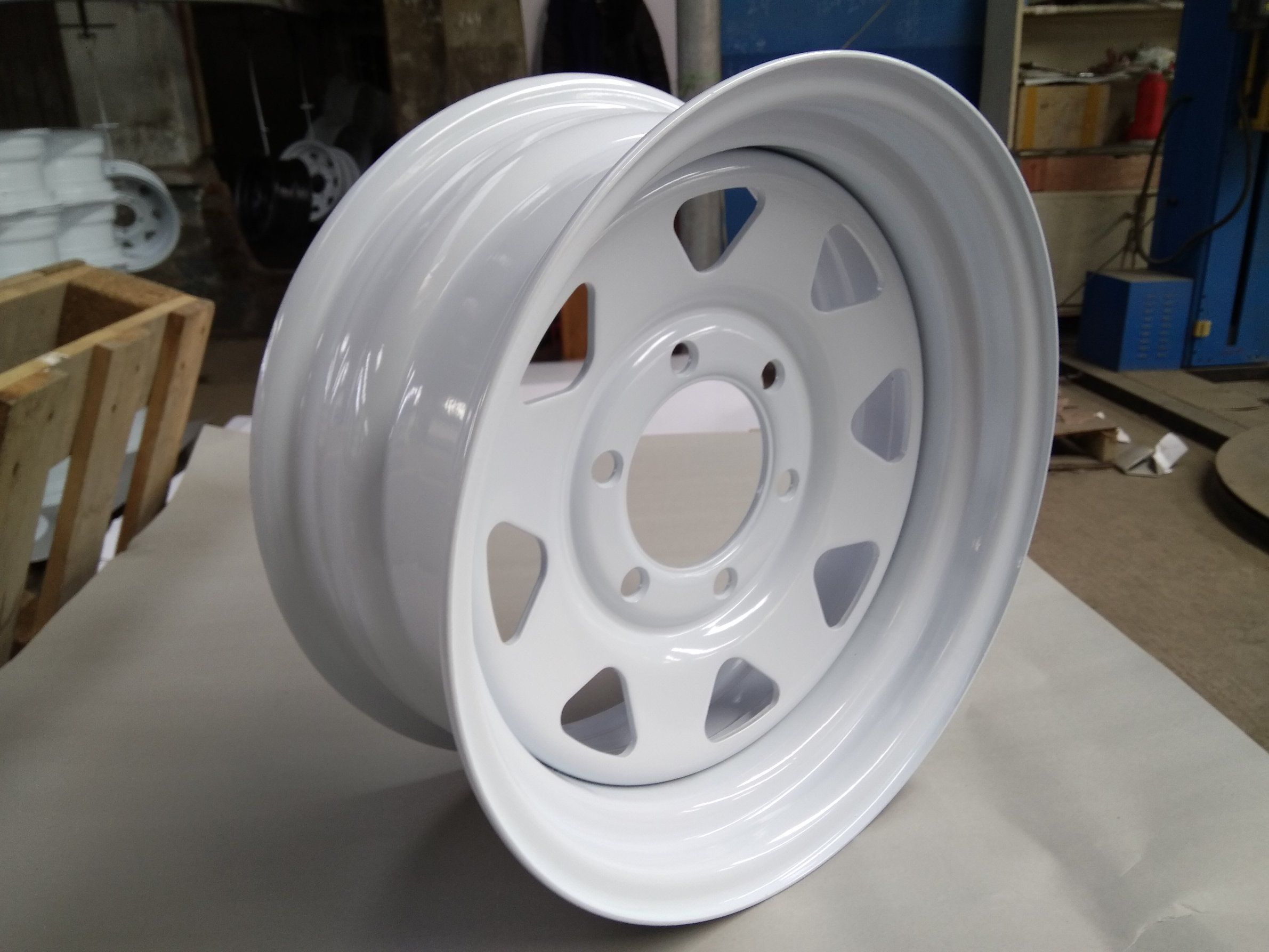

1.PictureWhite color powder coating

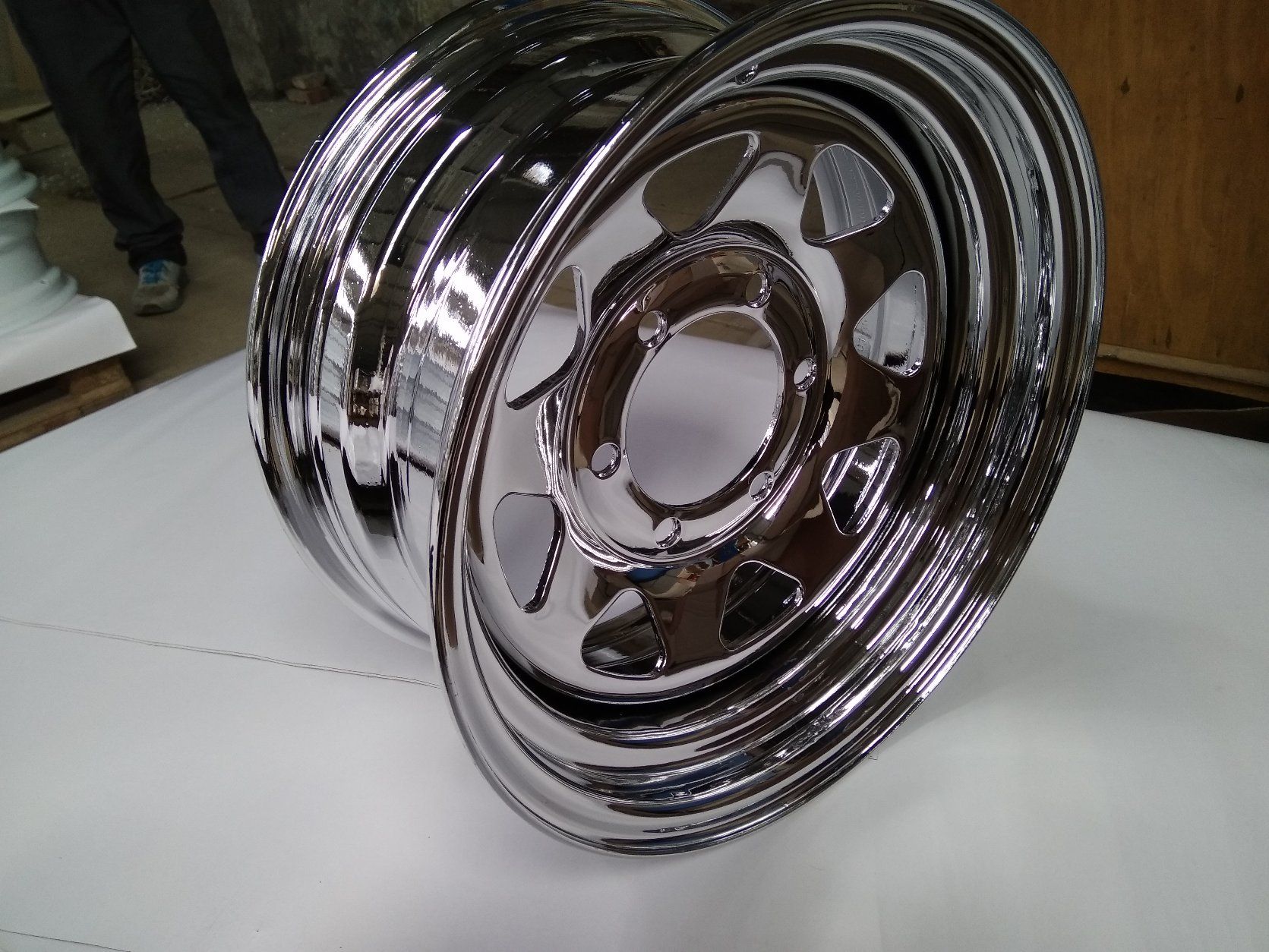

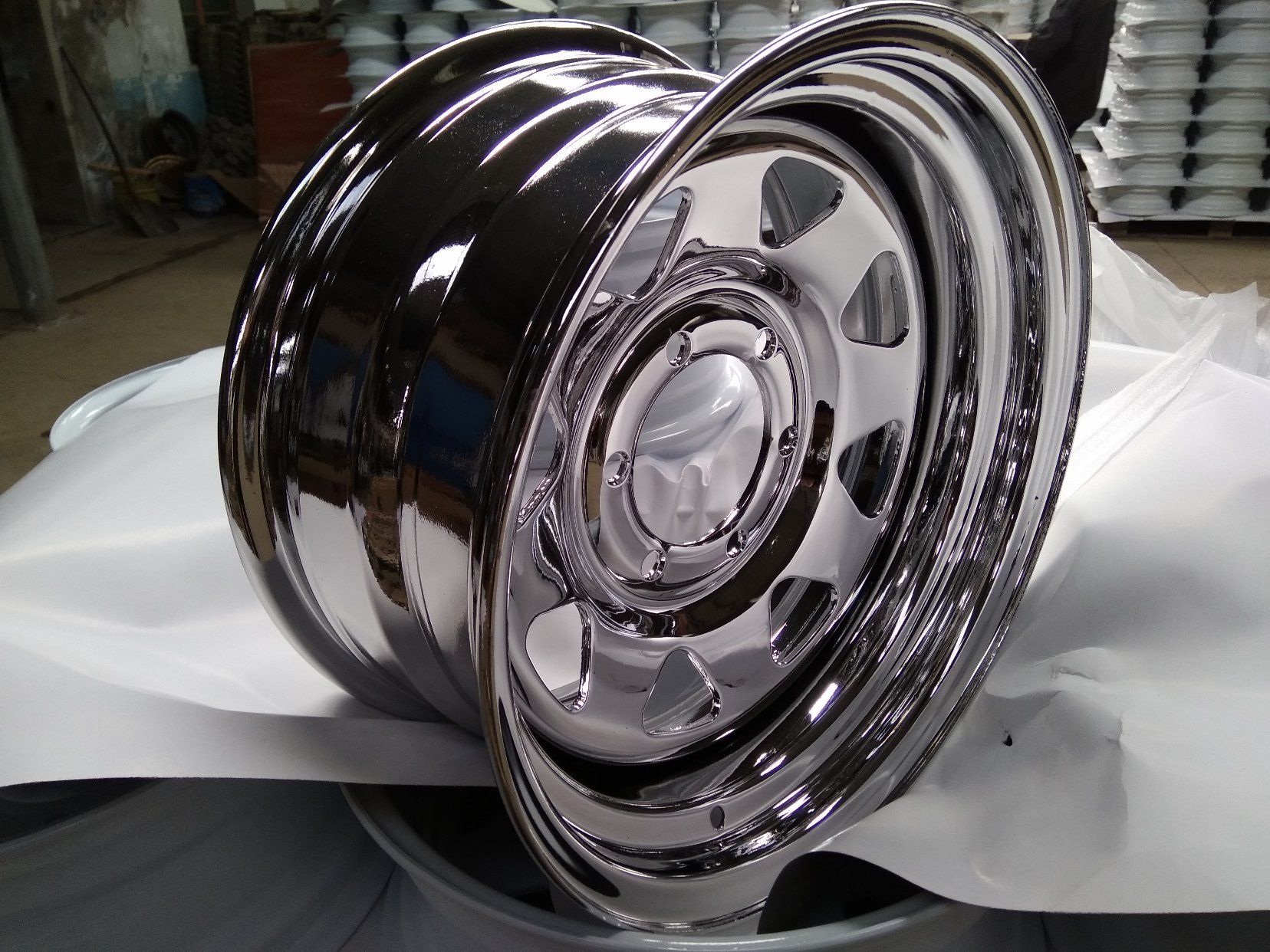

Chrome wheel

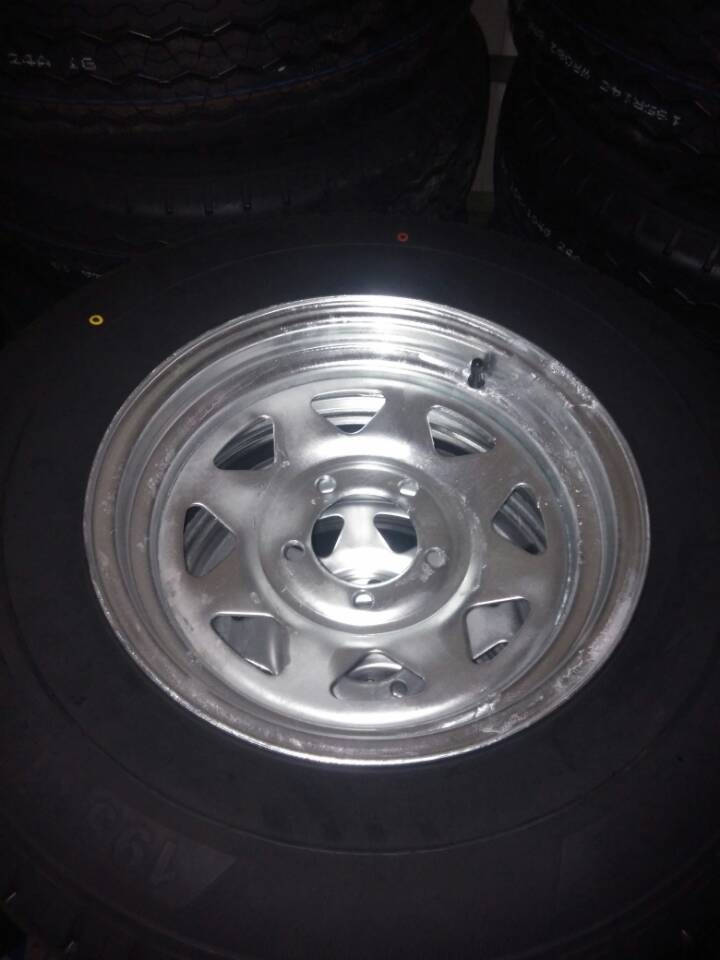

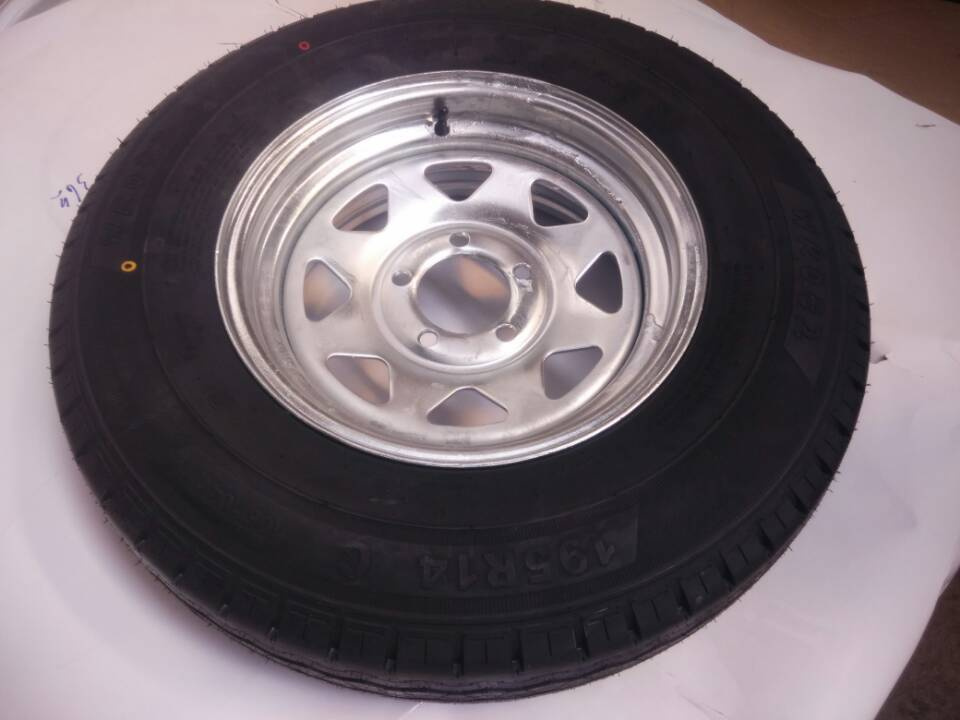

HDG(hot dip galvanized wheel)
Please contact me if you don't find the wheel you need.
