Asymmetric Column Clear Floor Lift -2 Post Car Lift (ORL-32CB)

Name: Asymmetric Column Clear Floor Lift -2 Post Car Lift (ORL-32CB)
Brand: ibuyautoparts.com
SKU: 749170105
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ORL-32CB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Lifting Height:	1900mm
Min Height:	90mm
Certification:	ISO
Design:	Two Post
Lifting Capacity:	4000kgs
Brand:	Orient

Product Description

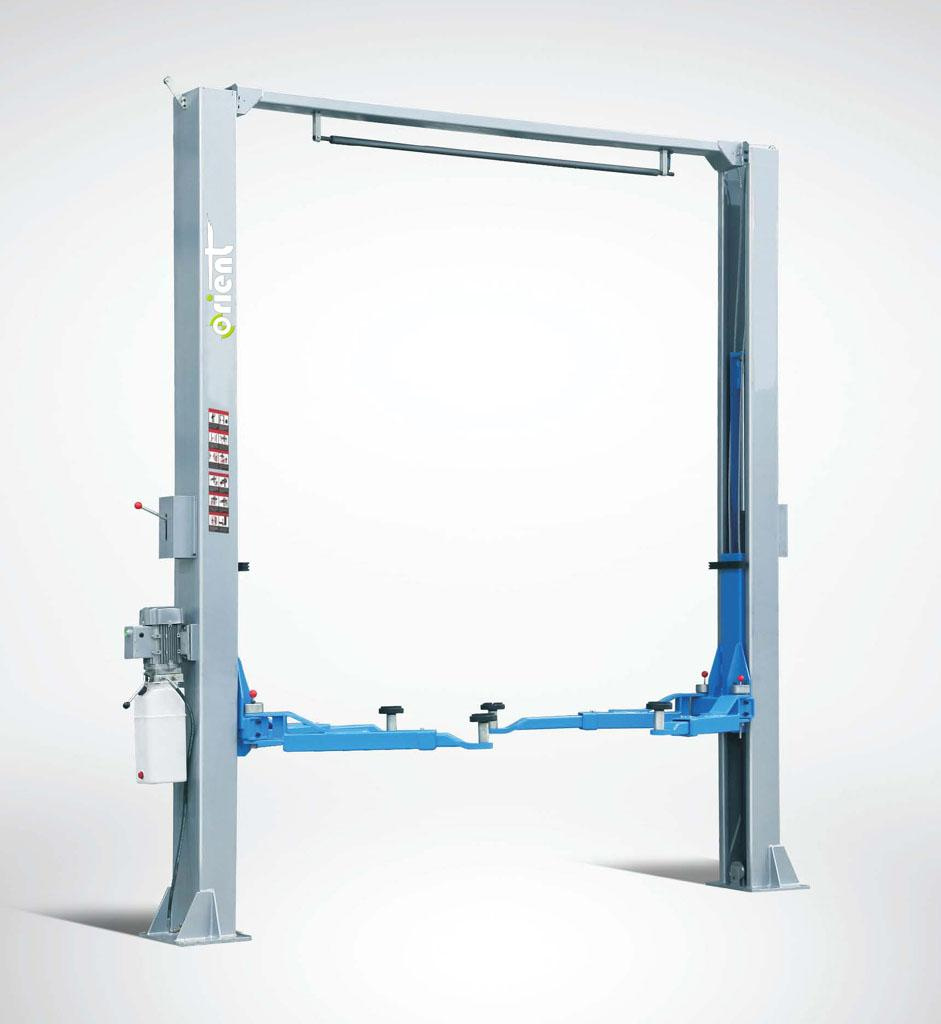

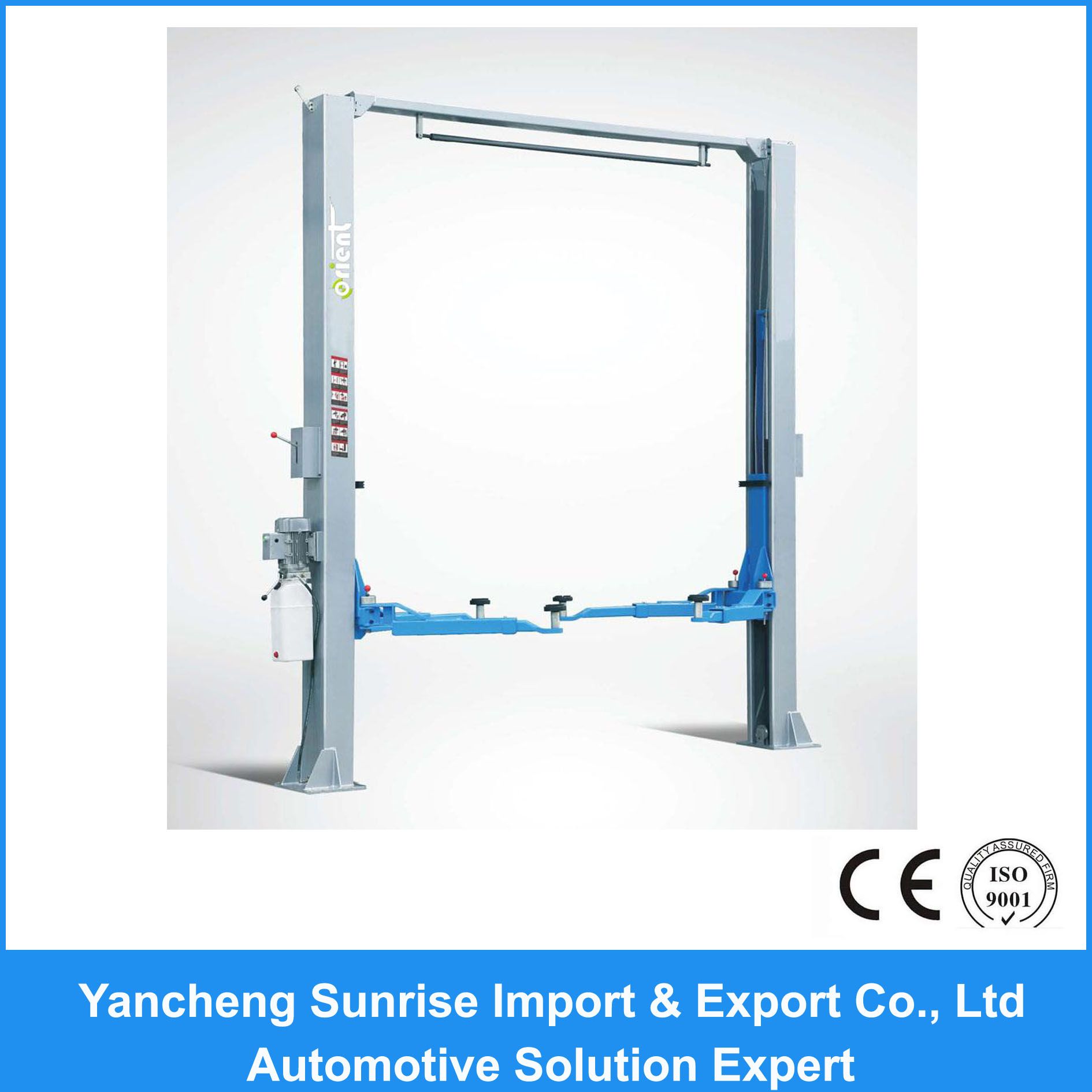

Gate style 2 post lift ORL-32CB

FEATURES:

*Clear floor design makes , operator easy working under beneath the vehicles.
*By two cylinder ,plate and wire rope chain balance system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always adjust the rate of decline.
*Asymmetric column allows wider drive through clearance.
*Manual lock release from one side,more convenient to use.
*Two stages arm design,a larger adjustment range,for different vehicle chassis.
*Retractable tray with three screw-up design,adjustment range 85-115mm.
With 24Vlimit switch.
*Rubber pad door-opening protection.
*Screw type up adjustment adapter.Truck adapters can optional.
*Standard guard rail Toe protection.
*Limit the arm lock with 360°circumferential teeth,increase tensile strength side,a more stable and reliable.
*115% dynamic and 150% static loading tested.
*CE approved.

Overall Dimensions:

Lifting Capacity	3200kg/4000kg(OPTIONAL)
Max.Lifting Height	1900mm
Minimum Height	90mm
Lifting Time	50s
Overall Height	3780mm
Overall Width	3420mm
Width Between Columns	2820mm
Motor Power	2.2kw
power supply	220V/380V/415V
Packing Size	3780530770mm

Yancheng Sunrise Import & Export Co., Ltd ( here we called "Sunrise")specialized in automotive service equipment and car bodyshop equipments including:

*Spray Booth,

*Tyre Changer,

*Wheel Balancer,

*Car Lift,

*3D Wheel aligner

*Reel Hose

*Shortwave Infrared Curing system

Especially for 3D WHEEL ALIGNMENT, this is our company new research products. Since we promot this product to market. Many clients like them and we exports hudreds ever year.

The success of Sunrise comes from a fully integrated system of concentrated ongoing product R&D, specialized industrial design, standardized manufacturing, strict quality controlling, positive and effective market promotion.

As a pioneer for spray booth business in global market, is synonymous with innovation in spray booth development, providing solutions that deliver energy-savings, higher productivity, enhanced performance and, ultimately, increased profitability for the customers.

We promote "QiLi" brand products for domestic and "Orient" brand for international market, we concern on good reputation of our name, thus we always pay 100% attention to our quality and service.

Sunrise exports most of its product worldwide. Customer bases exist in North America, Europe, Africa, Australia, New Zealand, Asia, the Far East, and Central and South American. We will continue to develop our skill and types to ensure its products meet current and future demands from our customers around the world. We sincerely invite you for any cooperation for win-win business.
