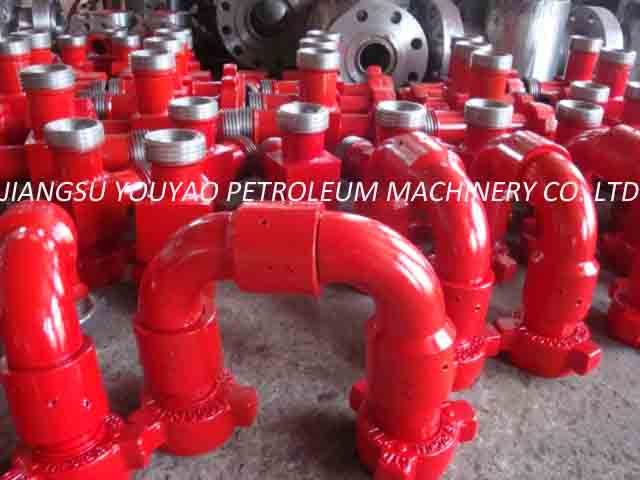

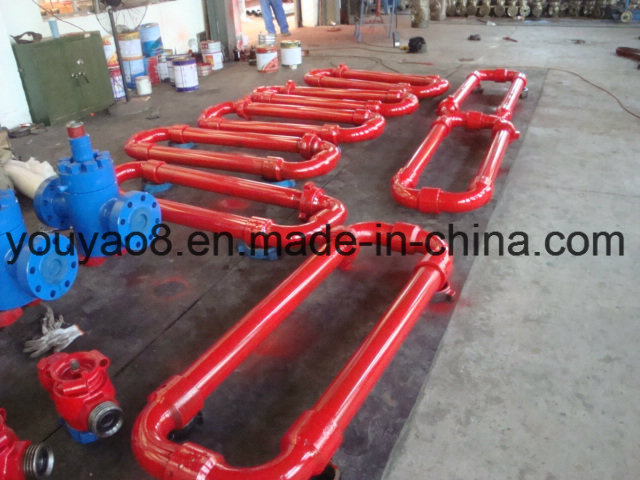

API 16c Chiksan Swivel Joint

Name: API 16c Chiksan Swivel Joint
Brand: ibuyautoparts.com
SKU: 832999975
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 800-900/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

High pressure swivel joint is made of high-strength alloy steel and through heat treatment, so that the rated working pressure intensity is ensured and the service life is prolonged. Our swivel joint is equipped with a steel ball in hardened orbit, so it can rotate flexibly. Both ends can be connected with LP internal threads or unions, applicable to various ways of pipe installation. In this case, the rated working pressure intensity is ensured and the service life is prolonged. Our swivel joint falls into two types: Long radius and short radius. Various models of swivel joints and their repair kits are available, suitable for normal or low temperature, or H2S environments, with sizes ranging from 1" to 4" and rated WP ranging from 2000psi-20000psi (14MPa-140MPa). Our products are available in the models of style 20, style 30, style 40, style 50, style 60, style 70, style 80, style 10, and style 100.

1. Vertical structure: could stand on deck with smaller occupation.
2. Proper match: it is assembly of choke manifold and two sets of kill line, fabricated with two layers of drilling floor for easy operation
3. Dull function available with full function of the horizontal model manifold. The hard supporting frame is totally enclosed and corrosion prevention.
4. Easy assembly and easy transportation.

Style 20
Size (in)	End Connections	CWP (psi)	Length (mm)	Wt (Kg)
Size (in)	End Connections	CWP (psi)	A	Wt (Kg)
1.5″	Threaded	10000	166	3.6
1.5″	1502(M× F)	15000	276	12
2″	Threaded	10000	183	6.2
	1502(M× F)	15000	283	16.8
	1502(F× F)	15000	229	9.1
3″	1502(M× F)	15000	320	23.8
4″	1002(M× F)	10000	359	33.6

Prod Model:	YSJ-1

Jianhu County YOUYAO Valve Factory is a specialized manufacturer of API Spec 6A valves and Wellhead equipments.

We have passed an International Quality System certification of ISO 9001, and we have obtained API 6A Monogram Certificates, also have become an authorized licensee of API monogram.

We have many qualified engineers in Valves, wellhead equipment, casing & tubing heads, spool, tees & crosses, etc. Petroleum equipment. Which are strictly in accordance with ISO standards, API standards, ANSI standards, GB National standards and SY speciality standards, and used widely in petroleum, chemical.

We have kinds of heating and machining production equipments along with complete inspection measurement devices. We can design and fabricate products, Our perfect technology will bring you best benefit. We have advanced process equipments and powerful technology capability. We have a good credit standing for contract implementation, and we always keep a business purpose to enhance managements, insure quality, set up famous brand and become top-ranking.
