ANSI Standard Designed Heavy Duty 2 Post Lift (212C)
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

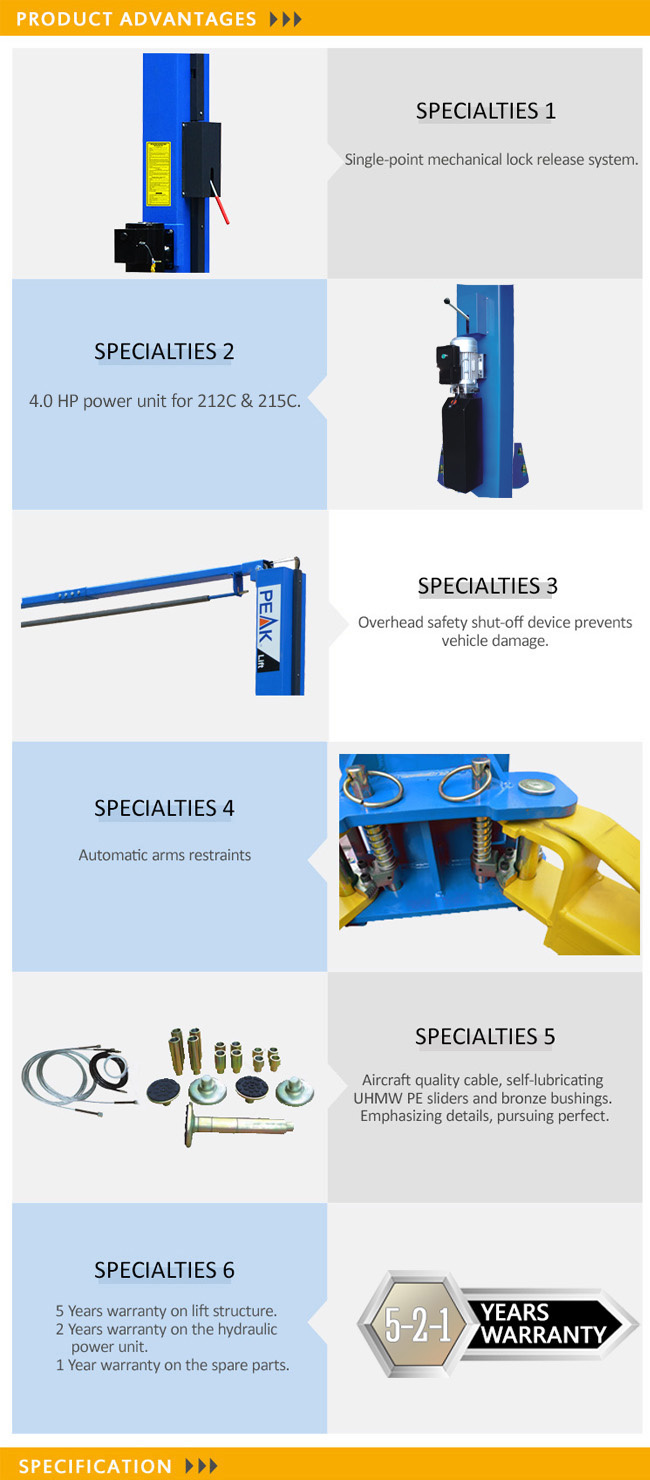

212C ANSI Standard Designed Heavy Duty 2 Post LiftFeature • 12,000 Lbs Capacity• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.• 3/8" aircraft quality cable is used for synchronization.• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.• Clearfloor design, provide unobstructed floor space.• Overhead safety shutoff device.• Adjustable three height setting accommodate varying service celing heights(The special low setting height 150" need to choose the optional cables)•Automatic arms restraints.• Hydraulic power unit.•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
212C ANSI Standard Designed Heavy Duty 2 Post Lift| Model | 212C |
| Style | Planer-type Direct-drived |
| Lifting Capacity | 5.5T (12,000lbs) |
| Lifting Time | 55 Seconds |

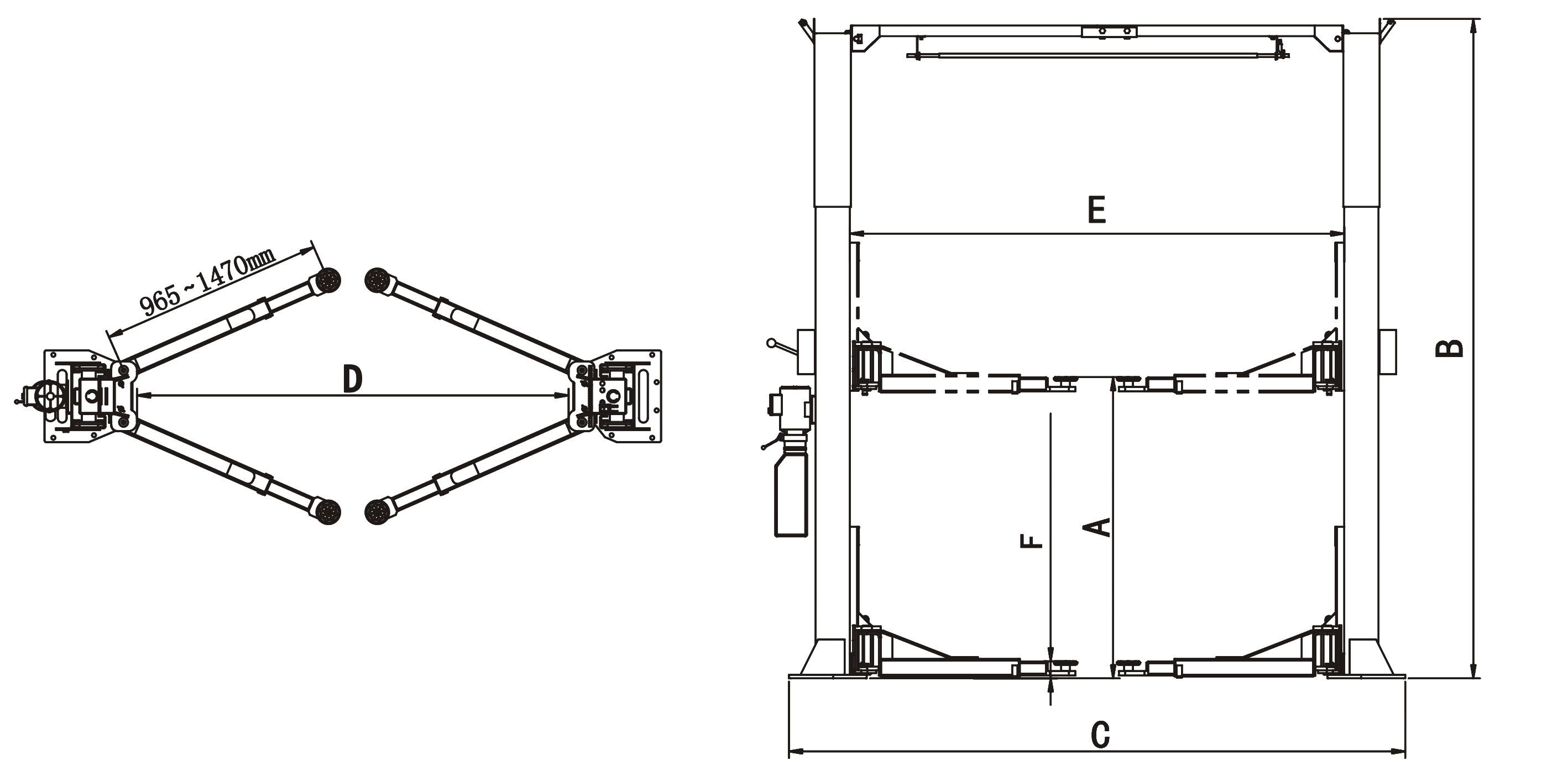

| A | Lifting Height | 1842-2071mm (72 1/2"-81 1/2") |
| B | Overall Height | 3812/4192/4497mm(150"/ 165" / 177") |
| C | Overall Width | 3829mm(150 3/4") |
| D | Drive-Thru Clearance | 2787mm(109 3/4") |
| E | Width Between Columns | 3137mm(123 1/2") |
| F | Minimum Pad Height | 115mm(4 1/2") |
| Gross Weight | 966Kg (2,129 lbs) |
| Motor | 4.0HP |
| Packing Dimension | 2890 x 540 x 765mm |
| QTY of Container | 18 Units/20'GP |
| 36 Units/40'GP |
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
| Prod Model: |
212C |
| Lifting Time: |
55 Seconds |
| Lifting Height: |
1842-2071mm (72 1/2"-81 1/2") |
| Motor: |
4.0HP |
| Gross Weight: |
966kg (2,129 Lbs) |
| Surface Treatment: |
Spray-Paint |
| Color: |
Blue |
| Type: |
Double Cylinder Hydraulic Lift |
| Certification: |
CE |
| Design: |
Two Post |
| Lifting Capacity: |
5.5t |
| Brand: |
Peak |
PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

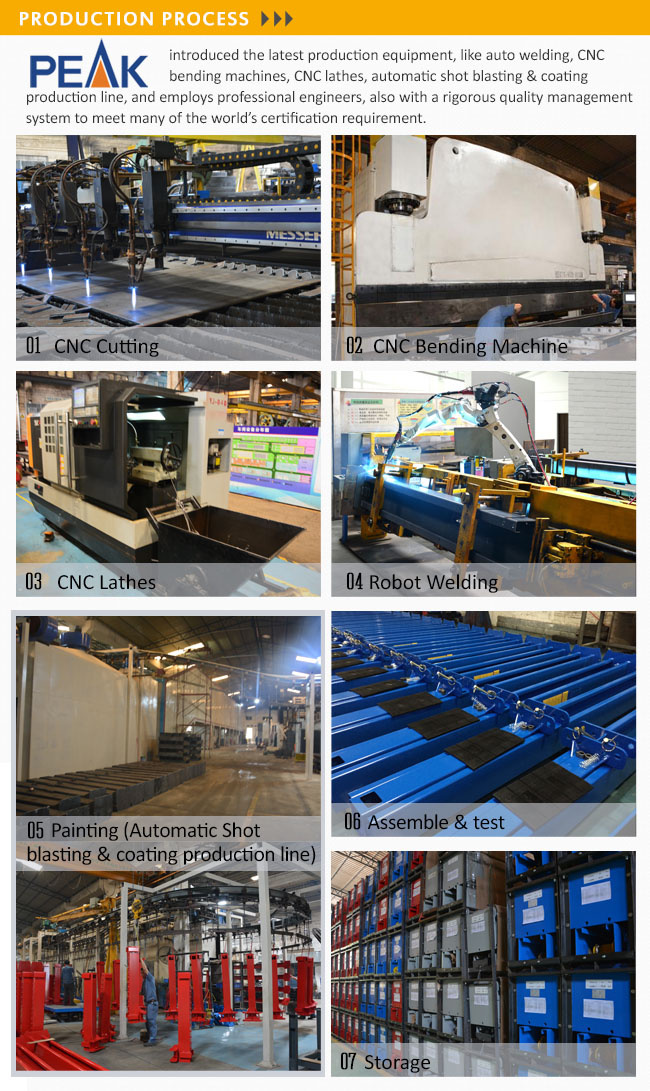

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.
At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.
PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.
Each PEAK lift is designed for customers who seek the world-class products!
