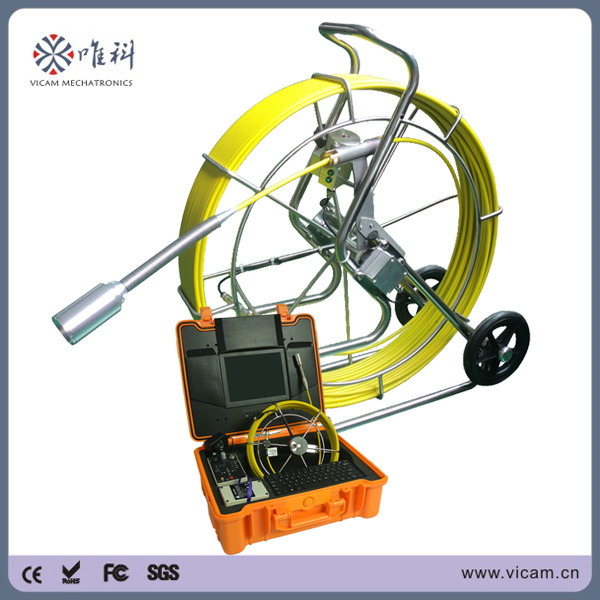

Amphibious Pipe Camera, Inspection Camera, and Pipe Inspection System
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Amphibious Pipe Camera, Inspection Camera, and Pipe Inspection System 1 Camera Head 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)

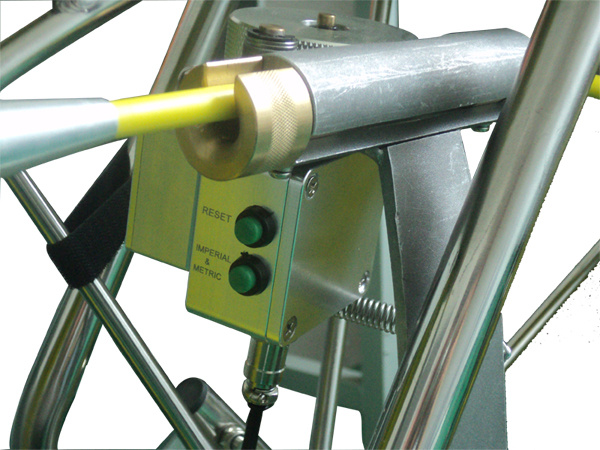

2 Havey-Duty Cable Reel
* New design Counter device on the cable reel error rate less than 0.1% * Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)3 Portable Stainless steel bullet Camera with reel* Camera head size Φ23 x 45mm for pipe Φ 25mm to 80mm
* Fiberglass Φ5.2mm rod push cable reel 20m (30m, 40m optional)
* Reel size 310mm x 110mm
4 Monitor
*10 inch HD LED monitor
* Display model: 4:3
* Visible angle: horizontal & vertically 170°
* Power supply DC 12V
5 DVR Control Box* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAH)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
6 Unit control carrying case
* ABS engineering carrying case size: 520mm x 435mm x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximumOur Service:1. Your any inquiries will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Distributoership are offered for your unique design and some our current models.
4. Best Quality & Best Service with competitive price.
5. All regular products can give 2 years warranty. Our Company:1. We are China leading and professional pipe inspection camera Manufacturer.
2. Our product quality policy is that each shipment with 2 years guarantee and 7 days unconditional returns.3. Positive team with full experiences in product specification and producing.Application:1. WATER SUPPLY
2. WASTE WATER
3. ELECTRICAL AIR CONDITIONER
4. CABLE DUCTING
5. DUCTED VACCUM SYSTEMS
6. PLUMBING
7. IN BUILDING Thanks for scanning our product, your inquiry or feedback will be highly appreciated.
Looking forward to supporting you!
If you want to know more detail information about us, welcome to visit our company website:
http://wwwvicam.cn/
|
CCD Aluminum camera head data |
|
camera size |
Φ50mm×89mm |
|
camera housing material |
aluminum |
|
camera window |
sapphire glass |
|
connecting type |
golden pins slip-ring connection |
|
sensor |
1/3" color CCD |
|
field of view |
90° |
|
resolution |
PAL:720H×576V NTSC: 720H×480V; |
|
horizontal definition |
420TVL |
|
picture |
Self-leveling |
|
S/N rate |
>48dB(AOC on) |
|
electronic shutter |
1/50(1/60) - 1/100000 s |
|
sensitivity |
0.01Lux |
|
video output |
1.0 Vp-p / 75Ω |
|
lighting |
18 high intensity white LED, brightness adjustable |
|
waterproof |
yes, class IP68 |
|
working voltage |
DC 12V |
|
working current |
63mA Max (LED Max: 120mA) |
|
operating temperature |
-10ºC~60ºC |
| Prod Model: |
V10-3288A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Vicam |
| Camera Diameter: |
23X45mm |
| Camera Head Casing Material: |
Stainless Steel |
| LED Lighting: |
12 Pieces |
| Monitor Size: |
10 in HD LED Monitor |
| Certification: |
UL, FCC |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
