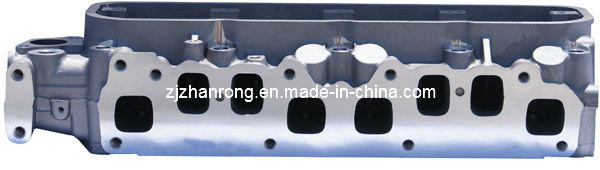

Aluminum Cylinder Head for Toyota 3Y

Name: Aluminum Cylinder Head for Toyota 3Y
Brand: ibuyautoparts.com
SKU: 718874775
Availability: InStock
Rating: 5 (55 reviews)

Price:	US $ 100-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

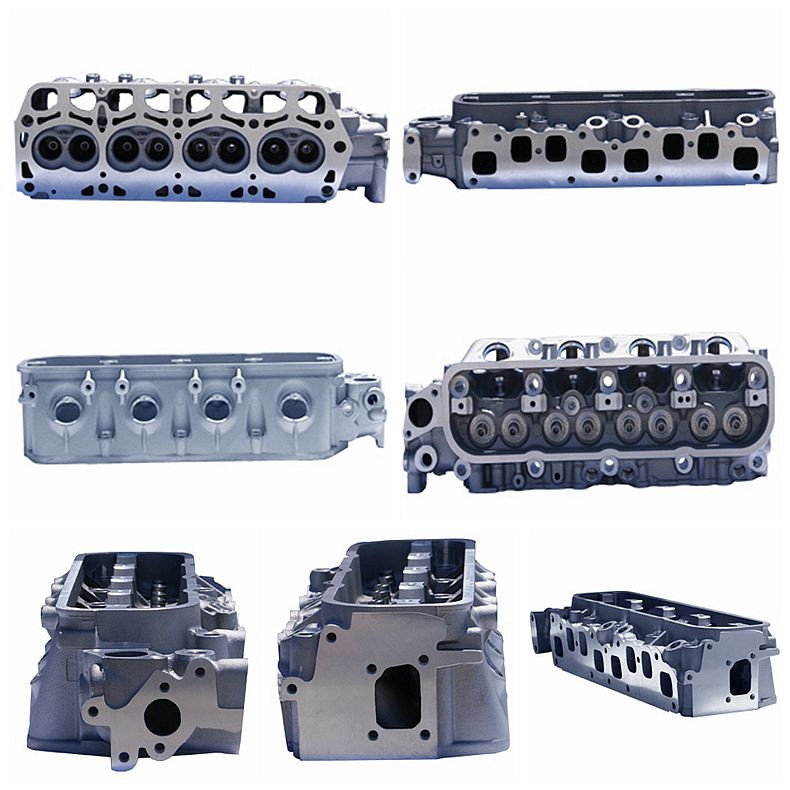

Aluminum cylinder head.
Engine no.: 3Y
Quality guarantee: 2 years or 50, 000 kilometers
Quality Certification: TS16949

There is also the emissions cleaned 3Y-U engine.

OHV 8 valve
Capacity: 1,998 cc
Bore × stroke: 86.0 × 86.0 mm
Compression ratio: 8.8
Reference output: 65 kW (88 PS) at 4,800 rpm, 155 Nm (15.8 kgm) at 3,400 rpm

Applications:

3rd generation Toyota HiAce truck/van/wagon (YH51G/61G/71G)
Hilux
Dyna/ToyoAce

3Y-C
This is the low emissions motor with catalytic converter exhaust system

OHV 8 valve
Displacement: 1,998 cc
Inside Bore × Stroke: 86.0 mm ×86.0 mm
Compression ratio: 8.8
Reference output: 63kW at 4,600 RPM, 155 Nm at 3,400 RPM

Applications:

LiteAce XTRA TRACK Wagon YM40(RGMDSQ),YM41(RVMDSQ)
Toyota Townace Van 30 series YR39

3Y-E

OHV 8 valve
Capacity: 1,998 cc
Bore × stroke: 86.0 × 86.0 mm
Compression ratio: 8.8
Reference output: (97 PS) at 4,800 rpm, 160 Nm (16.3 kgm) at 3,800 rpm

Applications:

Toyota Mark II (YX78V, fifth generation)
Toyota Hilux (YN60)
Daihatsu Rocky (Australia)

3Y-EU

OHV 8 valve
Capacity: 1,998 cc
Bore × stroke: 86.0 × 86.0 mm
Reference output: 85 kW (115 PS) at 5,000 rpm, 179 Nm (18.3 kg-m) at 3,600 rpm (gross)
97 PS (71 kW) at 4,800 rpm, 160 Nm (16.3 kgm) at 3,800 rpm (net)

Applications:

Hilux Surf/4Runner (61G)
TownAce wagon (YR21G)

3Y-P

OHV 8 valve (LPG)
Capacity: 1,998 cc
Bore × stroke: 86.0 × 86.0 mm
Output: 79 PS (58 kW) at 4,600 rpm, 15.0 kgm (147 Nm) at 3,000 rpm

Applications:

Crown(YS130)
Mark II(YX80)

3Y-PU

OHV 8 valve (LPG)
Capacity: 1,998 cc
Bore × stroke: 86.0 × 86.0 mm
Reference output: 66 kW (90 PS) at 5,000 rpm, 157 Nm (16.0 kg-m) at 3,000 rpm (gross)
79 PS (58 kW) at 4,600 rpm, 147 Nm (15.0 kg-m) 2,000 rpm (net)

Applications:

Crown (YS120)

3Y-PE

OHV, eight valves
Capacity: 1,998 cc
Bore × stroke: 86.0 × 86.0 mm
Compression ratio: 10.5
Reference output: 60 kW (82 PS) at 4,600 rpm, 157 Nm (16.0 kgm) at 2,400 rpm (1989 July? 1995 November)
79 PS (58 kW) at 4,400 rpm, 160 Nm (16.3 kgm) at 2,400 rpm (1995 December? )

Applications:

1989.06199? Crown YS130
1995.122008 Crown Comfort/Sedan YXS10
Comfort YXS11
Mark II YX70
Mark II YX80

New Code	Brand	Model	Engine Type	Cm 3	Valve	Year	Camshafts	AMC.NO.	O.E NO.
ZR0002	TOYOTA	491Q	3Y	2.4	8	1986-			11101-71030 11101-09110

Prod Model:	3Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve:	8V
Arrangement Pattern:	L Style
Type:	Cylinder Head

Zhejiang Zhanrong Trading Co., Ltd is a professional import and export company engaged in engine parts, which registered with capital of 10 million RMB. Our company locates in Jianggan District of Hangzhou, near the beautiful Qiantang River with convenient transportation.

Our main products include cylinder heads, completed cylinder heads, camshaft and etc. Our factory has been manufacturing auto parts for 20 years since 1994. Meanwhile we established stable and long-term cooperation with several professional manufacturers to provide customers with stable quality, complete models and competitive prices. We will always adhere to the "customer first" business philosophy, providing customers with better services in high efficiency. The maximization of customer interests will be our ultimate goal.
