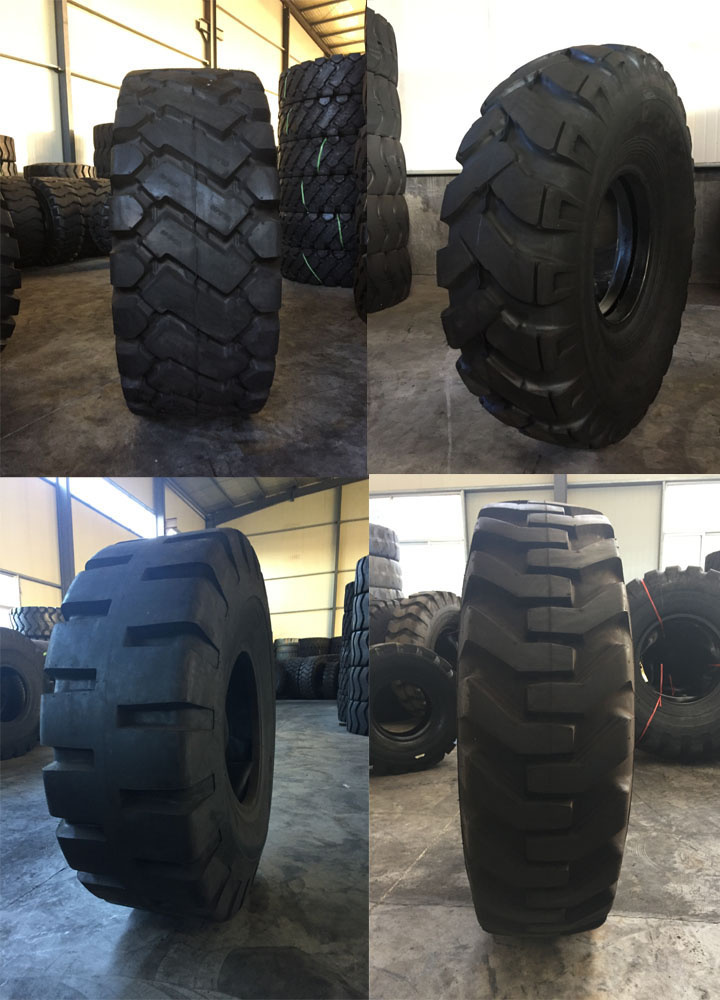

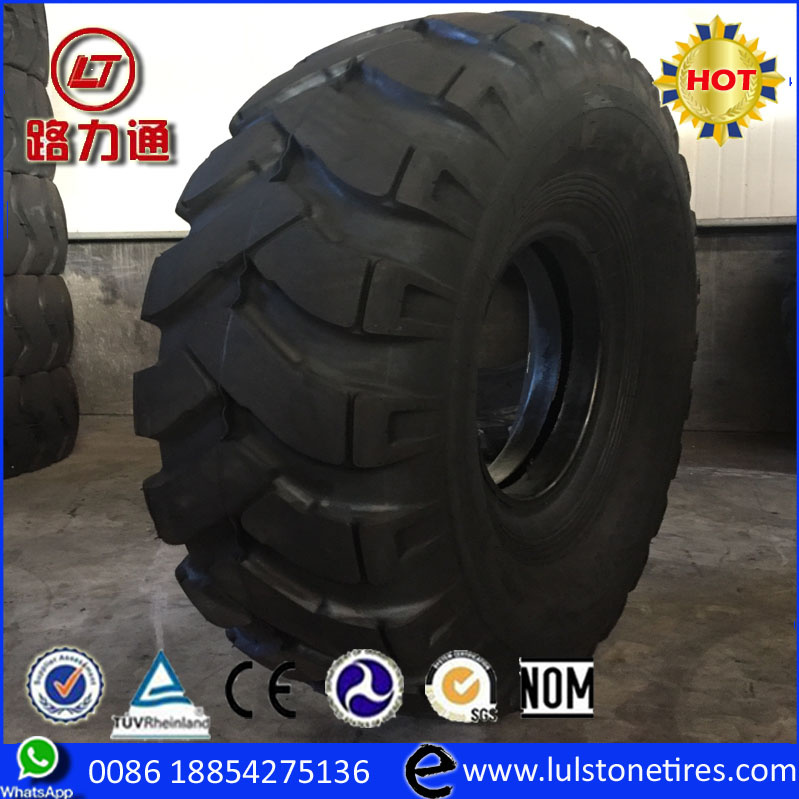

All Steel Radial Tire High Quality Heavy Loader Tire for Mine OTR Tire (18.00r33 29.5r29 27.00r49)
Price: |
US $ 1210/Piece |
Min Order: |
10/Piece |
Pay Type: |
T/T |
All Steel Radial Tire High Quality Heavy Loader Tire for Mine OTR Tire (18.00r33 29.5r29 27.00r49)Size | Ind Code | Rim WidthFlange | Min.Dual Spacing in mm | Inflated Dimensions | Static Load Rad in(mm) | Performance Capability | Tread Depth |
Overall Width in mm | Overall Diameter in mm |
T1 T2 T3 |
14.00R24 | E-4 | 10.00W | 17.7 450 | 14.8 375 | 55.8 1418 | 24.7 627 | 85 105 130 | 45.4 36 |
|
14.00R25 | E-4 | 10.00/1.5 | 17.7 450 | 14.8 375 | 55.8 1418 | | 85 105 130 | 45.4 36 |
|
18.00R25 | E-4 | 13.00/2.5 | 23.5 598 | 19.6 498 | 65.9 1673 | 28.9 734 | 150 190 240 | 56.7 45 |
|
17.5R25 | E-3 | 14.00/1.5 | | 17.5 445 | 53.1 1348 | 23.6 600 | 110 140 170 | 32.8 26 |
|
17.5R25 | L-3 | 14.00/1.5 | | 17.5 445 | 53.1 1348 | 23.6 600 | | 32.8 26 |
|
20.5R25 | E-3 | 17.00/2.0 | | 20.5 521 | 58.8 1493 | 25.8 656 | 120 150 190 | 37.8 30 |
|
20.5R25 | L-3 | 17.00/2.0 | | 20.5 521 | 58.8 1493 | 25.8 656 | | 37.8 30 |
|
23.5R25 | E-3 | 19.50/2.5 | | 23.6 600 | 64.8 1647 | 28.5 724 | 145 170 230 | 40.3 32 |
|
23.5R25 | L-3 | 19.50/2.5 | | 23.6 600 | 64.8 1647 | 27.8 706 | | 40.3 32 |
|
23.5R25 | L-3 | 19.50/2.5 | | 24.0 609 | 63.4 1611 | 28.5 714 | | 40.3 32 |
|
26.5R25 | E-3 | 22.00/3.0 | | 26.5 673 | 68.9 1750 | 30.5 775 | 155 190 240 | 44.0 35 |
|
26.5R25 | L-3 | 22.00/3.0 | | 26.5 673 | 68.9 1750 | 29.8 758 | | 44.0 35 |
|
29.5R25 | E-3 | 22.00/3.0 | | 29.8 756 | 73.8 1874 | 32.6 829 | 180 230 290 | 47.9 38 |
|
29.5R25 | L-3 | 22.00/3.0 | | 29.8 756 | 73.8 1874 | 31.8 807 | | 47.9 38 |
|
29.5R29 | E-3 | 25.00/3.0 | | 29.8 757 | 78.1 1983 | 34.5 876 | 200 250 330 | 47.9 38 |
|
29.5R29 | L-3 | 25.00/3.0 | | 29.8 757 | 78.1 1983 | | | 47.9 38 |
1. Designed for loaders, earthmovers and the equipment used in the construction stockpile and truck-loading applications;
2.Excellent traction and stability, which delivers exceptional operator comfort;
3.Bias and Radial tires are both available
4.G2/L2, E2, E3/L3 and E4/L4 and L5 and L5S are all available
5.Full range sizes and patterns are available
6.Official warranty policy could supply
Prod Model: |
33/65R33 29.0R29 29.5r25 27.00r4918.00r33 29.5r25 |
HS Code: |
4001290000 |
Type: |
Tubeless |
Diameter: |
≥22" |
Tire Design: |
Radial Tyre |
Certification: |
Gcc |
Tread Pattern: |
Deep Tread |
Tire Hierarchy: |
20-28 |
Qingdao lulstone tyre Co., Ltd, a private enterprise which specialized in Radial and bias tire manufacturing, located in gaomi south industry zone, shandong.The company closes to ji-qing highway on north and next to jiao-ji railway on south.In the east is the beautiful summer resort-qingdao;In the west is the international kite city-wei fang, and 50 kilometers away from qingdao international airport.Possess the good geographical advantage and convenient traffic conditions.
The company was founded in 2003, covers an area of 40, 000 square meters - 19, 000 square meters construction area, possesses the advanced production equipment and strong technical force in rubber tire field.Our products-lulstone and antstone brand tire mainly include truck tire, light truck tire, agricultural tire, industrial tire etc.Four main categories in all.More than 60 specifications, support for a wide range of vehicles.In addition to the domestic sales we also export to the middle and south United States, south-east Asia, Africa, east Europe etc.The company enjoys a good reputation.
The whole qualification of our company is evidently raised by strengthening interior management and in addition, we not only passed ISO9001 authentication of Chinese quality authentication centre, a authorized authentication institute, but also passed 2000 quality management system authentication and CCC Chinese compelling products authentications.
Since the new century, the market environment has changed dramatically;The entire tire industry faced the situation of both raw materials and labor costs rising.In order to cope with this change, we make efforts to study production techniques, and constantly adjust the product technology, lower the costs and improve product quality.Adjust product formulations to meet the different tire requirements in different areas.All employees make effort to improve the cost effective and acquired acknowledgement of customers.
