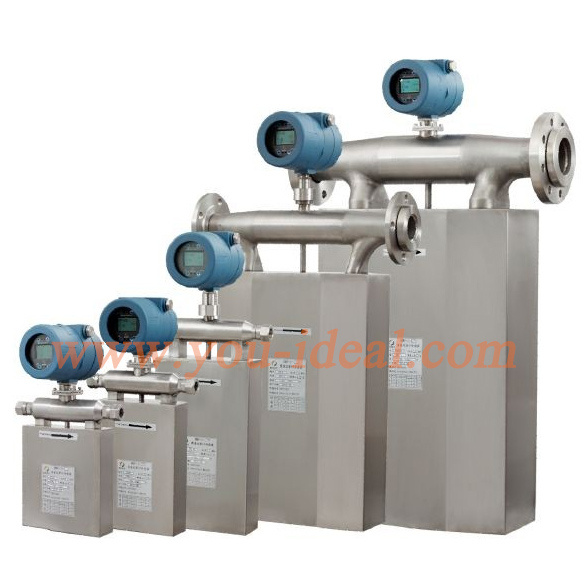

Air Mass Flow Meter Coriolis Flow Sensor
| Price: |
US $ 3000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
We are a top Chinese trading company and manufacturer of
Air Mass Flowmeter- Coriolis Mass Flow Sensor for many years with high quality and competitive price.
1. Main technical parameters| Measurement scope | 2kg/h~500t/h |
| Accuracy | ± 0.2%~± 0.15% |
| Work pressure | (0~32) MPa (in case of other high pressure, it must be special order) |
| Medium temperature | -50º C~ +350º C |
| Measurement accuracy | ± 1º C |
| Environment temperature | -20º C ~ +70º C |
| Measurement medium | Liquid, gas, solid, or two phases and three phases mixed fluid |
| Output signal | (1)4-20mA current signal of flow, with load resistance ≤ 500Ω |
| (2) 0-10kHz frequency signal of flow |
| (3) RS485 Communication protocol |
| (4) Hart protocol |
| Power supply voltage | 24VDC |
| Material of measuring pipe | 316L stainless steel |
| Response time | 0.1s~5s, adjustable |
| Explosion-proof grade | Ex(ib)II BT2-T5 |
2. Flow Range
Micro Flow Meter ----- GV-DMF-1-1-A, GV-DMF-1-1-B, GV-DMF-1-2-A, GV-DMF-1-2-BModel | DN | Measurement scope ( kg/h ) | Work Pressure ( MPa ) | Connection type (mm) |
| DMF-1-1-AB | 1.5 | 0~4 | 0~32 | Weld Joints Φ6×1.5 |
| DMF-1-1-A | 3 | 0~40 | 0~32 | Weld Joints Φ6×1.5 |
| DMF-1-1-B | 6 | 0~100 | 0~25 | Weld Joints Φ10×2 |
| DMF-1-2-A | 8 | 0~200 | 0~20 | Weld Joints Φ10×1 |
Medium-Small Flow Meter ---- GV-DMF-1-3-A, GV-DMF-1-3-B, GV-DMF-1-4 | Model | DN | Measurement scope (kg/h) | Work Pressure (MPa) | Connection Type(mm) |
DMF-1-3-A | 12 | 0~500 | 0~4 | Weld Joints Φ18×3 |
| 12 | 0~500 | 0~25 | Weld Joints Φ20×4 |
DMF-1-3-B | 14 | 0~1000 | 0~4 | Weld Joints Φ18×2 |
| 14 | 0~1000 | 0~25 | Weld Joints Φ20×3 |
DMF-1-4 | 16 | 0~3000 | 0~4 | Weld Joints Φ18×1 |
| 16 | 0~3000 | 0~25 | Weld Joints Φ20×2 |
Large-scale Flow Meter--- GV-DMF-1-5, GV-DMF-1-6-A, GV- DMF-1-6-B, GV-DMF-1-6-C, DMF-1-6-D| Model | DN | Measurement scope (t/h) | Work Pressure (MPa) | Connection Type(mm) |
| DMF-1-5-A | 25 | 0-10 | 0~4 | Flange 25 |
| DMF-1-5-B | 40 | 0-20 | 0~4 | Flange 40 |
| DMF-1-6-A | 50 | 0-30 | 0~4 | Flange 50 |
| DMF-1-6-AB | 65 | 0-50 | 0~4 | Flange 65 |
| DMF-1-6-B | 80 | 0-100 | 0~4 | Flange 80 |
| DMF-1-6-C | 100 | 0-150 | 0~4 | Flange 100 |
| DMF-1-6-D | 150 | 0-300 | 0~2 | Flange 150 |
| DMF-1-6-E | 200 | 0-500 | 0~2 | Flange 150 |

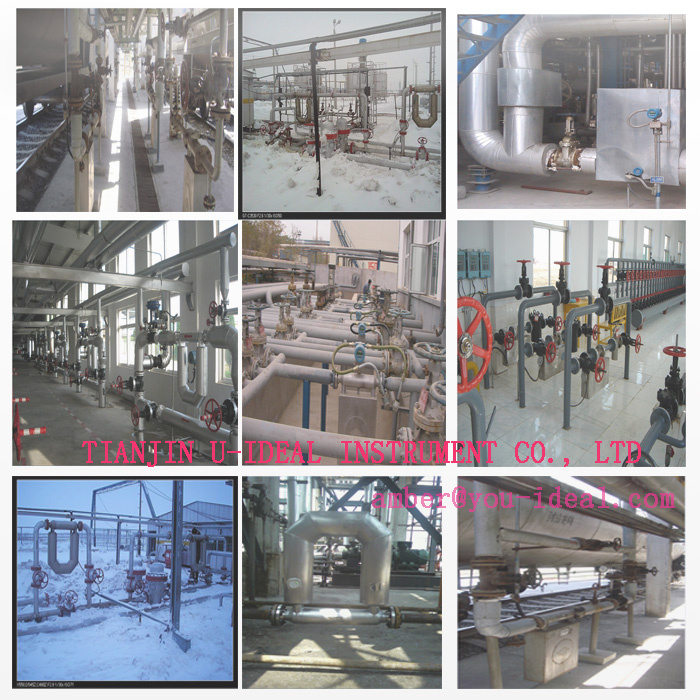

3. Applications
| Prod Model: |
LWGY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Fluid Measured: |
Liquid, Air, Solid Flow |
| Output Signal: |
4-20mA, Pulse, RS485, Hart |
| Indicate: |
Flow Rate, Total Flow, Density, Temperature |
| Fluid Types: |
Two-Phase Flow, Three-Phase Flow |
| Sensor: |
Tube/Flange |
| Accuracy: |
±0.2%~±0.15%, ±0.2-0.5% |
| Measuring Media: |
Liquid |
| Size: |
Dn1.5~Dn200 |
| Measuring Principle: |
Atomic Physics, Atomic Physics~@ |
| Type: |
Coriolis Mass Flow Meter |
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
