Agricultural Stub and Complete Axle

Name: Agricultural Stub and Complete Axle
Brand: ibuyautoparts.com
SKU: 816413265
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 80-300/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

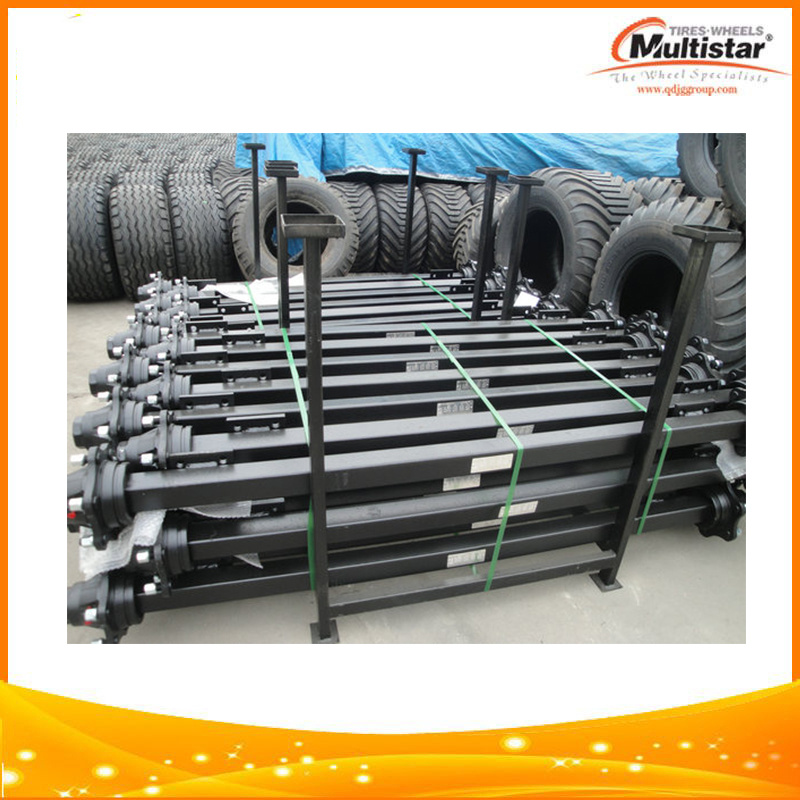

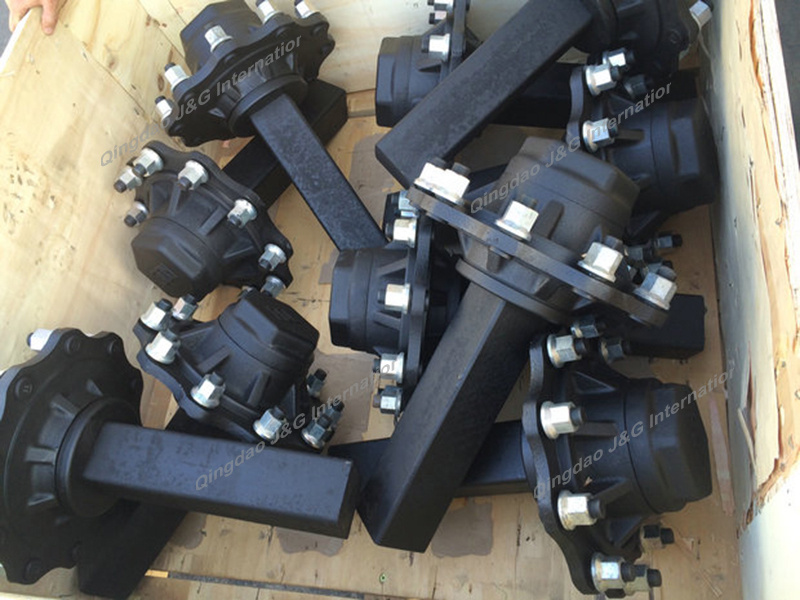

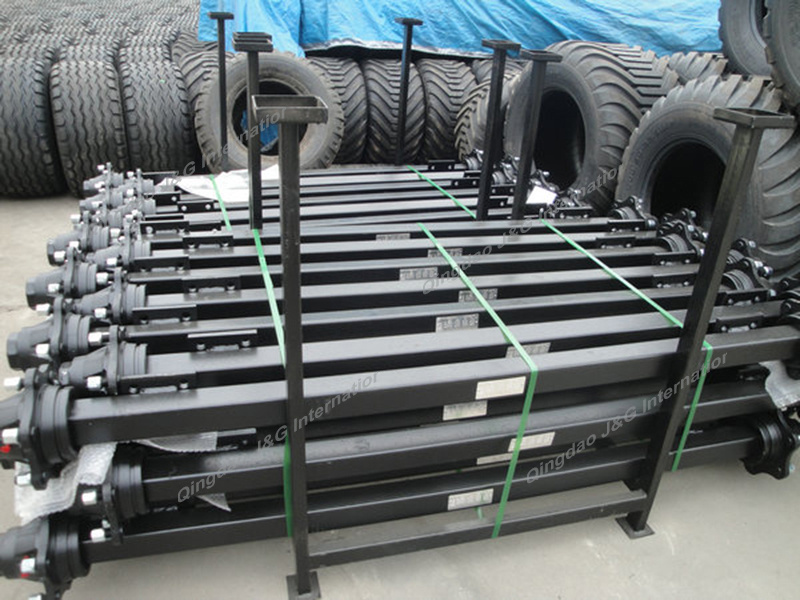

Agricultural Stub and Complete Axle

Product Feature:

1. low speed non driven axle

2. Special in Agriculture trailer application

3.IS0/TS 16949 Certificate

4. Italian and French Technolgy

5. Stub and complete axle both availiable

6. load capacity from 1 ton to 13 ton

7. Cooperation with difference world famous brand.

8. Track Length: customed

9. With brake is optional

10. Beam: From 40mm to 150mm

Availalbe sizes:

Refrence	Beam	CBD	PCD	Studs Nos	Stud Size	Bearing(out)	Bearing(in)	Max Load Capacity Single Axle( 25km/h)
404F	40*40	84	130	4	M14*1.5	30205	30207	1500kg
405F	40*40	93	140	5	M16*1.5	30205	30207	1500kg
505F	50*50	93	140	5	M16*1.5	30205	30209	3000kg
505A	50*50	93	140	5	M16*1.5	30206	30209	3000kg
506A	50*50	160	205	6	M18*1.5	30206	30209	3000kg
506X	50*50	160	205	6	M18*1.5	30206	30209	3000kg
606X	60*60	160	205	6	M18*1.5	30207	30211	4800kg
706X	70*70	160	205	6	M18*1.5	30209	30213	6500kg
806X	80*80	160	205	6	M18*1.5	32211	30215	8000kg
808X	80*80	220	275	8	M18*1.5	32211	30215	8000kg
906X	90*90	160	205	6	M18*1.5	32211	32217	10000kg
908X	90*90	220	275	8	M18*1.5	32211	32017	10000kg
908XR	90*90	220	275	8	M18*1.5	32217	32217	10700kg
910XR	90*90	280	335	10	M22*1.5	32217	32217	10700kg
1008X	100*100	220	275	8	M18*1.5	32217	32217	13000kg
1010X	100*100	280	335	10	M22*1.5	32217	32217	13000kg
1010XR	100*100	280	335	10	M22*1.5	32219	32219	13000kg
1110X	110*110	280	335	10	M22*1.5	32219	32219	13000kg
1210X	120*120	280	335	10	M22*1.5	32219	32219	13000kg
1510X	150*150	280	335	10	M22*1.5	32219	32219	13000kg

Photos:

Prod Model:	from 1000kgs to 13000kgs
Classification:	Axles
Usage:	Implement Trailer, Wagon, Spreader etc

With presence in over 70 countries across 6 continents, Qingdao J&G International Trading Co., Ltd has fastly grown up an One-stop professional supplier of a wide range of tires & wheels, and axles in China. We are to deliver superior value to our customers through focus on products, innovation, technology and cost efficient manufacturing and distribution practices.

The main component of Qingdao J&G's business is to supply the Mulitstar brand tires & wheels, and axles for the global "OEM" and aftermarkets, particularly for the farming applications, comerical vehicles, construction & earthmover equipments. Meanwhile, we are also supply a full specifications of steel wheels for mining, port handlings, Off-the-Road construction equipments. As well Alloy truck wheels are also available by us.

We have a well stocked warehouse in the Harbor of Qingdao now. A new bigger warehouse owned us is under construction, which is more than 2, 000 square meters. We can not only meet the demands of prompt shipment but also meet the demand of wheel assembly of tyres and rims for "OE" manufactures for the domestic and overseas markets.

Our extensive inventory of over 3000 units of complete wheel assemblies, and various range of tyres and rims, and also inner tubes and valves, clearly separaters them from our competition.
