| Prod Model: |

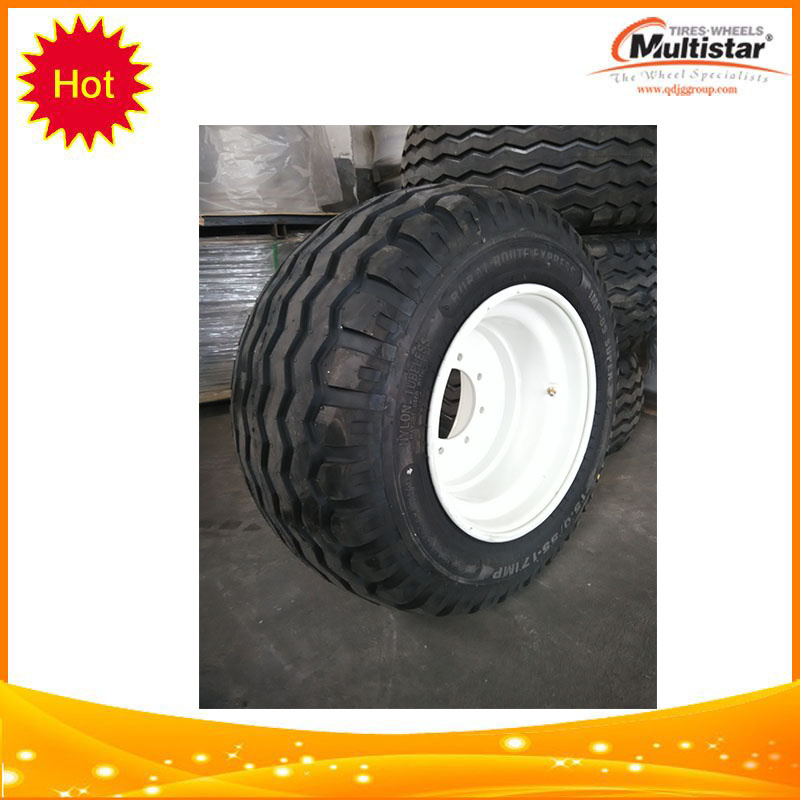

Tyre 15.0/55-17 with rim 13.00x17 assemblies |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Rim: |
13.00X17 Available |
| Type: |
Tubeless |
| Certification: |
DOT |
| Tire Design: |
Diagonal Tire |
| Classification: |
Tire with Rim Assemble |
| Diameter: |
17 |
| Usage: |
Baler, Spreader, Feedmixer, Tmr, Trailer |
| Tread Pattern: |
Aw Pattern/Imp-05 Super |
Product Description
Agricultural Implement Trailer Tyre 500/50-17 for Baler/ Speader/ TMR with Rim 16.00x17
1.Application: Agircultural Implement/ trailer
2. Low section implement tyres, offering high load capacity with minimum soil compaction
3. Ideal tyres for modern farming, suitable for both on and off-the-road applications
Available size specification:
| Tyre Size | PR | Brand | Pattern | TT/TL | Rim | OD*SC | Max Load | Inflation Pressure |
| 7.00-12 | 6 | Multistar | IMP-01 | TL | 5.00*12 | 25.8*10.39inch | 690kg | 7.5bar |
| 10./80-12 | 10 | Multistar | IMP-01 | TL | 7.00*12 | 28.3*10.65inch | 1450kg | 5.4bar |
| 10.0/75-15.3 | 10 | Multistar | IMP-01 | TL | 9.00*15.3 | 30*10.40inch | 1550kg | 5.2bar |
| 10.0/75-15.3 | 12 | Multistar | IMP-01 | TL | 9.00*15.3 | 30*10.40inch | 1700kg | 6.4bar |
| 10.0/75-15.3 | 14 | Multistar | IMP-01 | TL | 9.00*15.3 | 30*10.40inch | 1900kg | 7.1bar |
| 10.0/75-15.3 | 16 | Multistar | IMP-01 | TL | 9.00*15.3 | 30*10.40inch | 2060kg | 7.1bar |
| 10.0/75-15.3 | 18 | Multistar | IMP-01 | TL | 9.00*15.3 | 30*10.40inch | 2360kg | 7.1bar |
| 11.5/80-15.3 | 10 | Multistar | IMP-01 | TL | 9.00*15.3 | 33.4*11.5inch | 1950kg | 4.6bar |
| 11.5/80-15.3 | 12 | Multistar | IMP-01 | TL | 9.00*15.3 | 33.4*11.5inch | 2180kg | 5.6bar |
| 11.5/80-15.3 | 14 | Multistar | IMP-01 | TL | 9.00*15.3 | 33.4*11.5inch | 2430kg | 6.5bar |
| 11.5/80-15.3 | 16 | Multistar | IMP-01 | TL | 9.00*15.3 | 33.4*11.5inch | 2575kg | 7.1bar |
| 11.5/80-15.3 | 18 | Multistar | IMP-01 | TL | 9.00*15.3 | 33.4*11.5inch | 2900kg | 7.1bar |
| 12.5/80-15.3 | 14 | Multistar | IMP-01 | TL | 9.00*15.3 | 35*12.30inch | 2650kg | 5.8bar |
| 12.5/80-15.3 | 16 | Multistar | IMP-01 | TL | 9.00*15.3 | 35*12.30inch | 2800kg | 6.5bar |
| 400/60-15.5 | 14 | Multsitar | IMP-04 | TL | 13.00x15.5 | 910x400mm | 2725kg | 4.9bar |
| 400/60-15.5 | 14 | Multistar | TRC-02 | TL | 13.00x15.5 | 910x400mm | 2900kg | 3.6bar |
| 10.5/65-16 | 14 | Multstar | IMP-01 | TL | W8x16 | 755x274mm | 1900kg | 7.1bar |
| 14.0/65-16 | 10 | Mutlsitar | IMP-05 | TL | 11.00x16 | 870x353mm | 2240kg | 3.7bar |
| 14.0/65-16 | 14 | Multistar | IMP-05 | TL | 11.00x16 | 870x353mm | 2900kg | 5.5bar |
| 10.5/80-18 | 10 | Multistar | IMP-01 | TL | 9.00*18 | 35.71*10.79inch | 1950kg | 5.0bar |
| 12.5/0-18 | 12 | Multistar | IMP-01 | TL | 11.00*18 | 38.86*12.13inch | 2650kg | 5.0bar |
| 12.5/0-18 | 14 | Multistar | IMP-01 | TL | 11.00*18 | 38.86*12.13inch | 3000kg | 5.9bar |
| 13.0/65-18 | 16 | Multistar | IMP-01 | TL | 11.00*18 | 35.9*13.22inch | 2575kg | 5.8bar |
| 15.5/65-18 | 10 | Multistar | IMP-01 | TL | 13.00*18 | 980*395mm | 2300kg | 3.5bar |
| 15.0/55-17 | 14 | Multistar | IMP-05 | TL | 13.00x17 | 850x391mm | 2575kg | 4.9bar |
| 15.0/55-17 | 18 | Multistar | IMP-05 | TL | 13.00x17 | 850x391mm | 3250kg | 6.5bar |
| 19.0/45-17 | 14 | Mutistar | IMP-05 | TL | 16.00x17 | 895x453mm | 2800kg | 3.9bar |
| 19.0/45-17 | 18 | Multistar | IMP-05 | TL | 16.00x17 | 895x453mm | 4000kg | 4.5bar |
| 500/50-17 | 14 | Multsitar | IMP-05 | TL | 16.00x17 | 935x500mm | 3550kg | 3.6bar |
| 500/50-17 | 18 | Multistar | IMP-05 | TL | 16.00x17 | 935x500mm | 4120kg | 4.4bar |
| 15.0/70-18 | 14 | Multistar | IMP-05 | TL | 13.00x18 | 990x391mm | 3150kg | 4.9bar |

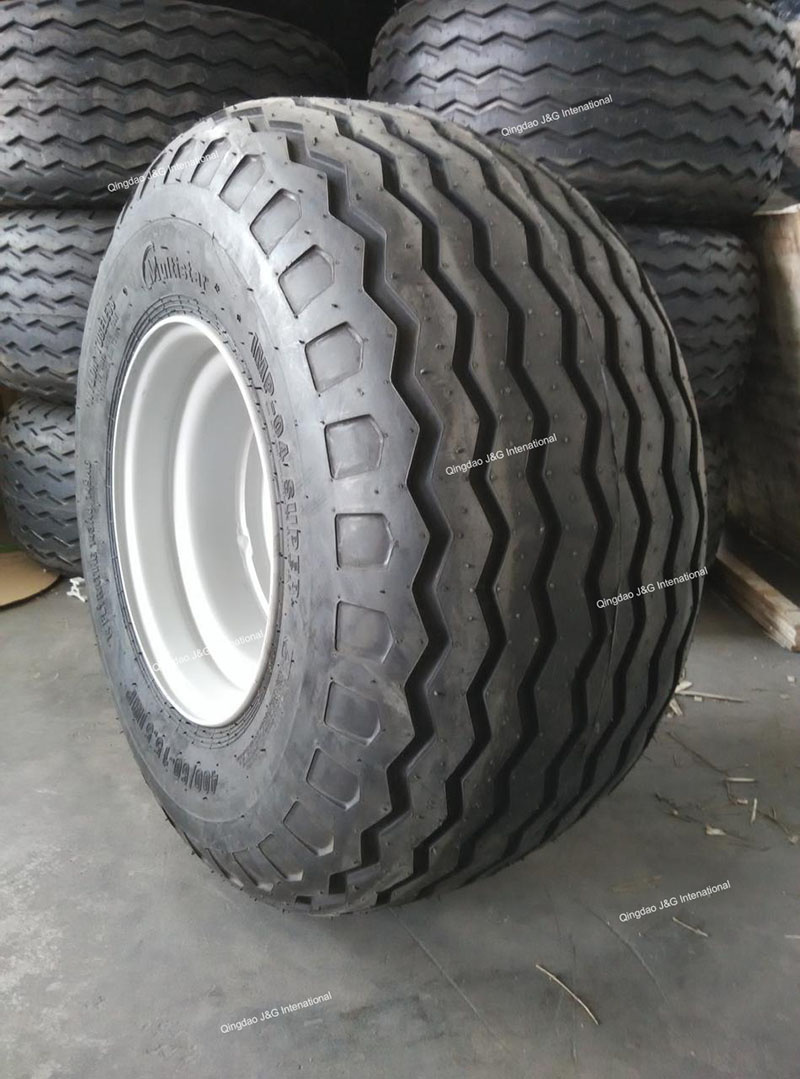

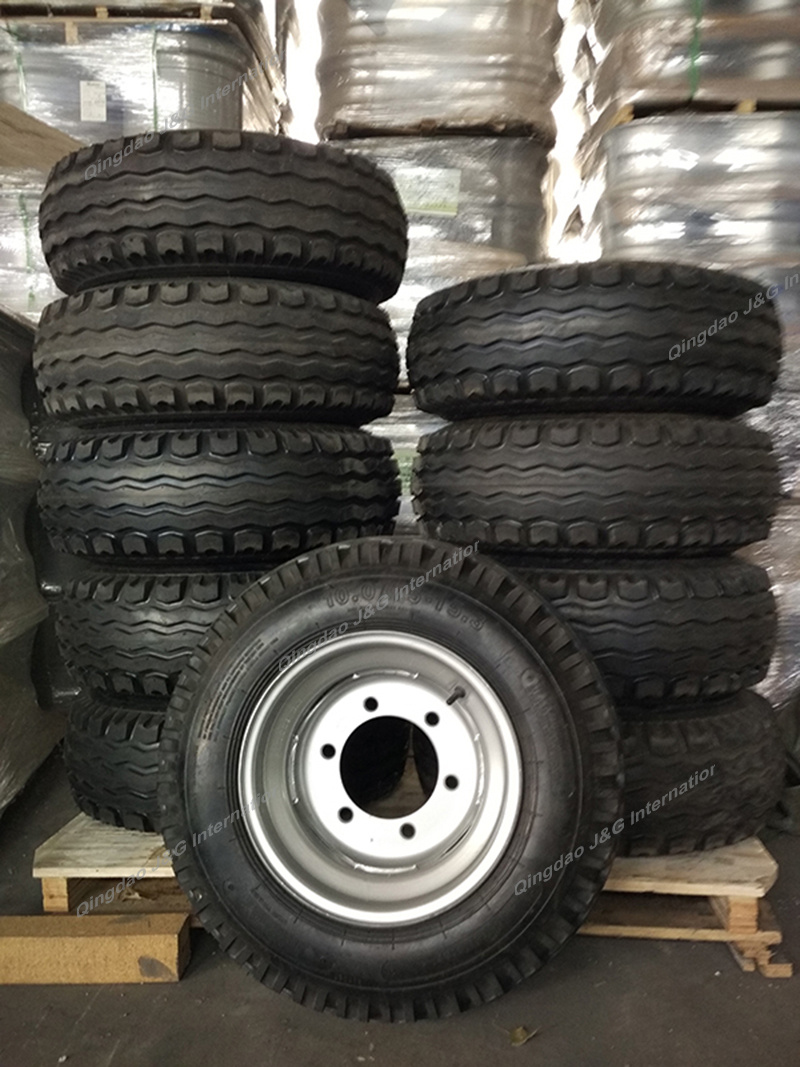

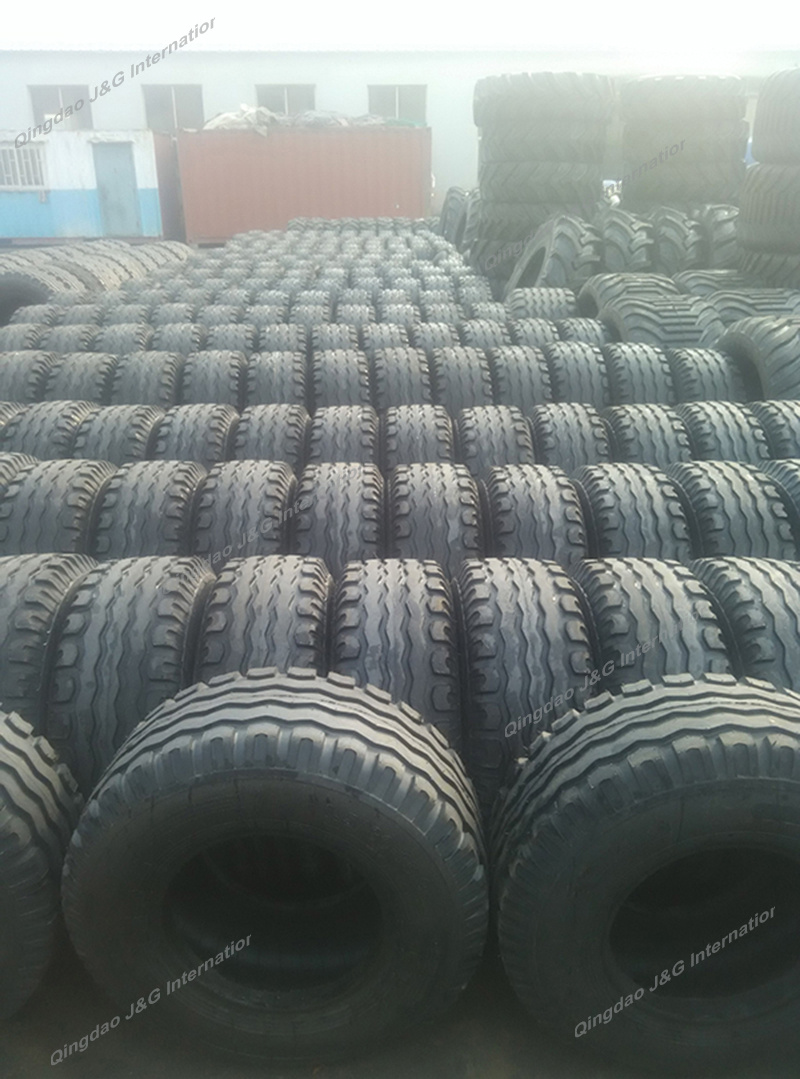

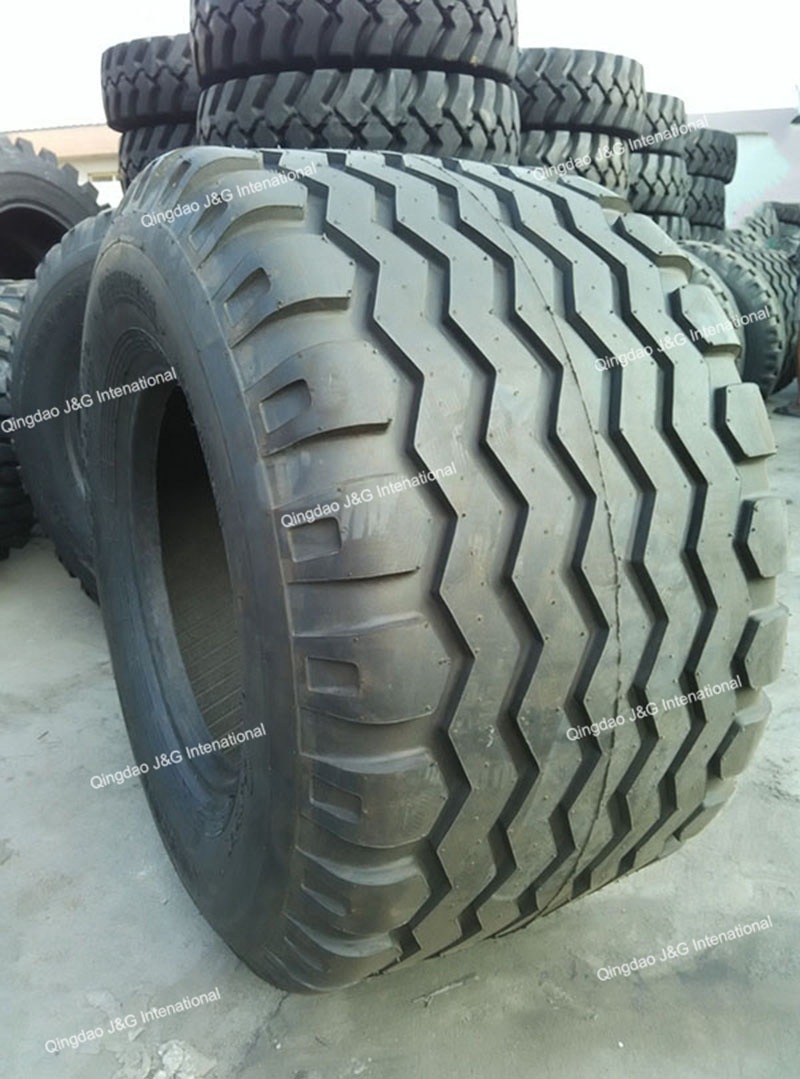

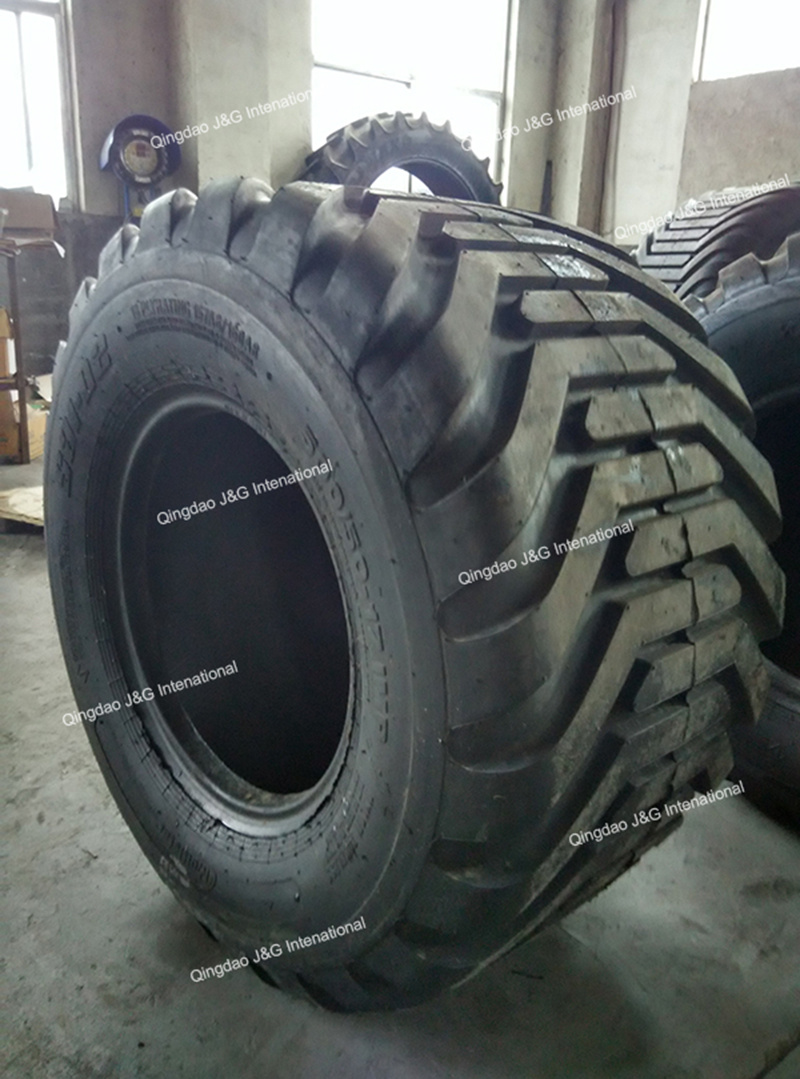

Tyre photo:
With presence in over 70 countries across 6 continents, Qingdao J&G International Trading Co., Ltd has fastly grown up an One-stop professional supplier of a wide range of tires & wheels, and axles in China. We are to deliver superior value to our customers through focus on products, innovation, technology and cost efficient manufacturing and distribution practices.
The main component of Qingdao J&G's business is to supply the Mulitstar brand tires & wheels, and axles for the global "OEM" and aftermarkets, particularly for the farming applications, comerical vehicles, construction & earthmover equipments. Meanwhile, we are also supply a full specifications of steel wheels for mining, port handlings, Off-the-Road construction equipments. As well Alloy truck wheels are also available by us.
We have a well stocked warehouse in the Harbor of Qingdao now. A new bigger warehouse owned us is under construction, which is more than 2, 000 square meters. We can not only meet the demands of prompt shipment but also meet the demand of wheel assembly of tyres and rims for "OE" manufactures for the domestic and overseas markets.
Our extensive inventory of over 3000 units of complete wheel assemblies, and various range of tyres and rims, and also inner tubes and valves, clearly separaters them from our competition.
