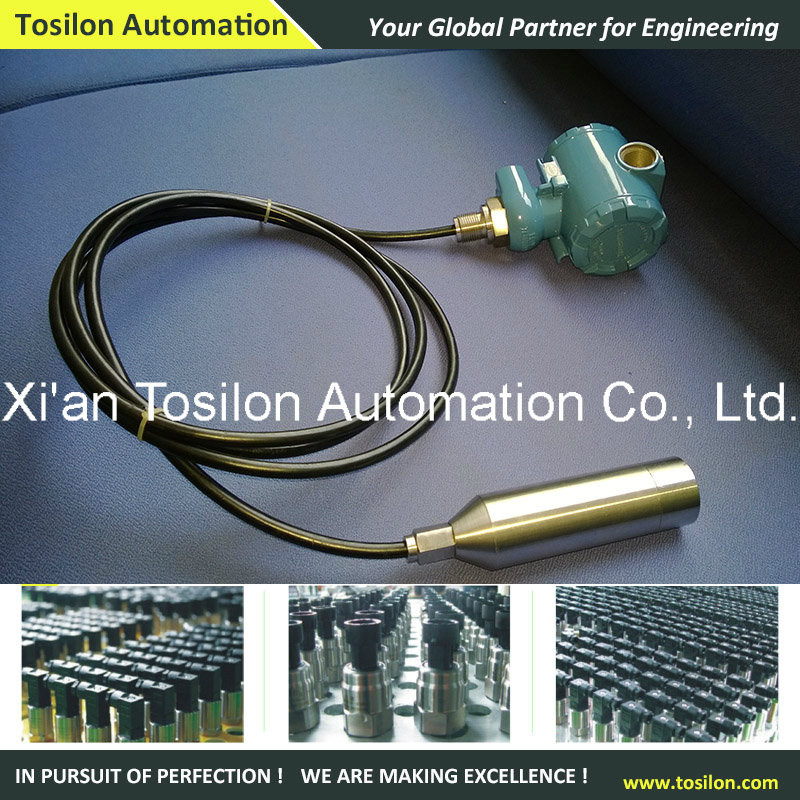

Adjustable Hydrostatic Fuel Oil Tank Level Indicator
| Price: |
US $ 100-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

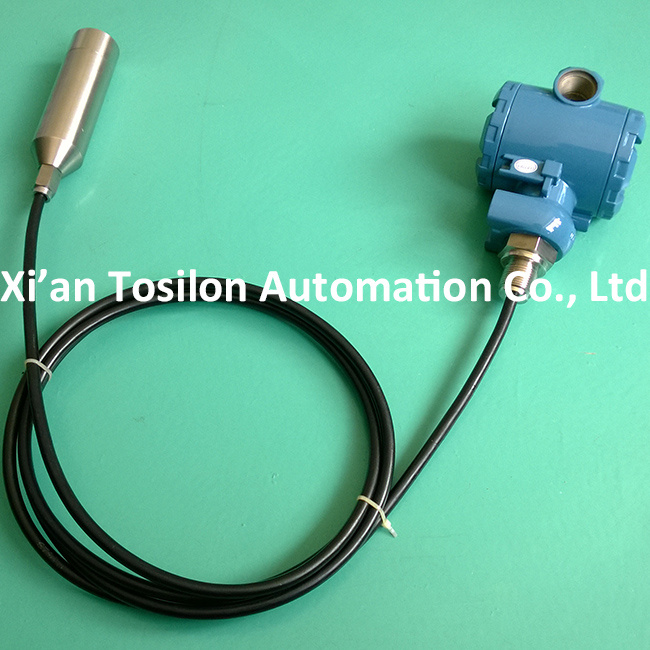

Tosilon Adjustable Hydrostatic Fuel Oil Tank Level Indicator (CE, Ex Approved)Design and Manufacturing according to CE StandardIntroduction TLZ460 Submersible Level Transmitters use high performance piezoresistive pressure sensor as sensing elements. It measures liquid static pressure accurately which is positive proportional to liquid depth, transmitting pressure signal into standard current/voltage output signal by amplifier circuit board.
The product has high accuracy, compact size and easy operation characteristics, for it can be submersible into the liquid to measure level from transmitter bottom to liquid surface. For the liquid measure and control of petroleum, chemi-industry, power station, city water supply and drainage and hydrology, it is widely used.
Features· Diffuse Silicon Type
· Highly Anti-Corrosive;
· High Accuracy;
· Output Signal optional;
· Digital Adjustment;

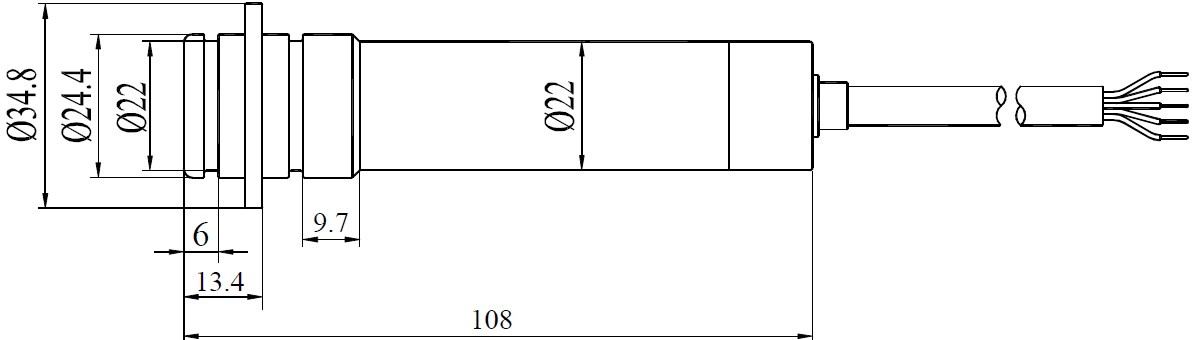

· CE approvedOutline Structure
Performance Parameters (For Details, please contact Tosilon)
Pressure Range Overpressure0~1....100mH2O/1bar~0~100bar 2 F.SAccuracy Stability±0.5%F.S 0.25%F.S/yearWorking Temp. Temp. Compensation-20 oC~70 oC -20 oC~70 oC Output Power Supply4-20mA DC 10~36V DCLoad Resistance Insulation(U-10)/0.02(Ω) >100M Ω@50VClass of Protection Pressure TypeIP68 Gauge, Sealed Gauge, AbsoluteCertification
CE For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Item | Description | Remark |
| Pressure Range | 0~1^.100mH2O/-1bar~0~100bar | 1mH2O≈9.81kPa |
| Overpressure | 2 F.S | |
| Accuracy | ±0.5%F.S | As required |
| Stability | 0.25%F.S/year | |
| Working Temp. | -20~70 | |
| Temp. Compensation | -20~70 | |
| Output | 4-20mA DC | |
| Power Supply | 10~36V DC | |
| Load Resistance | (U-10)/0.02(Ω) | |
| Insulation | >100M Ω@50V | |
| Class of Protection | IP68 | |
| Pressure Type | Gauge, Sealed Gauge, Absolute | |
| Certification | CE, ATEX Approved | |
| Electromagnetic compatibility | electromagnetic emission | Electromagnetic Sensitivity | Lighting-Proof is optional |
| EN50081-1/-2 | EN50082-2 |
| Prod Model: |
TLZ460 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Range: |
0~1....100mh2o/-1bar~0~100bar |
| Overpressure: |
2 F.S |
| Accuracy Class: |
0.5%F.S |
| Stability: |
0.25%F.S/Year |
| Working Temp. (Degrees Celsius): |
-20~70 |
| Temp. Compensation (Degrees Celsius): |
-20~70 |
| Output: |
4-20mA DC |
| Power Supply: |
10~36V DC |
| Pressure Type: |
Gauge, Sealed Gauge, Absolute |
| Certifications: |
CE, Approved |
| Material: |
Ss360L |
