Act 568 Cylinder ECU Conversion Kits Sequential Gas Injection System
Price: |
US $ 65-70/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |

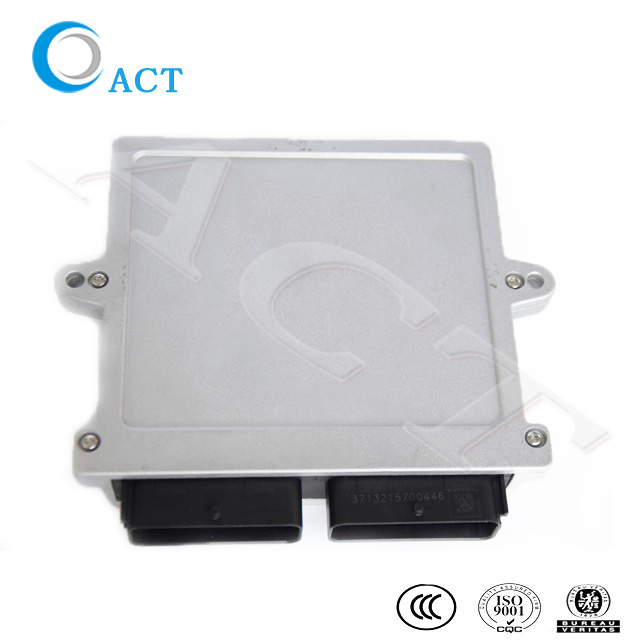

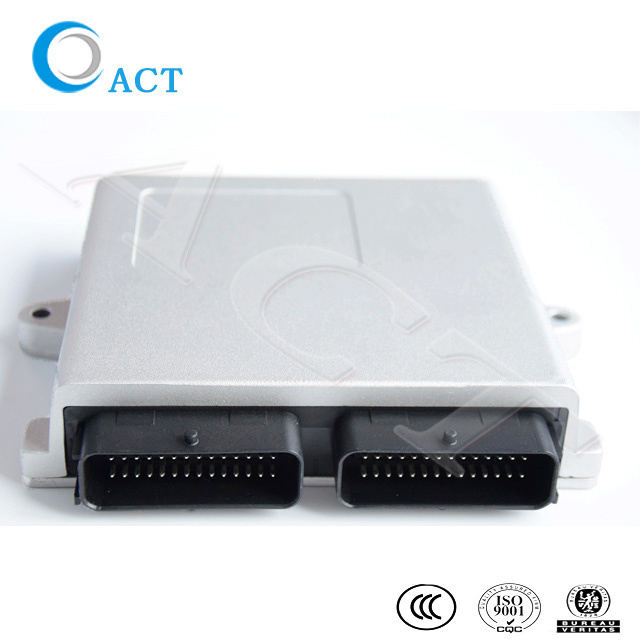

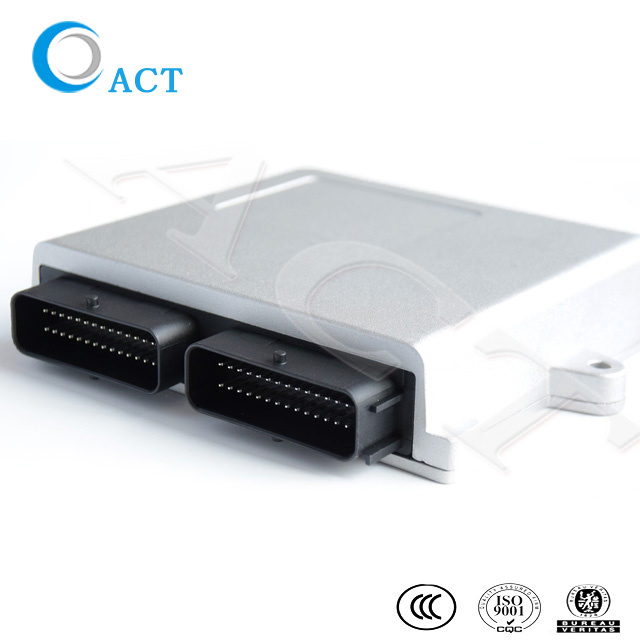

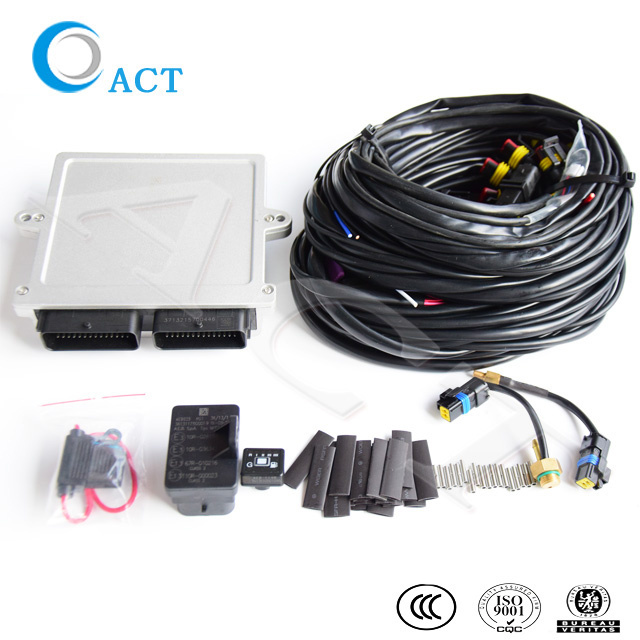

ACT 568 cylinder ECU conversion kits sequential gas injection system
Product DescriptionBrief Introduction
Injector rail is one part of gas engine air intake system ,comprised of a group of jet nozzles, temperature and pressure sensors, spray rail body, outlet nozzles and other components
In the different conditions of the engine, according to the ECU control strategy ECU calculated the injection timing and pulse width (jet volume) ], compressed natural gas injected into the gas rationing rail or cylinder. 5-6-8 CYLINDERS MULTIPOINT SEQUENTIAL INJECTION ECU WITH OBD
ACT 2568 ECU has been designed for 5-6 cylinder timed sequential multipoint injection vehicles. While running on gas, the ACT 2568 calculates
the equivalent , Gas quantity that has to be injected in gaseous form in aspiration conduct, accordingly to fuel injection timing and gas
temperature pressure, for obtaining the same performance you can have running on petro . SPECIFICATIONS FOR ACT 2568cylinder ecu kits | | Regulated media | CNG | LPG | Resistance | 150 ohm | Material | Alumium | Main performance parameters | Working Voltage | 9 ~ 16V | Rated Voltage | DC 12V | Working Current | 10-12 A | | 10 Pieces / carton | 28 KG | 0.007 CBM |
| | | |
| | | |
| | | |
| | | |
1.Packaging | A:Common Packing: 1PC+ Inner Box+Export Carton 50PCS/Carton,carton size: 38*36*21 ; B:Customized Packing: OEM Label, Inner Box,etc. |
2.Transportation | (1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc); (2)We will do best to get good freight cost for you. |
3.Payment Terms | T/T, Paypal,Western Union,L/C,Escow |
4.Delivery Time | According to your order quantity. |
5.Company Type | Factory and trade integration,years of export experience; |
Our Company information:
Chengdu ACT Technology Co.,LTD
Located in Chengdu city, Sichuan province, China. With eighteen years development, ACT becomes one of largest CNG LPG kits manufacturers in China, mainly specializing in R&D, manufacturing CNG/LPG conversion kits for vehicles.
Our best seller products include CNG/LPG reducer/regulator, ECU conversion kits, injection rail, switch, emulator, pressure gauge,...Most of them are approved by ECE R110 and BV certificates. Our products have been sold to more than 60 countries around the world.
Advantages:
(1)Good performance even with dirty CNG and easy to install;
(2)Stable injection flow,simple maintenance and compact overall dimensions;
(3)Excellent silent running.
Prod Model: |
ACT 568 cylinder ECU conversion kits |
Fuel: |
Gasoline |
Component: |
Fuel Injection Device |
Certification: |
BV, GOST, ECE, R110 |
Stroke: |
4 Stroke |
Cylinder: |
Multi-cylinder |
Application: |
All Cars |
Company profile
Chengdu ACT technology Co., Ltd. is located in Chengdu City, Sichuan Province, China. With 10 million registered capital and total area more than 600, our working environment is very comfortable. ACT is a company integrating R&D, manufacturing and selling CNG LPG products.
Our production bases in Xindu industrial park. 90% of our production equipments are imported from overseas. With our own R&D team and strong R&D capabilities, we are in the leading position in this field. Our CNG products eg. Reducer, injector rail and ECU kit etc. Are very popular in both domestic and international market. Our single point conversion kit and sequential injection conversion kit are widely accepted by our customers.
With branches in Zhengzhou, Jinan, Shenyang, Inner Mongolia and Urumchi, Yinchuan, Sijiazhuang etc. And agents in Singapore, Armenia, etc., ACT has exported to almost all provinces in China and the five countries in central Asia, Middle East and South-America, etc...With our first-class after sales service, almost all of our customers speak highly of our products.
We serve our customers under the guidance of the tenet "quality creates brand, responsibility brings excellence". With independent trademark ACT, we have achieved quality certificates eg. ECE, R110, BV & GOST etc...
ACT is developing at top speed. We longed to work with those with motivation and responsibility and create ACT into a diversified company. We sincerely expect to cooperate with you and create a better future with green, civilization and harmony.
Operation Philosophy
Vision: To become a solid company with profound cultural background, strength and passion.
Goal: To occupy a commanding height in R&D, expand customer base and professional field under the guidance of market-oriented policy, becoming a all-around and multi-functional enterprise which will be deeply rooted in the international market.
Company Tenet: Quality creates brand, responsibility brings excellence.
Strategy: To be professional, strong and large.
Value: People-oriented, honesty first, quality focused.
Security Concept: Life against all, safety first, attaching great importance to both safety management and industry chain, introducing safety conception to every field.
