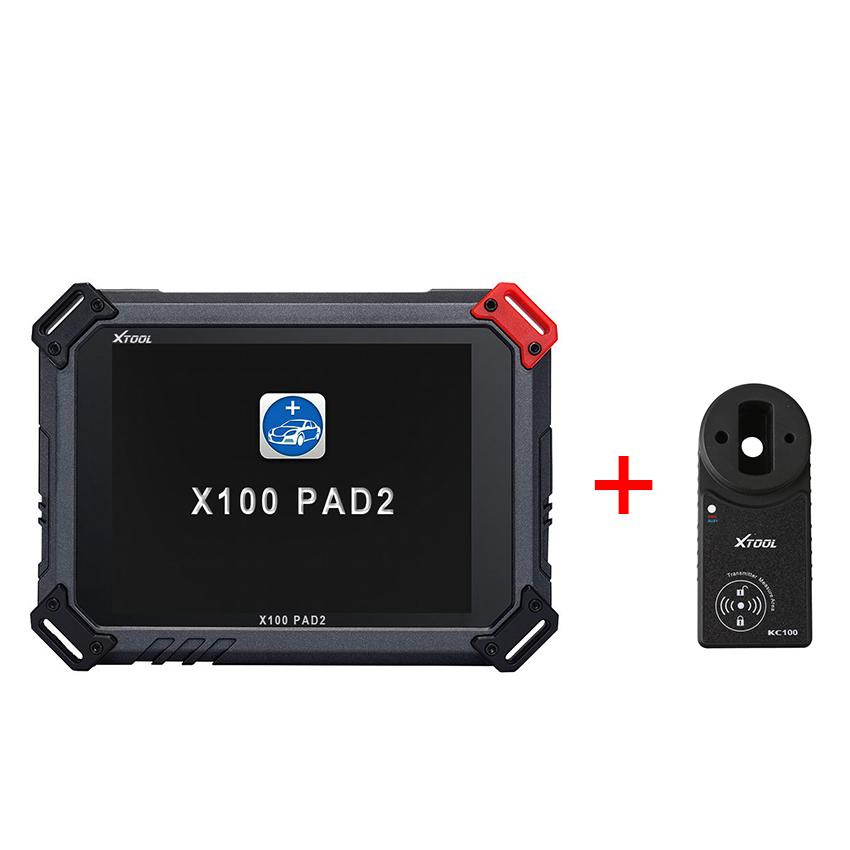

Xtool KC100 adapter working with Xtool X100 PAD 2 full set is verified to program key for VAG 4th 5th IMMO. BTY,
Notice: Not Support Indian Cars.
X100 PAD 2 standard set is optional to choose vag 4th 5th IMMO programming function.
Matched Dashboard Type for 4th ,5th immobilizer of VW/Audi/Seat/Skoda: CDC24C32,NEC24C32,9S12,NEC24C64,
NEC24C64 color screen, Jiangsen, NEC95320, NEC24C64 white screen.
Warning: This is Xtool KC100 must works with Xtool X100 PAD2 key programmer together, on this basis, add IMMO programming Adapter for VW 4&5th cars.
Features:
Key Programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF
PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software
More details:

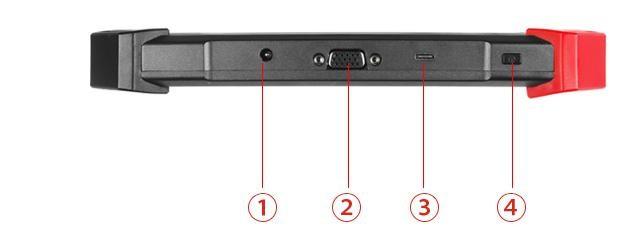

Layout of X-100 PAD 2
1. DC Charging port: Battery charging
2. DB15 Port: Supports wired connection with car by the cable
3. USB Type C Port: Compatible with HDMI TV port
4. Power Button: Power on or off

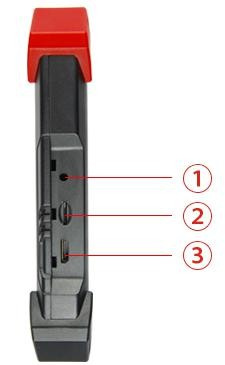

1. Earphone jacket
2. USB 2.0 Port: data synchronization with PC
3. Mini HDMI Port
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU | Quad Core, 1.6 GHz |
| Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| WIFI | WIFI 2.4Ghz |
| Bluetooth | 100 Meters |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50ºC(-4 to 126ºF) |
| Humidity | <90% |
| Dimension: | (L*W*H): 240*177*30mm |
Key Programming Features:
1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
2.Reads keys from immobilizer's memory
3.New immobilizer programming
4.Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6.New remote controller programming
7.With full and strong database for the most important vehicle makes
Applicable vehicles
| Asia: | For Acura, For Honda, For Hyundai, For Infiniti, For Isuzu, For KIA, For Lexus, For Mazda, For Mitsubishi, For Nissan, For Ssangyong, For Subaru, For Suzuki, For Toyota |
| Europe: | For Audi, For Benz, For Citroen, For Ford, For Fiat, For Jaguar, For Lancia, For Land Rover, For Opel, For Peugeot, For Porsche, For Renault, For Romeo, For Seat, For Skoda, For Smart, For VW |
| America | For Buick, For Cadillac, For Chevrolet, For Dodge, For GM, For GMC, For Hummer, For Pontiac, For Saturn, For Ford |
| China | For BYD, For Great Wall Motor, For Brilliance, For JAC, For Geely Cars, For Lifan Cars, For Chery |
Oil Reset Functions Features:
Innovative one-click oil reset for VW, for Audi, for BMW, for Mercedes Seat, for Skoda, for Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support for Mercedes Benz new C Class, E Class models and for Mercedes Benz VITO/VIANO/SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
Support for Porsche Cayenne, Panamera till 2012
Support maintenance light reset for Volvo, for Land Rover.
| for VW, for Audi, for BMW, for Mercedes Seat, for Skoda, for Volvo, etc |
for BMW
F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support for Mercedes Benz new C Class, E Class models and for Mercedes Benz VITO/VIANO/SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc |
| for Porsche Cayenne, Panamera till 2012, or Volvo, for Land Rover |
