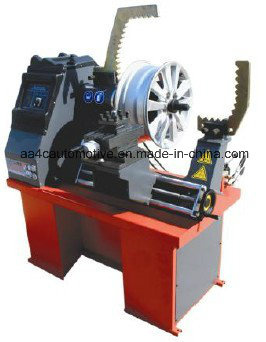

AA4c Rim Straightening Machine with Polishing Unit AA-Rsm595

Name: AA4c Rim Straightening Machine with Polishing Unit AA-Rsm595
Brand: ibuyautoparts.com
SKU: 728427245
Availability: InStock
Rating: 4.7 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

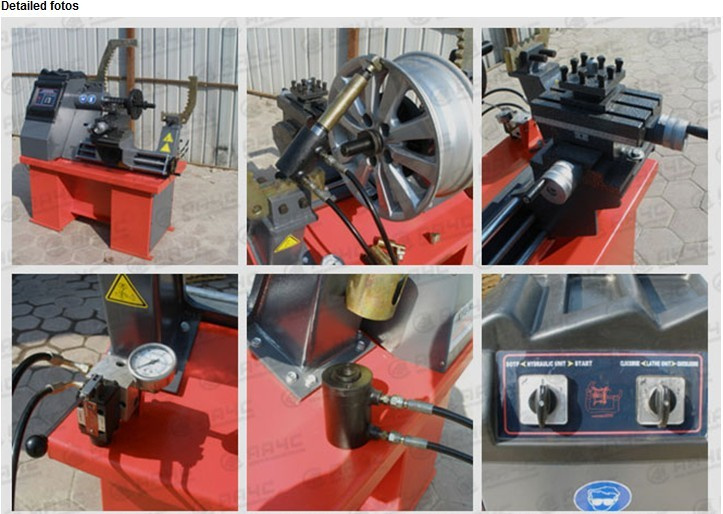

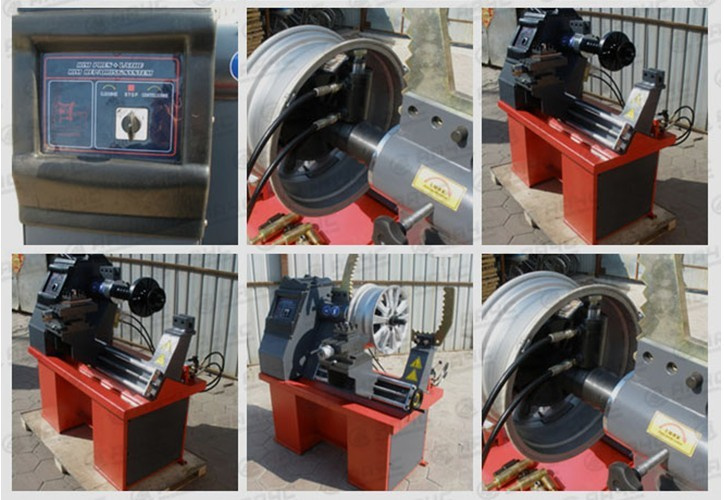

RIM STRAIGHTENING MACHINE with LATHE System
This unique machine is used to correct and straighten all kinds
Of defected steel and alloy rims ranging from 10'' to 22'.
DIMENSIONS
Height 1250 mm Width 1110 mm Length 610 mm

Packing size: 1370x880x1495mm
Weight 370 Kg /400kg

MOTOR SPECIFICATIONS
Mechanic 0, 55 kw, 1400 rpm, 0, 75 HP,
3 phase - single phase, 220V - 380 V
Hydraulic 0, 75 kw 1400 rpm, 1 HP,
3 Phase - single phase, 220V - 380 V
Sound 35 dB
HYDRAULIC PISTON POWER
Total pressure = π R2 x 160 (Working pressure bar)
Total pressure = 3, 14* (3, 15 x 3, 15) = 31, 156kg
Total pressure = 31, 156 x 160 = 4 984, 96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3, 15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines.

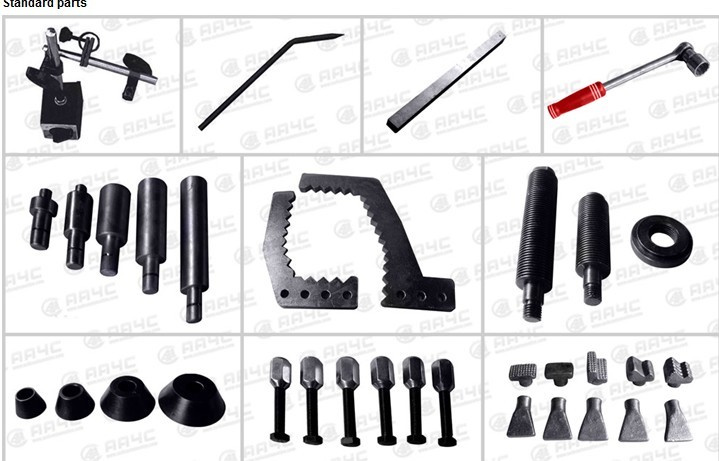

STANDARD ACCESSORIES LIST

Standard Accessories of AA-RSM595
No.	item	Specification	Qty
1	Connecting flanges for different sizes of rims	Rim to center washer	10
		Φ 54	1
		Φ 56.5	1
		Φ 57	1
		Φ 58	1
		Φ 59.5	1
		Φ 60.1	1
		Φ 63.3	1
		Φ 64	1
		Φ 65	1
		Φ 66.6	1
		Φ 72	1
		Φ 72.5	1
2	Gauge		1
3	Pole for positioning the deformed part		1
4	Allen head wrenches	5#6#8#10#12#	1
5	Angular supports		1
6	Square supports		2
7	Gradual supports		2
8	Cutter type supports		4
9	Supports miles		4
10	Lever		1
11	Lathe cutter		1
12	Front supporting seat		1
13	,; ,; Rear supporting seat		1
14	Professional wrench	19#	1
15	Centering ring		1
16	Cross sliding part(including cutter holder)		1 set
17	Flange(including 5 fixing bolt)		1 set

Prod Model:	AA-RSM595
Condition:	New
