9500lbs Ce Cetificated Waterproof 4X4 Winch

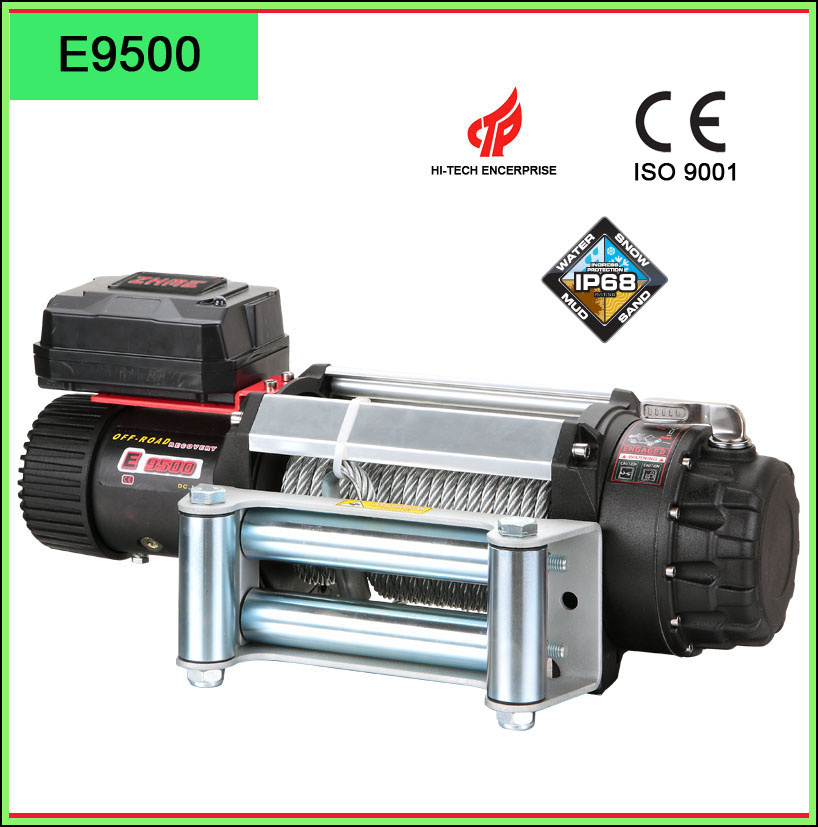

Name: 9500lbs Ce Cetificated Waterproof 4X4 Winch
Brand: ibuyautoparts.com
SKU: 689286211
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 260-300/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Electric Winch E 9500
Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Wire rope 8.2mmX28m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 86 lbs (39 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

Line pull	Lbs	0	2000	4000	6000	8000	9500
Line pull	Kgs	0	907	1814	2722	3629	4310
Line speed	FPM	35.4	17.1	13	9.79	8.01	7.2
Line speed	MPM	10.8	5.2	3.98	2.98	2.44	2.2
Motor current	Amps	80	140	200	260	310	350

Line pull and cable capacity

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	9500	8000	7200	6600
Rated line pull per layer	Kgs	4310	3629	3266	2994
Cable capacity per layer	Ft.	19.6	43	72	92
Cable capacity per layer	M	6.0	13.2	22	28

Prod Model:	E9500
Voltage:	12V DC 6.0HP
Type:	Electric Winch
Power Type:	Series Motor DC
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	RoHS
Pull Direction:	4-Way
Brand:	Zhme

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
