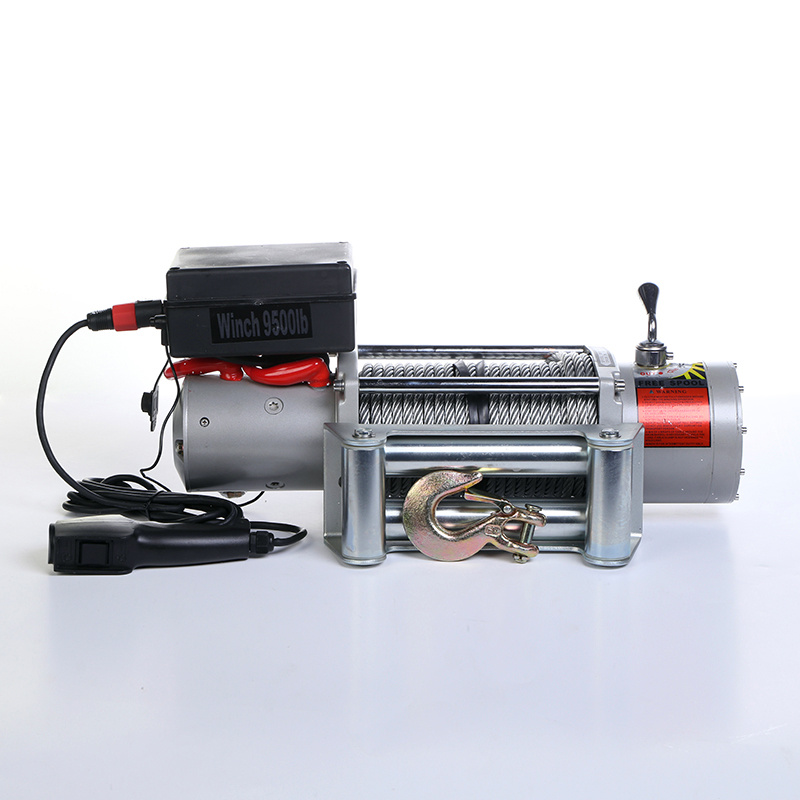

9500lb 4X4 Electric Winch
| Price: |
Negotiable/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
T/T |
Electric winch is vehicle and vessel rescue equipment and multi-functional towing equipment. It is mainly used in special-purposed vehicles such as cross-country vehicles, all-terrain vehicle, motor homes, carrier vehicle, firefighting vehicles, rescue vehicles, road wreckers and pleasure boats and ships. The winch can be used for self rescue and towing and assisting others in the snow, swamp, desert, beach, rocky and muddy mountain road or towing, pulling goods, hoisting in other conditions. It is a necessary safety device for army, police, oil industry, hydrology, environmental protection, forestry, traffic, public security, frontier defense, logistic and outdoor activities.Main technical parameters:
Rated line pulling: 9500lb(4309kg) Single-line
Gear Ratio: 265.2: 1
Gear train: 3-Stage Planetary
Clutch: Sliding Ring Gear
Motor: Series Wound DC 12V motor with 5.5HP/4.0kw output
Control: Remote switch, 9.8'( 3m) lead
Brake: Automatic In-The-Drum
Overall Dimension: (LxWxH) 22" X 6.3" X 10" (560 X 160 X 254mm)
Drum size: Diameter 2.5" (63.5mm) Length 8.82" (223mm)
Fairlead: Included
Cable length: 95ft of 23/64" diameter (29m of 9.1mm diameter)
Mounting Pattern: 10.00 ± 0.015" X 4.50 ± 0.010" (254 X 114.3mm)
Packing
Packing size: 63× 24.5× 33cm
Qty. /CTN.: 1PC
G. W. /N. W.: 42/40kg
| Prod Model: |
XQME-9500 |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Pull Direction: |
Forward |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Certification: |
CE |
| Applicable Environment: |
Snow, Swamp, Desert, Beach, Mountain Road |
Wenzhou Xiangqiang M&E Co., Ltd. is a specialized manufacturer of integrating R&D, production and sales of single-phase electric hoist, high-speed electric hoist, double-hook electric hoist, electric winch, manual winch, manual lifter series products, having the right to independently import and export related products.
Single-phase electric hoist can be used at any places. It is widely used in factories, workshops, homes, warehouses, restaurants, stores or for decoration and conveyance. It can lift goods below 1000kg, especially suitable for hoisting heavy goods from lower floors to higher floors of highrise buildings. It is good-looking, easy to install, small, has simple structure and low noise and uses single-phase electricity as its power source. It is safe and reliable to use. HGS-B series single-phase electric hoist passed the test of China Hoisting & Conveying Equipment Quality Supervision and Inspection Center. We have received the CE, EMC and GS quality certification of the EU issued by TUV Germany, ETL certification of the U. S., C-ETL of Canada and export production license issued by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China.
Electric winch is vehicle and vessel rescue equipment and multi-functional towing equipment. It is mainly used in special-purposed vehicles such as cross-country vehicles, all-terrain vehicle, motor homes, carrier vehicle, firefighting vehicles, rescue vehicles, road wreckers and pleasure boats and ships. The winch can be used for self rescue and towing and assisting others in the snow, swamp, desert, beach, rocky and muddy mountain road or towing, pulling goods, hoisting in other conditions. It is a necessary safety device for army, police, oil industry, hydrology, environmental protection, forestry, traffic, public security, frontier defense, logistic and outdoor activities.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us or visit our website for more information.
