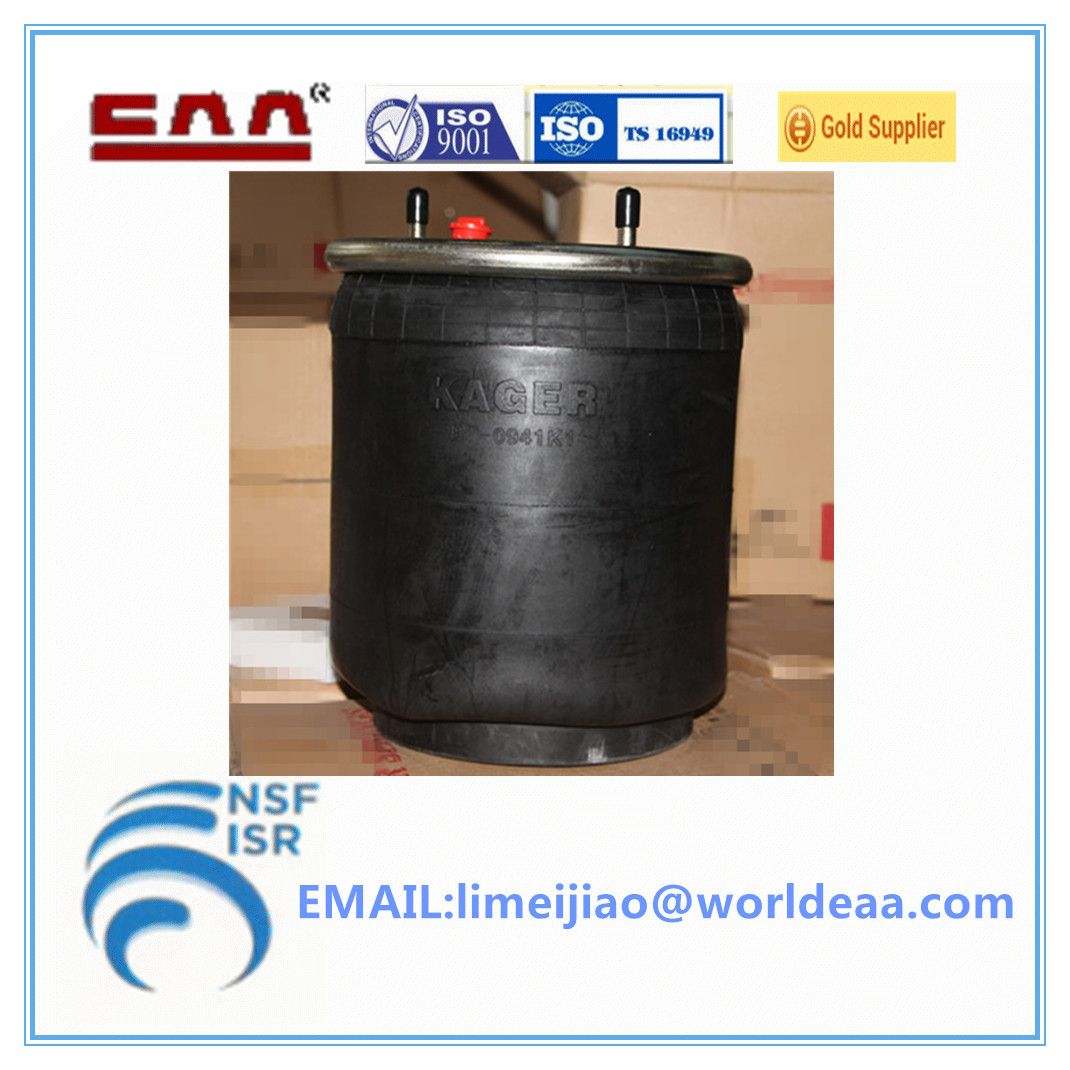

941MB Rubber Air Spring Suspension

Name: 941MB Rubber Air Spring Suspension
Brand: ibuyautoparts.com
SKU: 702377352
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 53/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E8619(E941)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Height:	360mm
Working Stroke:	325mm
Weight:	9.78kg
Part:	Air Spring
Position:	Rear
Type:	Gas-Filled
Spring Type:	Air Spring
Spring Material:	Rubber
Damping Force Direction:	Bidirectional
Application:	BPW
Brand:	Eaa

Product Description

Cross Information	OEM Information	Technical data
CONTITECH :941MB	BPW :05.429.40.03.0	Weight: 9.78kg
FIRESTONE STYLE NUMBER :1T17D-8.3	BPW:05.429.40.59.1	Design height:360mm
FIRESTONE ORDER NR :W01-M58-861 9		Deflection(Hight min):285mm
PHOENIX :1DK21		Deflection(Hight max):610mm
CF GOMMA:1TC300-36		Working stroke:325mm
GOODYEAR :1R11-762		Measurement d max:305mm
DUNLOP FR:D11B38		Space required:325mm
		Loading cap.at5.0bar:2.3kN
		Loading cap.at7.0bar:28.5kN

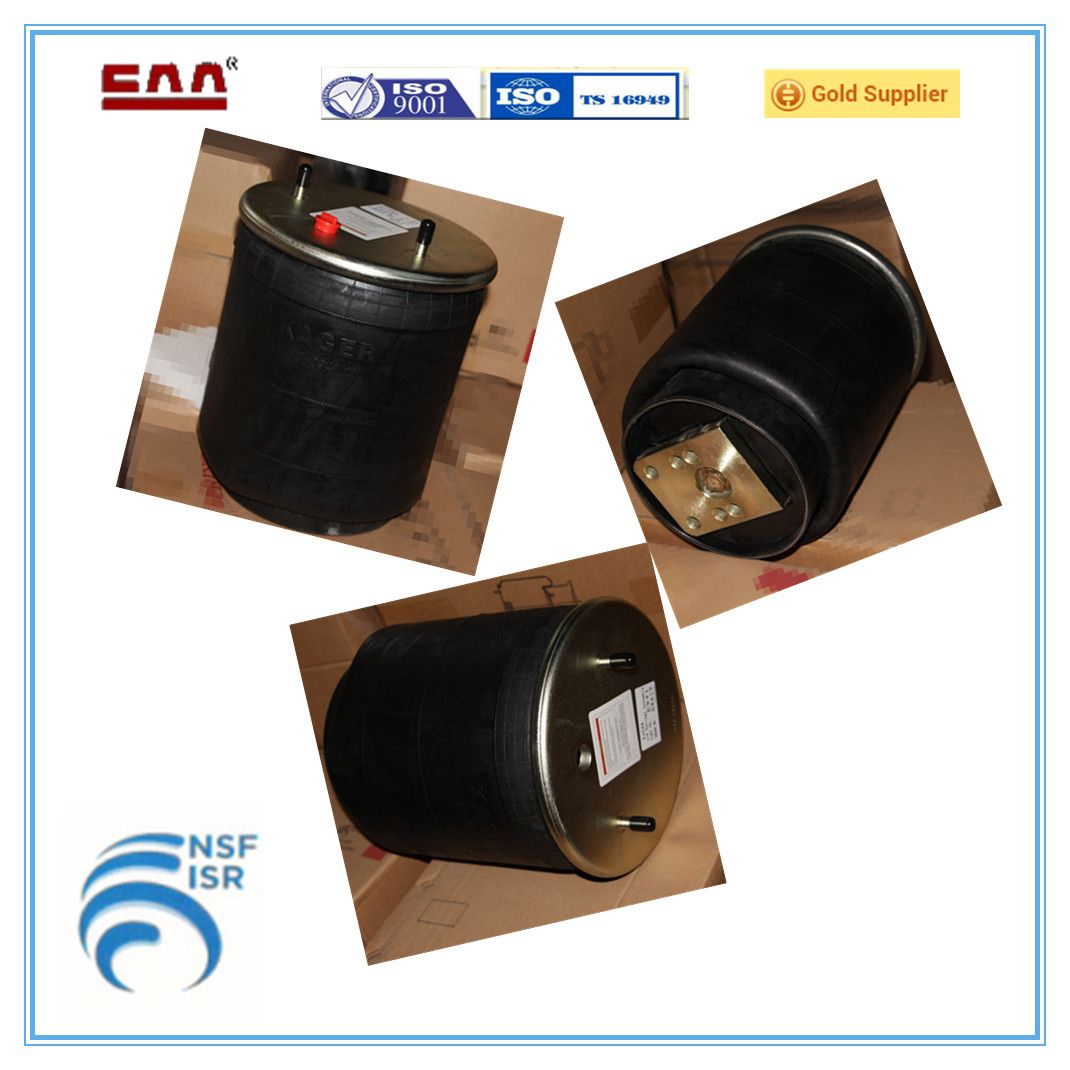

EAA rubber air spring

Best service for you!
1.Providing the right products for you in professional suggestion

2.most considerate service for you

3.Supporting sample to check before order

4.one year prodcuts warrenty

5.timely delivery

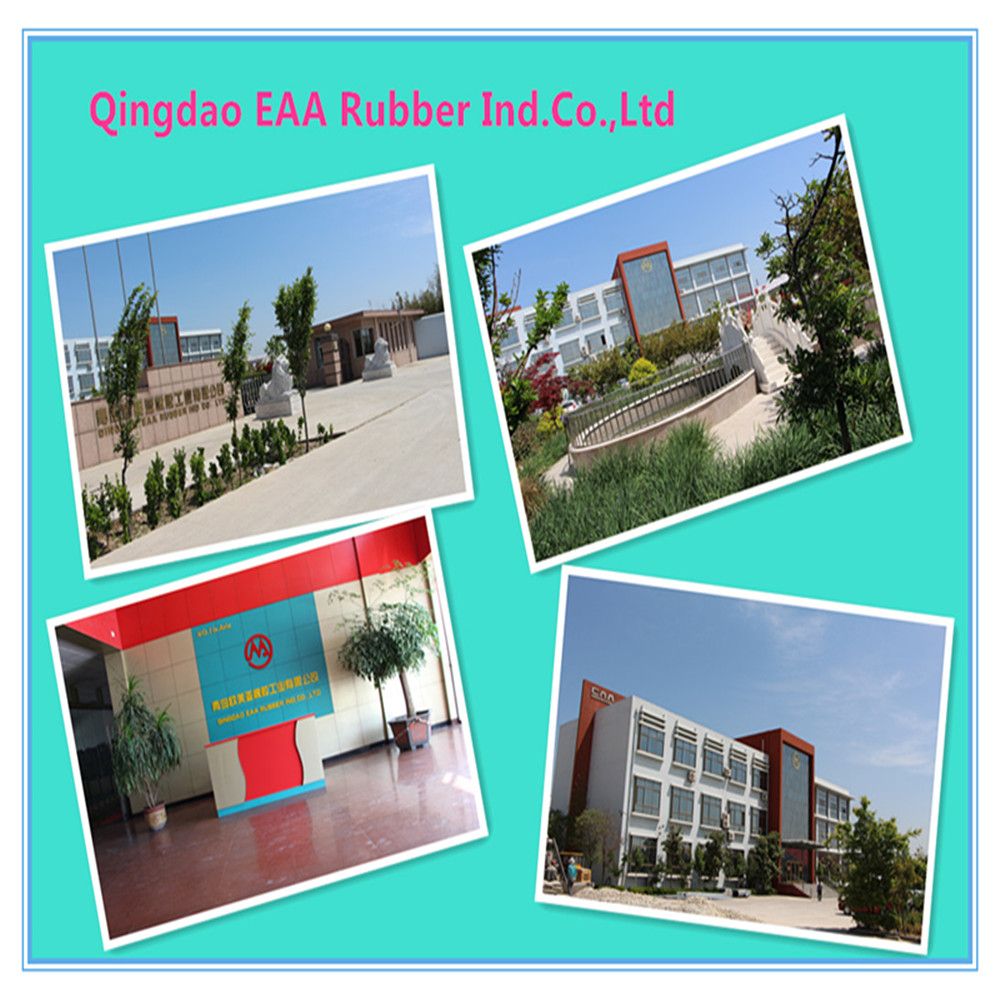

We are Qingdao EAA Rubber Ind. Co., Ltd., who have great power and experience in supplying and producing all kinds of air spring and Tyre in China, now our product range reaches almost 300 types which are equivalent to Conti, firestone and Goodyear...Fit for bus, truck, trailer and industrial application. Meantime, we have exported all kinds of air spring to America, Europe and Southeast. Asia with premium quality and competitive price for the OEM and aftermarket.

We are always prepared to increase our range of products by particularly requested articles or to produce according to particular samples or drawings in accordance with our customers' requirements.

As a global strategy, we are planning to find more partners in oversea markets, so if any interest, please feel free to contact us.
