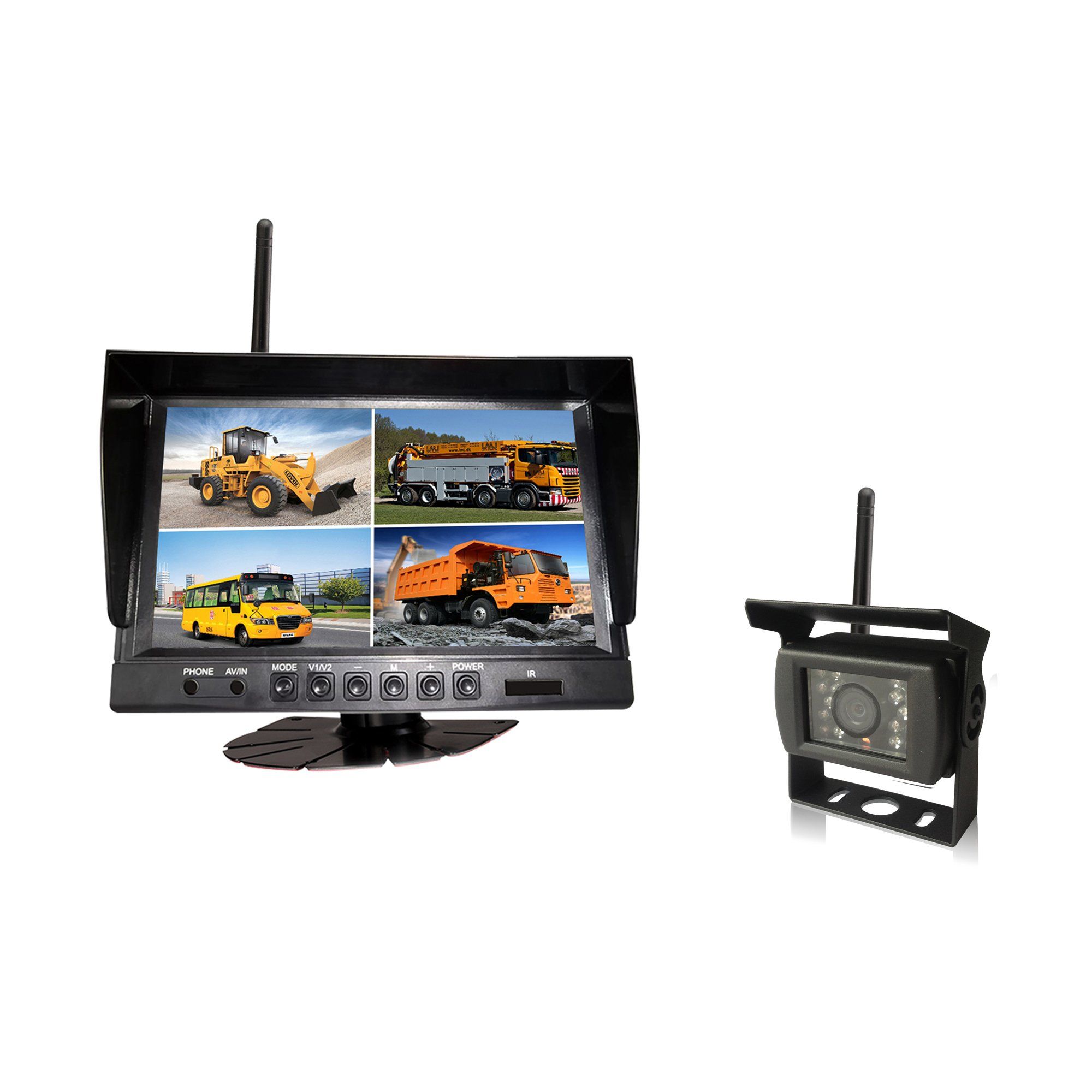

9 Inch 4CH Digital Wireless Monitor and Wireless Waterproof Camera System

Name: 9 Inch 4CH Digital Wireless Monitor and Wireless Waterproof Camera System
Brand: ibuyautoparts.com
SKU: 731633832
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 130/Set
Min Order:	100/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-792RSW

Product Description

1 set product including 1pcs monitor, 1pcs camera, 1 pcs extension cable and other accessories( optional )

1. No interference digitalsignal
2. Frequency: 2400MHZ~2483.5MHZ
3. Auto scanning, auto pairing
4. Distance: 100M ( barrier-free)
5. 4CH video, quad screen/Dual screen With three triggers
6. Built to withstand the shock and vibration associated with industrial applications
7. Dust and Waterproof design,all connectors are waterproof
8. Meet the requirements for hot, cold weather also shock and vibration
9. 20G force for vibration an 100G for shock

Spec of 9" LCD monitor:

1. Resolution: 800 X 3 (RGB) X480
2. Contrast: 300:1
3. Pixel pitch: 0.2475 ( H) X 0.2335 (V )
4. Viewing angle U:60/D:70 L/R:75
5. Input power: DC10-32V
6. System: PAL and NTSC
7. Shock resistant, specifically design for mobile use
8. Picture display format: 16:9
9. The display with three video frequency input Automatic/manual switcher
10.Includes flat surface / in-dash and adjustable universal mounts

11.Operation temperature: -30ºC~ +70ºC

Specification of camera:
day and night camera
1. COLOR sensor
2. Waterproof: IP69K
3. System:NTSC:510x492,PAL 500X582
4. Resolution: 540 TV Lines
5. Minimum Light: 0 Lux(LED ON,18pcs IR)
6. Electron shutter: 1/100,000(s),ON/OFF
7. S/N ratio; More than 48 Db
8. Video output: 1Vp-p 75Ω
9. 120 degree
10. Operating voltage: DC10-32V

Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd

Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.

MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for

- Commercial and School Buse

- RV's and Motorhomes.

- Cargo and Delivery Vans.

- Trucks and Trailers.

Products:

1. Trailer camera system

2. Forklift camera system

3. HD heavy duty camera system in wired and digital wireless

4. Mobile DVR

5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat

6. Recordering 4CH wireless camera system

MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.

MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).

MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
