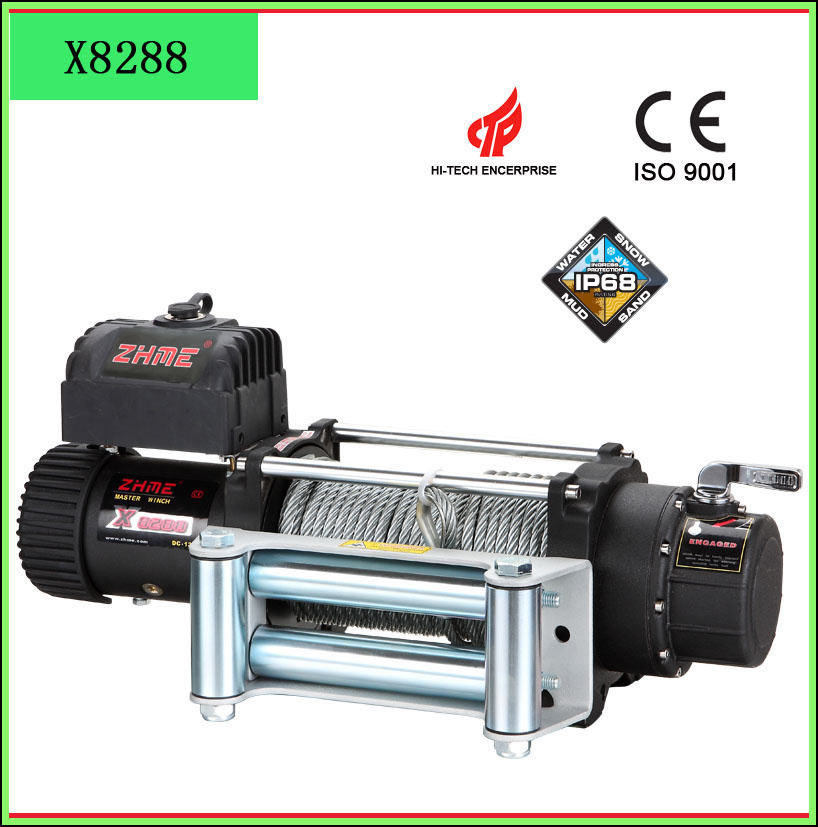

8288lbs Cable Winch for Truck with Good Quality

8288lbs Cable Winch for Truck with Good Quality
Price: US $ 250/Piece
Min Order: 15/Piece
Pay Type: L/C,T/T
Rated line pull: 8288lbs (3760 kgs) Single line.

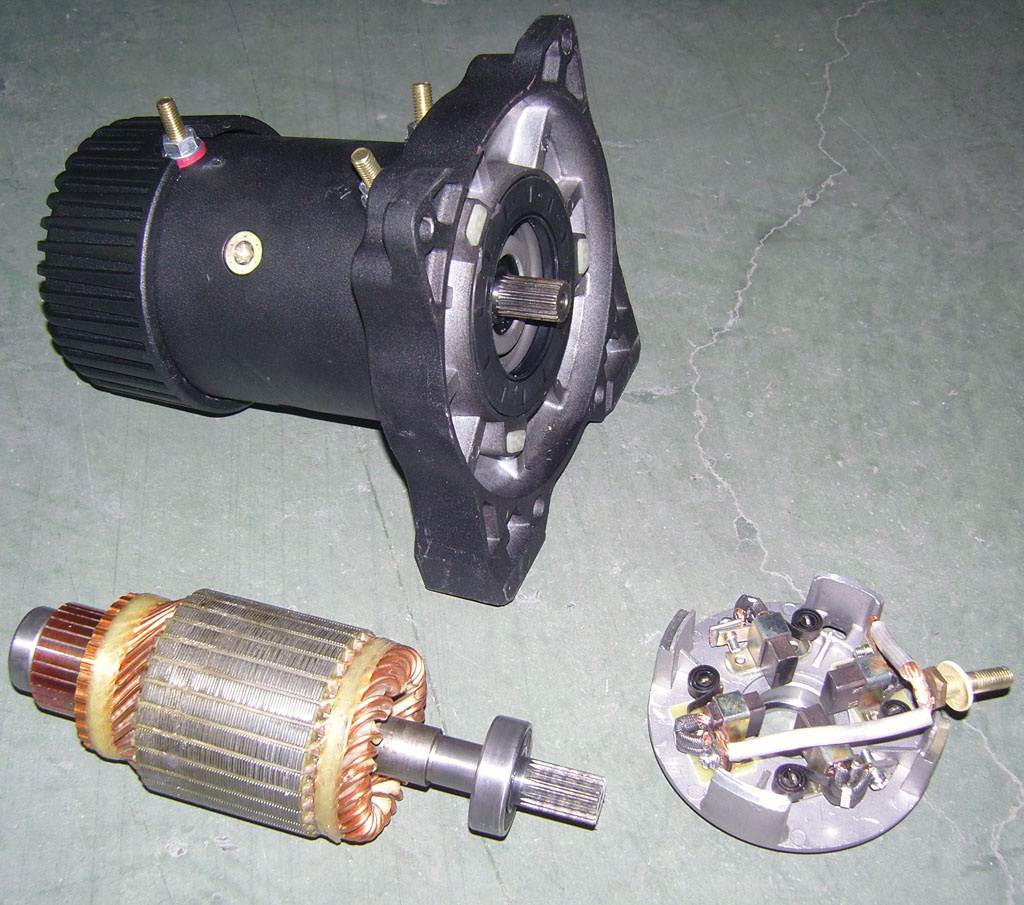

Motor: Seires Wound 6.8 HP/5.0 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 138: 1
Clutch Sliding Ring Gear

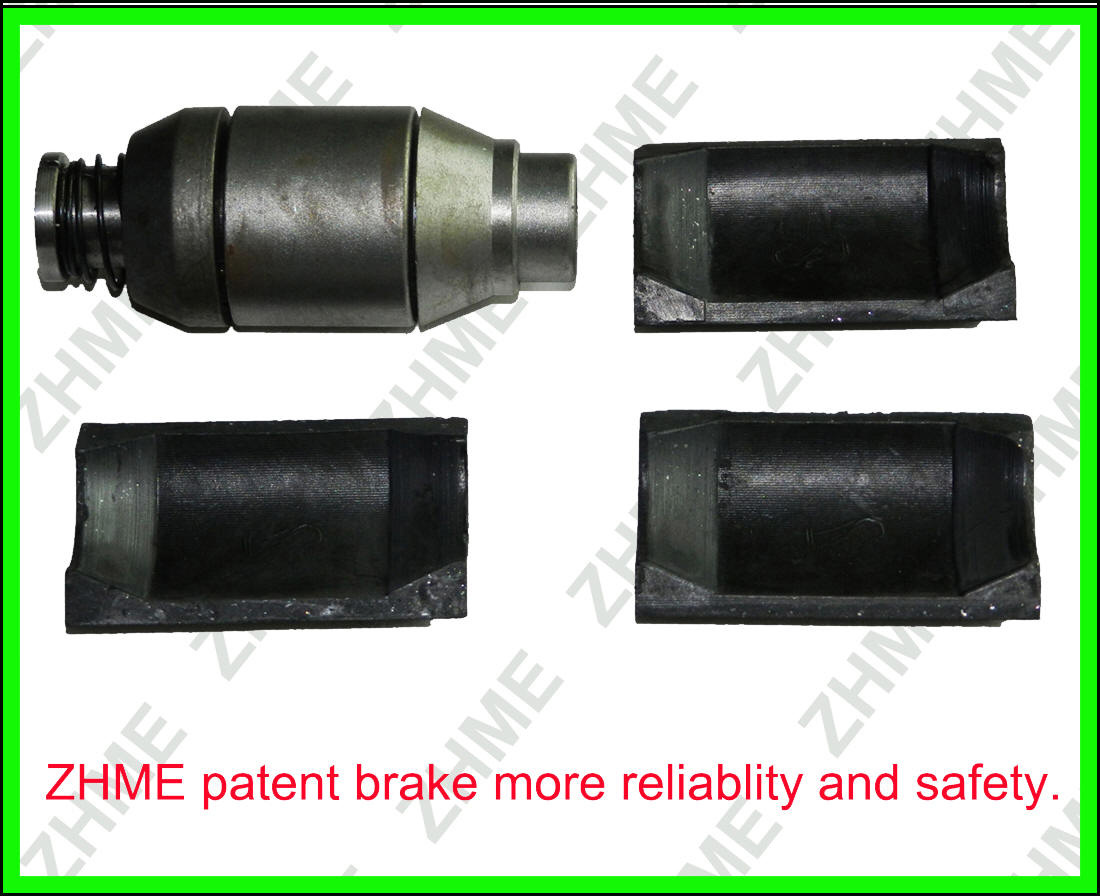

Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: wire rope 7.8mm*30m
Drum size: 3.0"X 9.0" ( 76mm X 224mm)
Dimensions: 23.7"X6.6"X8.7"(603mm X 168mm X 220mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 75lbs (34 kg)
Packing: 680mm X 360mm X 260mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

Prod Model: X8288
Pallet: 15 Per Pallet
Type: Electric Winch
Power Type: Series Motor DC
Pull Direction: Forward
Working Voltage Of Electric Winch: Low Voltage
Certification: CE
Brand: Zhme
Applicable Environment: 4-Way
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
