Don't miss the opportunity to check our full range of tire repair products.
HOPSON TYRE REPAIR will always surprise you!
General Info.

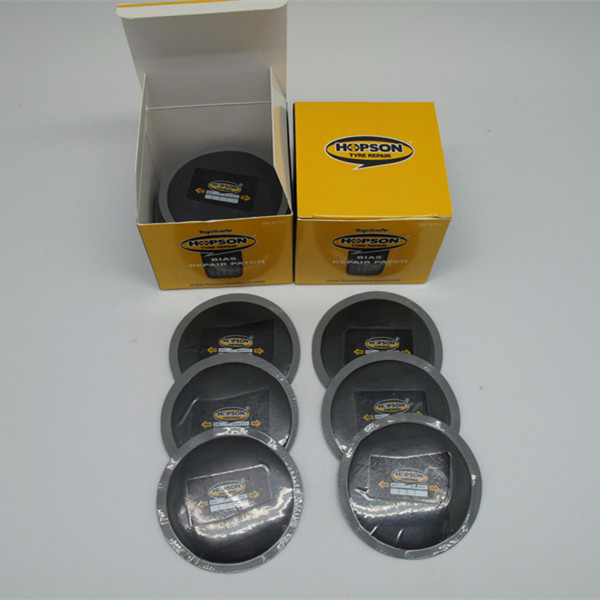

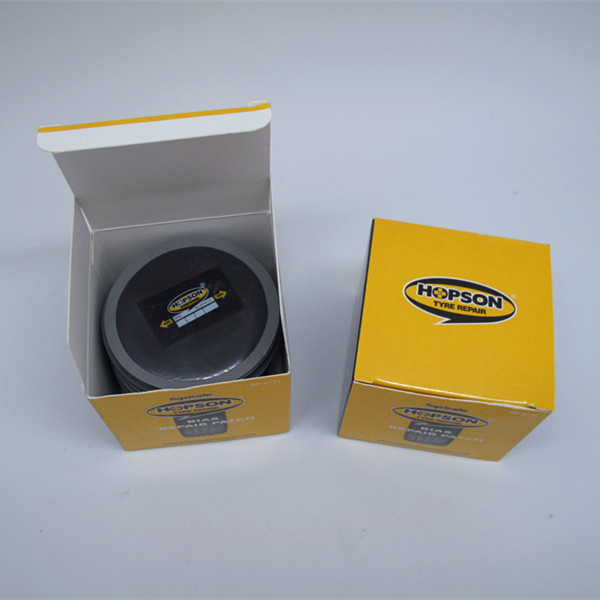

Product name: 75mm cross ply tyre repair patch
Part No.: BP-R751
Specification: 75mm, 1ply
Packaging: 20pcs/box, 24box/ctn
Selling Points
1. Each reinforcing ply is protected and encased in a molded ply package making each unit strong while remaining flexible.
2. Designed to vulcanize chemically or in low temperature systems.
3. Gray vulcanizing gum, blue poly backing.
4. Excellent flexibility, greater strength, superior construction.
Quality Guaranteed
Excellent quality, similar to Rema Tip Top and Tech; Samples can be sent for customer's testing and evaluation.
Description
These 75mm bias repair patches can be used on tubeless or tube-type tyres. They offer excellent flexibility, greater strength and construction and have been proven safe and dependable by millions of on-the-road miles. Manufactured with a ply of rubber between the fabric and cushion gum which acts as a float or shock absorbing ply. Repair unit construction allows for easy application and enables repairs to be made closer to the tyre bead, eliminating the need for a separate sidewall repair unit.
INSTRUCTIONS
- Inspect tire for repairability using tire manufacturer or HOPSON LAB guidelines. If repairable, mark injury with crayon and carefully remove injuring object.
- Probe injury to determine exact size and direction, removing all debirs.
- Select the appropriate repair patch for injury and type of tyre. Apply prebuff cleaner to repair area and use rubber scraper toremove dirt and mold lubricants. Using Carbide Cutter, drill injury channel 3 times from inside then 3 times from outside, making sure all damaged and rusted cables have been removed and only good rubber remains.
- Cement the injury channel with Chemical Vulcanizing Cement and install the appropriate vulcanizing insert. Trim flush with the tire innerliner. Mechanically buff outlined repair area to a velvet-like texture. Remove buffing dust with a clean brush or vacuum. Apply Chemical Vulcanizing Cement to buffed area, working into rubber and ALLOW TO DRY THOROUGHLY.
- Remove backing and center repair patch over injury and thoroughly stitch down from center out to remove trapped air.
- Finish repair by applying Inner Liner Sealer around edge of repair patch the to overbuff area.
| Part No. | Size(mm) | Description | Box Qty | Case Qty |
| BP-R601 | 60 | 1Ply | 25 | 24 |
| BP-R751 | 75 | 1 Ply | 20 | 24 |
| BP-C902 | 90×90 | 2 Ply | 10 | 12 |
| BP-C1002 | 100×100 | 2 Ply | 10 | 12 |
| BP-C1304 | 130×130 | 4 Ply | 10 | 12 |
| BP-C1655 | 165×165 | 5 Ply | 10 | 12 |
| BP-C2407 | 240×240 | 7 Ply | 5 | 12 |
| BP-C2957 | 295×295 | 7 Ply | 5 | 12 |
| BP-C3457 | 345×345 | 7 Ply | 5 | 12 |
| BP-C3909 | 390×390 | 9 Ply | 5 | 12 |
| BP-C4509 | 450×450 | 9 Ply | 5 | 12 |
We have passed American ASTM Standard, European EN71 Standard, SGS Certificate and Quality Management System ISO9001: 2000. Our products are focused on environmental protection. We are able to provide products that meet your strict requirements. Our products reflect our dedication in each critical step of production process, including artwork design, manufacture, fill, pack and transport. We offer our perfect products to satisfy all valued customers with both the best quality and competitive prices. We are committed to providing you with the most suitable products and make you more appealing to ultimate consumers.
Hopson Chemical Industry Limited is a specialized adhesives and high technology manufactory which located at east China of Ningbo City. We are mainly a supplier of cyanoacrylate adhesives, epoxy resins, tire repair cements and other chemicals for Chinese leading market. We have more than ten years of experience in the research and development of high property adhesives and high molecular chemicals and kept this sector for its highest technological level.
We welcome you to inquire us by call or mail and hope to build a successful cooperation relationship.
