Shenzhen Brvision Technology Co., Ltd. >> 7" Car Rear View Camera System/ Auto Shutter CCD Camera

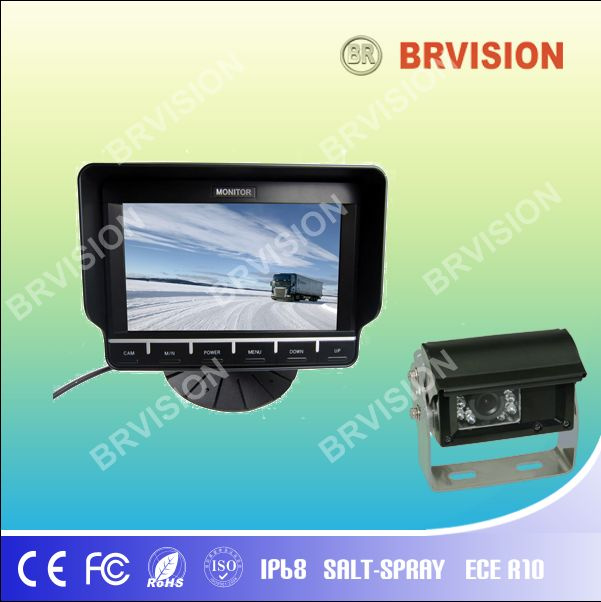

7" Car Rear View Camera System/ Auto Shutter CCD Camera

7
Price: Negotiable/Set
Trade Terms: EXW
Min Order: 1/Set
Pay Type: T/T,Paypal

7 Inch Truck Rear View Camera System/ Auto Shutter Camera
7 " digital Panel TFT LCD monitor with built-in control box.
Resolution : 800x R.G.B x 480
High brightness : 450 cd/m2
Contrast Ratio:400:1
Aspect Ratio : 16:9
Color system: PAL/NTSC(selectable)
With soon respond (ms) (at 25ºC) :2ms
Automatically switches to the camera when triggered. Mirror/Normal image can be set in the MENU for each camera separately.
Auto dimming function.
Power requirement: 12/24V DC
With high-low voltage protection
With short-circuit protection



BR-RVC15

Camera Specification:

-Type High resolution backup camera

- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy


Screen size7 inch
Resolution800*480*RGB
SystemPAL/NTSC automatically
Audio and video4 video/1audio input  Quad images,2/3/4 image optional
OSD menuLanguage,brightness, contrast, trigger priority delay display setting
Luminance250cd/SM
Working temperature-20°C-+70°C
Storage temperature-30°C-+80°C
Voltage12V-24V DC
Connector 4 pin or RCA
Accessoriesuser manual/remote controller/powr calbe/sunshade/scre




Prod Model: TM7002&RVC15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 7 Inches
Definition: 420TVL
Chip: CCD
Waterproof Grade: IP68
Interface: 4 Pin Connector
Function: Auto Shutter
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
