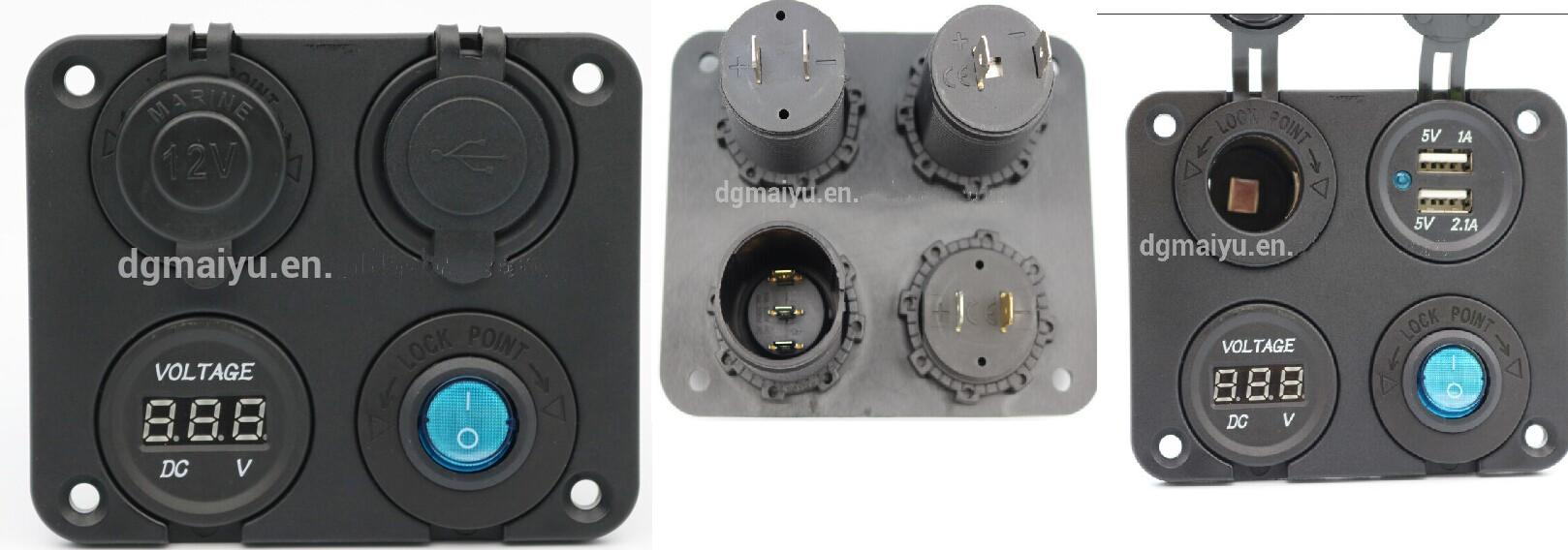

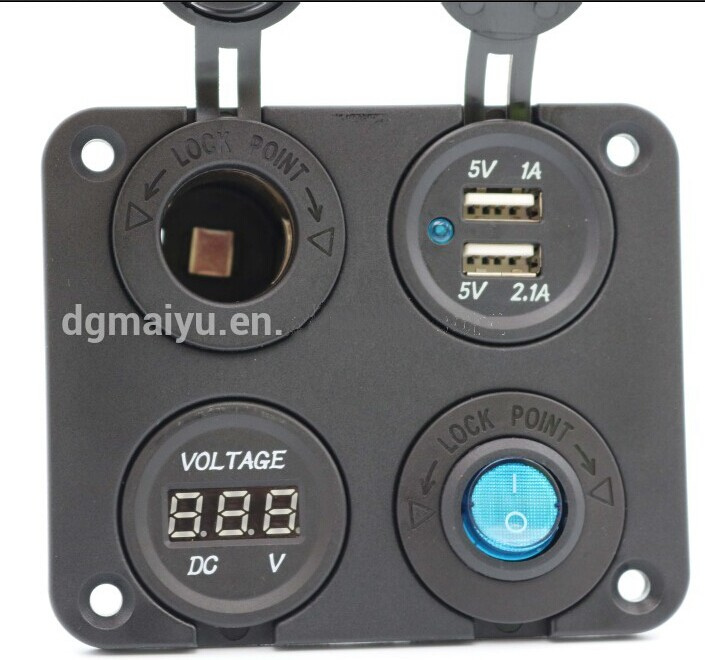

6.2A Dual USB Chargers + LED Switch -Panel Mount Marine 12V Boat Power Outlet

The switch turns on and off the assembly. Draws no power when the switch is off.

LED Illuminated 12 Volt Power Socket.

The interior of the socket glows blue ( red available upon request) when power is applied.
For Motorbike Car/Boat/ATV/UTV/Camper/Caravans/ Travel Trailer etc
Specifically designed for marine and motorcycle applications
UV stabilized nylon housing with rubber splash proof tight fitting front cap
2 pole nickel plated terminal connectors.  0.250 male spade type.
Works wth all 12 volt accessory plugs.
Rated for 15 amps at 12 volts peak 20 amps. draws 5 ma.

Dual USB Charger
Comes with front cap and heavy duty construction.
UV Nylon Body.
Suitable for interior or exterior use.
Suitable for charging GPS, IPhone, IPod, Mobile Phones and other digital devices
Specification:
2 port USB Socket
Waterproof Design
Power Input: DC 12V-24V
USB Socket I Power Output:DC 5V 1A
USB Socket II Power Output: DC 5V 2.1A
Output: 5V 3.1A DC(Total
Waterproof USB Cap

DC Voltmeter
Display: segment LED digital tube, lamp display is blue, red available upon request.
Monitors the state of your battery between full charged and discharged
Can indicate a poor or bad charging system. Tells whether your battery is holding a charge or not
The meter has easy to read LED segments and connect to your 12 volt system.

The meter draws nominally 10 ma. and the range is 0-35 vdc.

Specifications

Power Socket×1

12V Cover (Marine)×1
2 Port USB Socket×1 (5V 1A+ 5V 2.1A)

USB Cover×1

Voltmeter Socket×1(Red or Blue or Green)
Switch×1

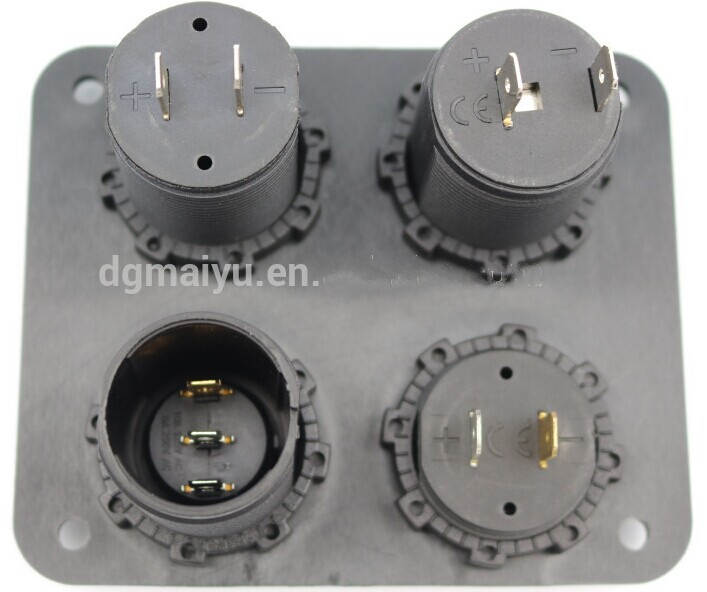

Power Socket (Without the base)×1
Standard Nut×4
Four Hole Rear Panel×1


Details:

• 100% Brand new and high quality
• Widely used with electric equipment for power supply:Vehicle,GPS, mobile phone, camera, mp3 (cannot smoke)
• Wiring kit for cigarette lighters to install in any 12V-24V motorbike, Boat, Riding mower, tractor or car.
• Apply to all USB charging mobile phones or other electronic products. Run multiple accessories at one time, very convenient and easy to use.
• Multifunvtional product, perfect for travel use.

• Overall Size: about 10.5 x 4.5 x 6cm
• Input: DC12V-24V.
• Barrel inner diameter:2.1cm/0.83"
• Barrel inner length:3.6cm/1.42"
• USB Output Voltage: DC 5V
• USB Output Current: 2.1A/1A
• Compatible with: for iPhone / 3G / 3GS / 4 / 4S, for iPad 2 / 3, The new Pad, for iPod touch series, for iPod Nano series, for iPod classic series or other 5V charging input voltage devices, such as, Bluetooth headsets, MP3, MP4, for Nokia, for Samsung, for Motorola mobilephones, etc.
