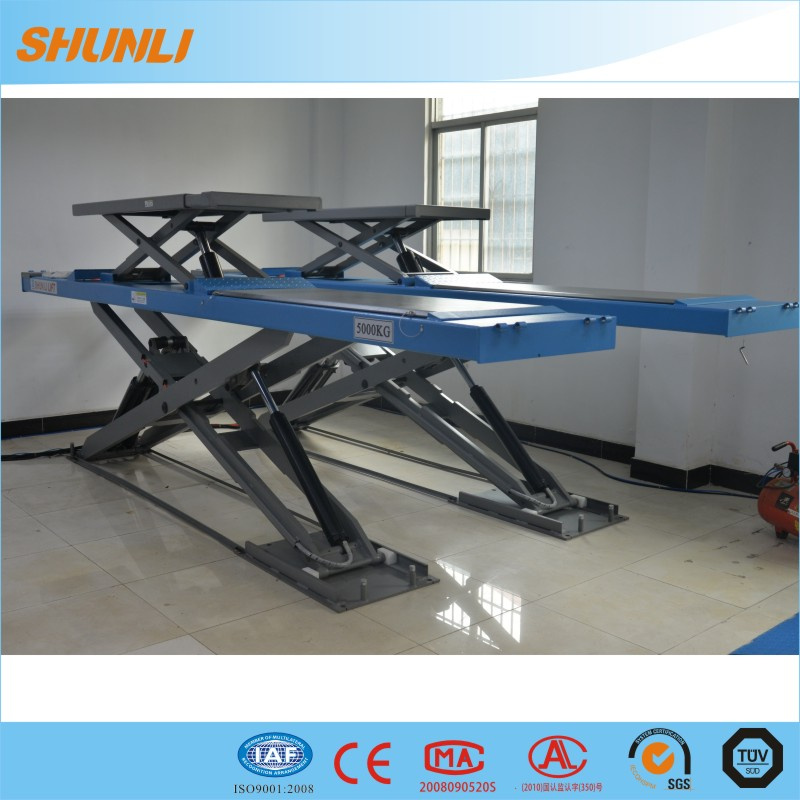

5ton Surface Mounted Alignment Long Scissor Vehicle Lift with Ce

Name: 5ton Surface Mounted Alignment Long Scissor Vehicle Lift with Ce
Brand: ibuyautoparts.com
SKU: 816998235
Availability: InStock
Rating: 4.9 (62 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specification

1.    Ultra thin structure ,only 140mm above the ground at the lowest level
2.    Design and manufacture according to the introduction of Italy technology;
3.    8 pieces of cylinders, double hydraulic balance system and mechanical safety with automatic unlock are equipped.
4.    24V safety control circuit
5.    Laser cutting whole-plate platforms, more accurate and stronger
6.    Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
7.    Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe.
8.    Components are made by laser cutting machiner or other CNC equipment.
9.    Alloy solid steel X structure, good rust resistance and not easy to deformation
10. Shot blasting and high temperature baking poweder coated surface finish

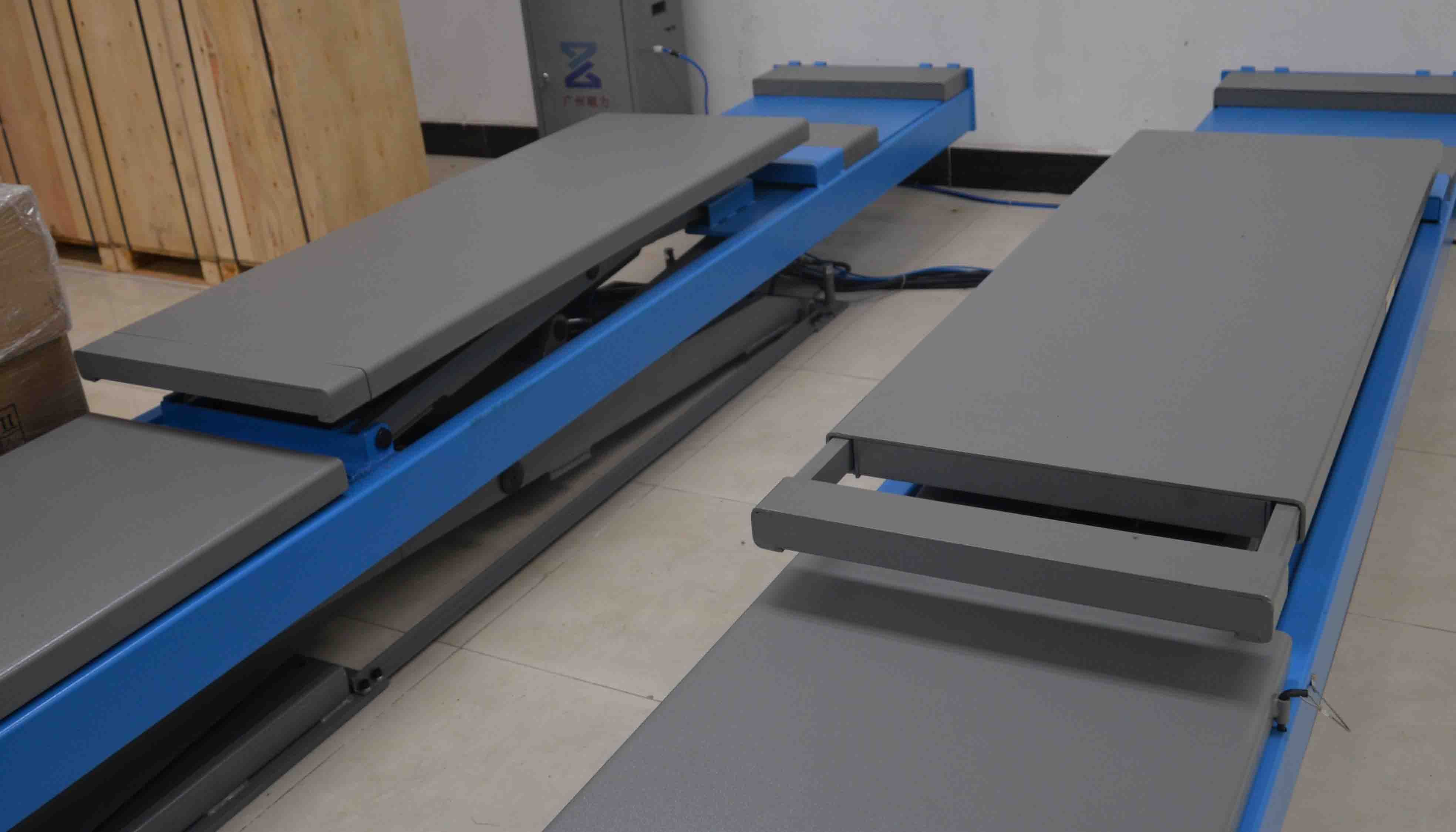

11. Second-level extensible platform
12. Wear-resisting bearings, polymer wear-resistance slider
13. Optional infra-red electronic leveling sensor and anti presser foot device

Model	Lifting Capacity	Lifting height (main machine)	Length of platform (main machine)	Width of platform (main machine)	Lifting height (sub machine)	Length of platform (sub machine)	Width of platform (sub machine)	Motor Power	Pressure of air supply
SHL-Y-J-50CCBL	5000kg	1810mm	4500mm	640mm	500mm	1540-1750mm	600mm	380v 2.2kw /220v 2.2kw	0.4-0.6MPa

We are your best choice
Believe us ,your project can be concluded with happy endding in our company.

Prod Model:	SHL-Y-J-50CCBL
Lifting Time:	60-30s
Initial Height:	140mm
Main Platform Length:	4500mm
Sub-Lift Platform Length:	1540-1750mm
Main Platform Width:	640mm
Sub-Lift Platform Width:	600mm
Lifting Height:	1810mm
Lifting Capacity:	≥5T
Certification:	ISO
Design:	Scissor
Type:	8 Cylinder Hydraclic Lift5
Brand:	Shunli

GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.

In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.

With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.

We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
