SINO MACHINERY has been supplying more than 500 sizes Wheel Rims, including Snow Wheels,Trailer Steel Wheels,4x4 Wheels, Passenger Vehicles Wheels, Agricultural Wheels, Forklift Wheels and so on. Product Description15 inch bead lock steel wheel with 32 bolts.1. Material: Alloy2. Size:16X7, 16X8, 16X10, 16X14.3. Place of Origin: China (Mainland)4.Bolt No.: 4,5,6,85. PCD: 5-114.3/5-139.7/5-150/5-165.1/6-139.7/ 6-114.36. CBD: 84/110/113/1237.Offset: -25-238. Color: black, any color for bead lockPackaging & DeliveryPackaging Details: By palltes with plastic wrapping
Delivery Detail: Within 30 days after depositSpecifications15 inch bead lock steel wheel with 32 bolts.1. Tube&tubeless wheel rim with different size

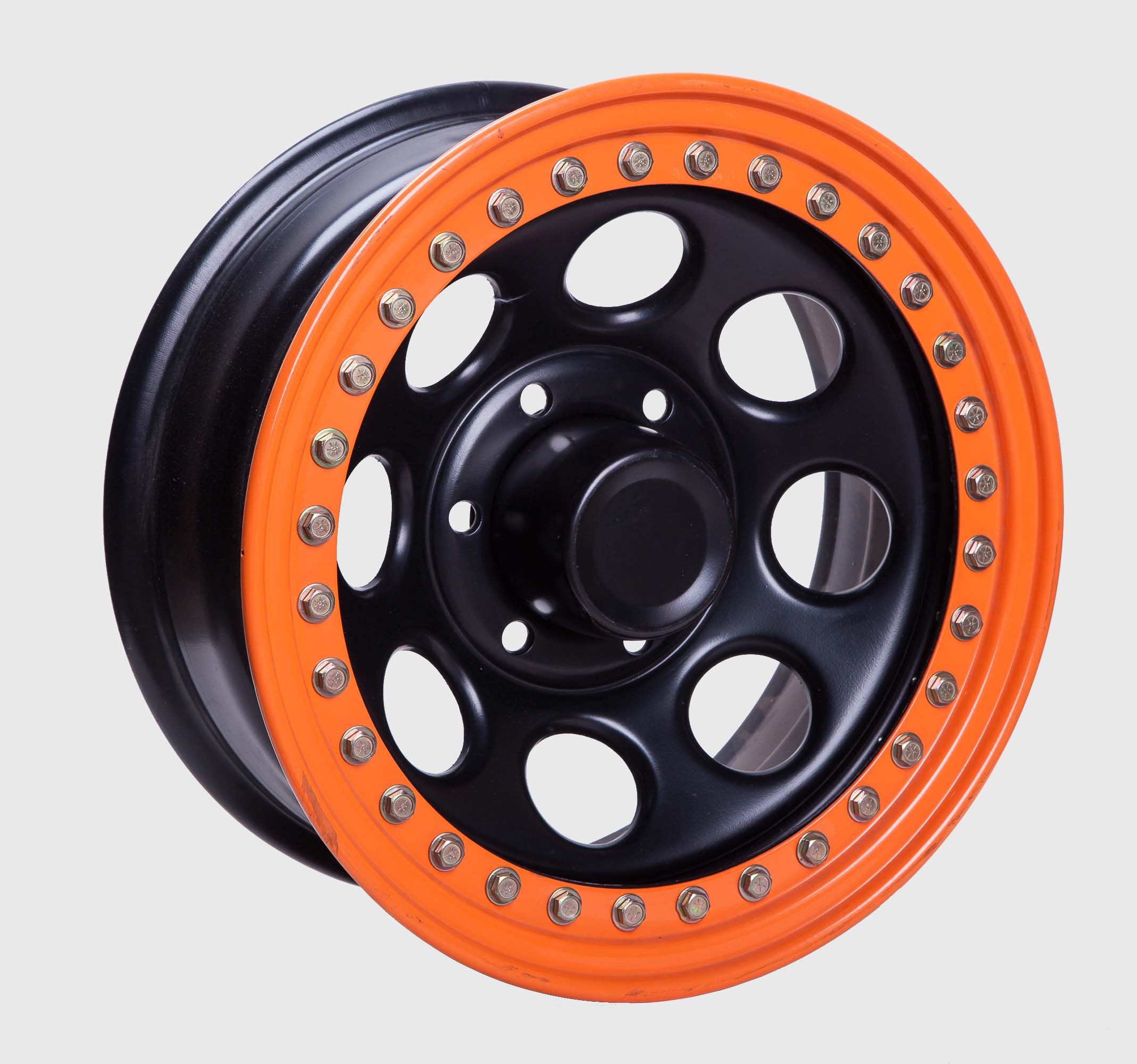

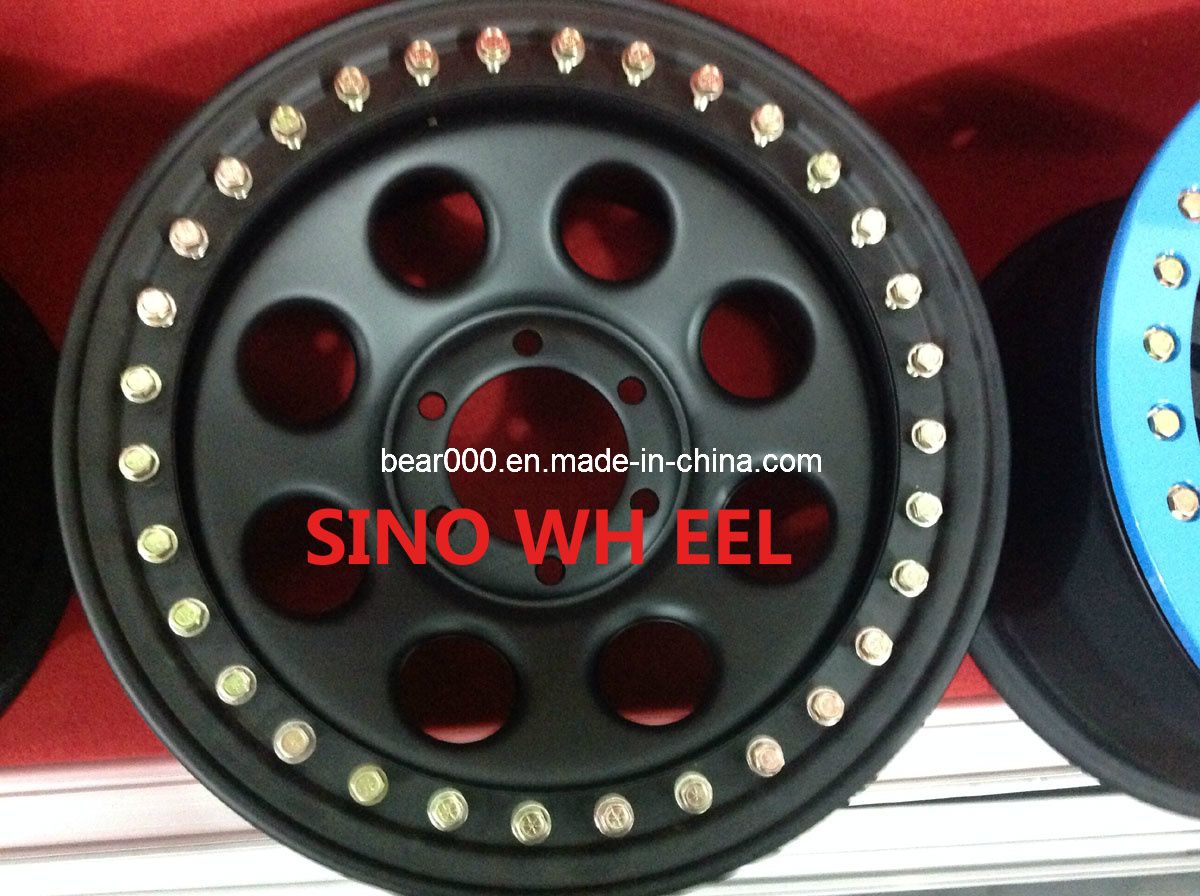

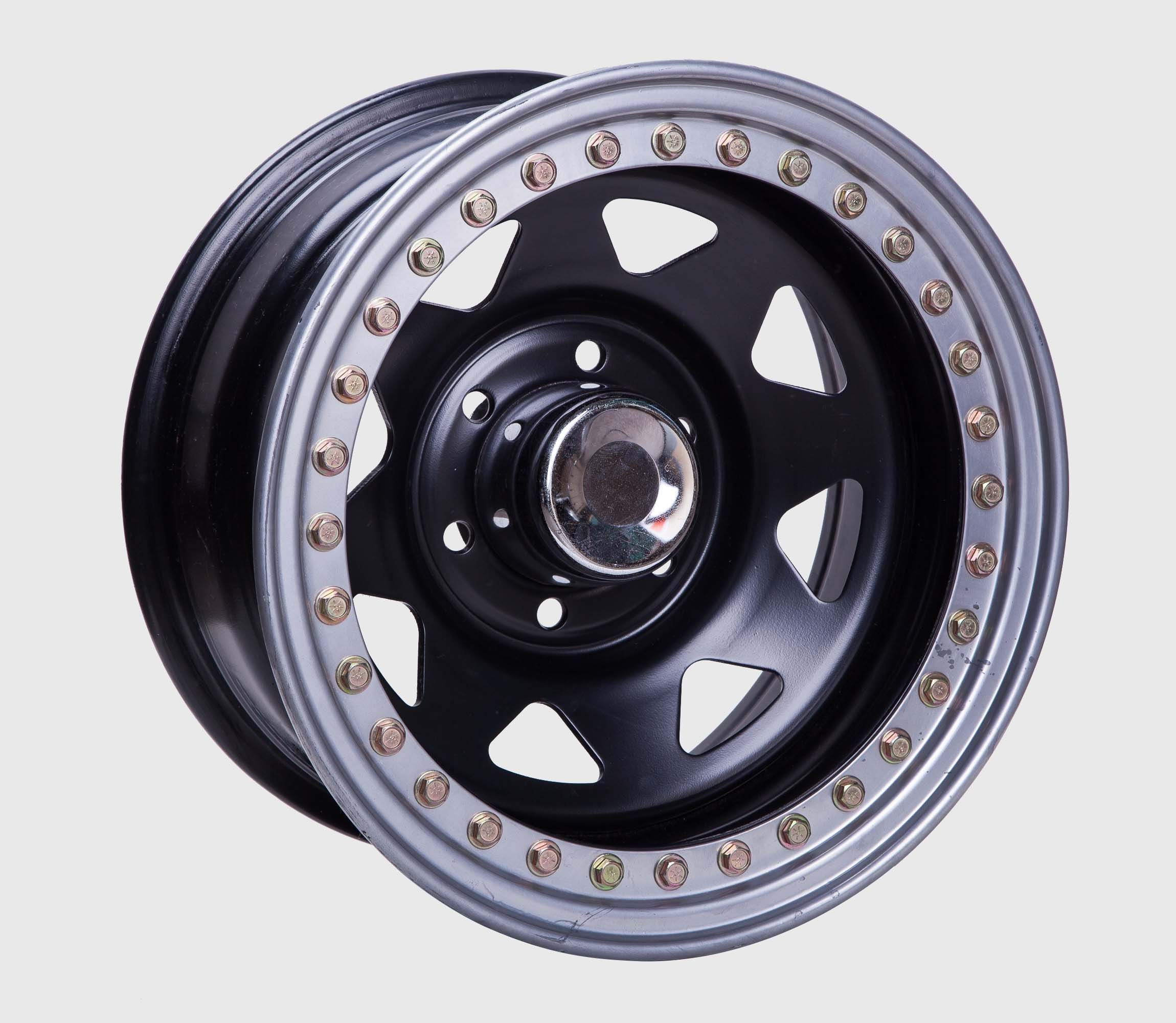

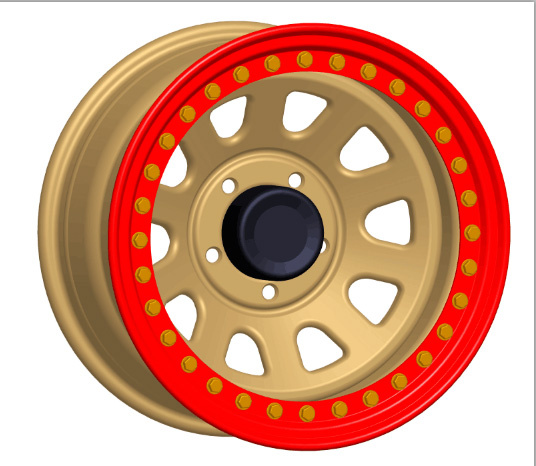

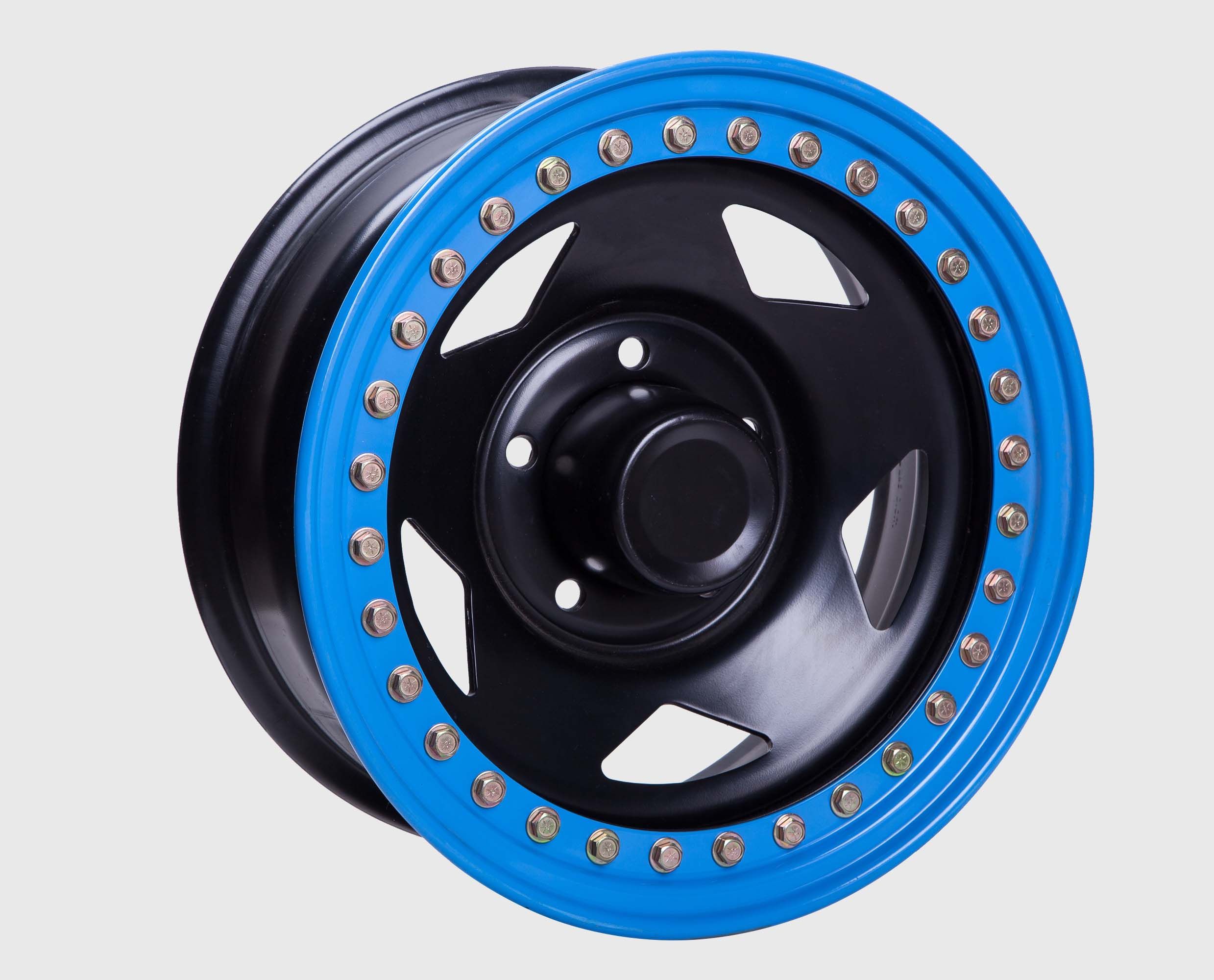

2. Good quality, competetive price Product Picture
RS8 RS5 RS9 RS10
The available sizes and specification for the beadlock steel wheel are as below:
| SIZE | PCD | CB | ET | AVAILABLE MODEL |
| 15X8 | 5-127 | 84 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X8 | 5-139.7 | 110 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X8 | 6-139.7 | 110 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X8 | 5-150 | 113 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X10 | 5-127 | 84 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X10 | 5-139.7 | 110 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X10 | 6-139.7 | 110 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X10 | 5-150 | 113 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15x12 | 5-127 | 84 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X12 | 5-139.7 | 110 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X12 | 6-139.7 | 110 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 15X12 | 5-150 | 113 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 5-127 | 84 | -25~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 5-139.7 | 110 | -25~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 5-150 | 113 | -25~10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 5-165.1 | 125 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 6-139.7 | 110 | -25~+30 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 6-170 | 131 | -25~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 8-165.1 | 130 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X7 | 8-170 | 131 | -25~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 5-127 | 84 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 5-139.7 | 110 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 5-150 | 113 | 0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 5-165.1 | 125 | 0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 6-114.3 | 84 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 6-139.7 | 110 | -30~+30 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 6-170 | 131 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 8-165.1 | 130 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X8 | 8-170 | 131 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 5-127 | 84 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 5-139.7 | 110 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 5-150 | 113 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 5-165.1 | 125 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 6-114.3 | 84 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 6-139.7 | 110 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 6-170 | 131 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 8-165.1 | 130 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 16X10 | 8-170 | 131 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-120 | 65.1 | +25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-127 | 84 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-139.7 | 110 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-150 | 113 | 0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-150 | 113 | 0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-150 | 113 | +40 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 5-165.1 | 125 | 0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-114.3 | 84 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-114.3 | 66.2 | +20 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-139.7 | 110.2 | 0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-139.7 | 110 | +25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-139.7 | 110 | +40 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-139.7 | 110 | -30~+30 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 6-170 | 131 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 8-165.1 | 130 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X8 | 8-170 | 131 | -30~+25 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 5-127 | 84 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 5-139.7 | 110 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 5-150 | 113 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 5-165.1 | 125 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 6-114.3 | 84 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 6-139.7 | 110 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 6-170 | 131 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 8-165.1 | 130 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X9 | 8-170 | 131 | -50~+10 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 5-127 | 84 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 5-139.7 | 110 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 5-150 | 113 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 5-165.1 | 125 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 6-114.3 | 84 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 6-139.7 | 110 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 6-170 | 131 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 8-165.1 | 130 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17X10 | 8-170 | 131 | -50~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 5-127 | 84 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 5-139.7 | 110 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 5-150 | 113 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 5-165.1 | 125 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 6-114.3 | 84 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 6-139.7 | 110 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 6-170 | 131 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 8-165.1 | 130 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
| 17x12 | 8-170 | 131 | -90~0 | FS5/FS6/FS7/FS8/FS9/FS10 | |
Company InformationSINO MACHINERY Co., Ltd is a professional wheel solution company established in 2003. Since the beginning of establishment, our company provides the best value of steel wheels, Aluminum forged truck wheels, casting brake hubs, brake drums to market. Because of the strict quality control system, our products enjoy high reception and reputation in Southeast Asia, South America, East of European, South Africa, Australia and New Zealand.We sincerely welcome customers old and new to make long term and multi-benefit business.SINO MACHINERY--We are specialized in wheels.
SINO MACHINERY Co., Ltd was set up to export the steel wheels to the customers who need wheels from China. But as the business is growing up, and also in order to meet the customers' huge requirements for the wide range of wheels, we developed many new molds with our factories and every year we are keeping developing and sourcing new molds to keep us in advatange in the market now and in the future. Till today, we almost could provide full range of steel wheels for passneger cars, trailers, trucks and farm machines.
In 2015, SINO MACHINERY got into the business of tyres and wheel rims assembly. So our customers save the cost and time. Especially for the trailer or Agriculture vehicle manufacturers who want the complete wheels. Also for the wheel distributors who want to be give better service to their OE cutomers.
In 2016, SINO MACHINERY Co., Ltd set up a new joint venture factory to make the custom 4X4 beadlock wheels in steel and aluminum. We believe that the GOMETAL products will give us more value and let us have more fun.
Anyway, SINO MACHINERY is hoping to be ONE-STOP wheel solution company here in China. We are happy to be one of your partners for wheel solution.
SINO MACHINERY Co., Ltd- We are specialized in wheels!
