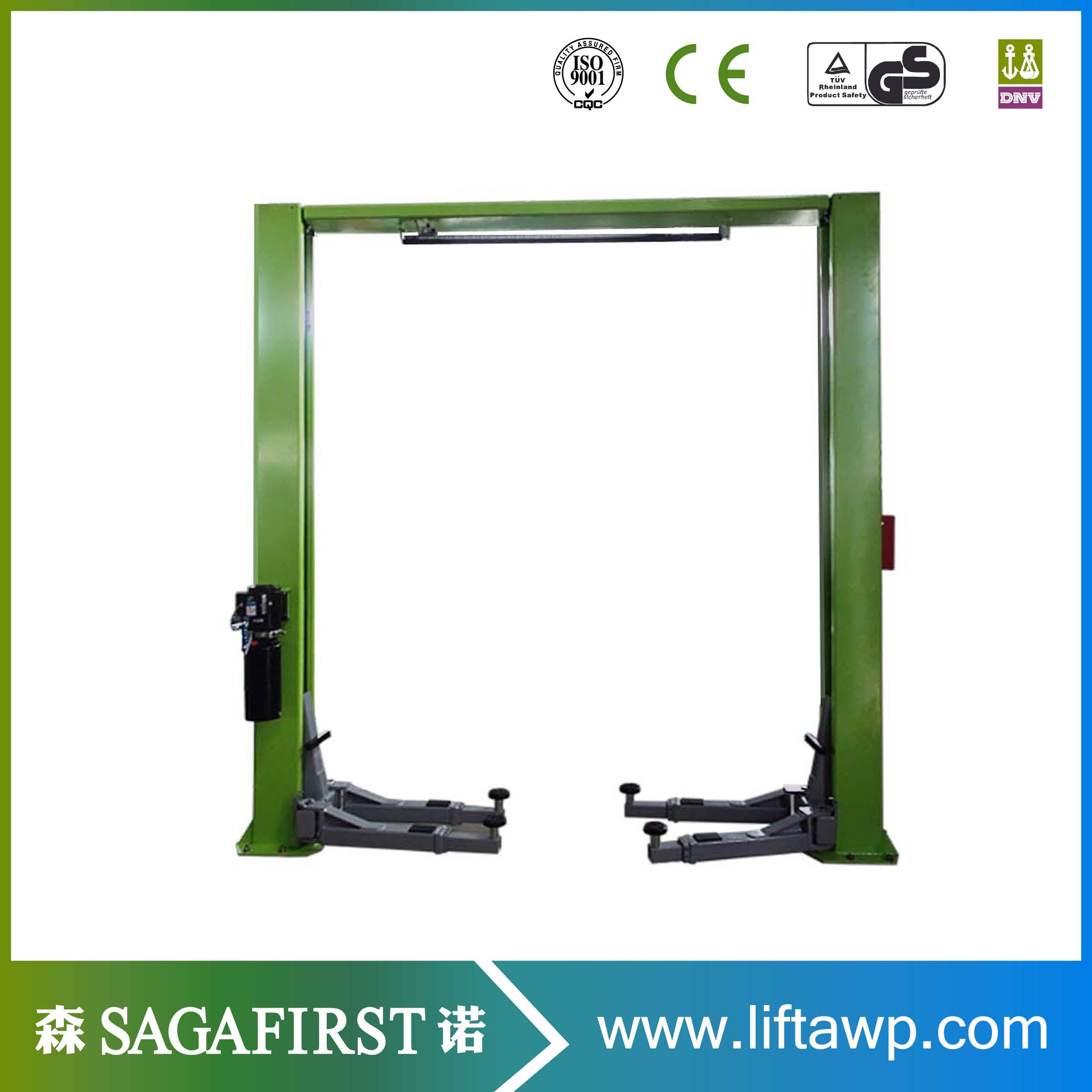

4500kg Capacity Clear Floor Two Post Car Repair Lift Ce Approved
| Price: |
US $ 1300-1580/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
4500kg Capacity Clear Floor Two Post Car Repair Lift Introduction:
2 Post Lift Parking is one of the most popular car lift among our customers. It belongs to valet parking equipments, which is equipped with electrical control system. It is driven by hydraulic pump station. Such kind of parking lift is suitable for both light car and heavy car.
1.Top quality processing
The parking lift are 100% cut by Laser and more than 60% welded by robot.
2.Dynamic locking device
We can surely guarantee the safety of the equipment. Our parking lifts are built as per CE standard and more than 10 safety precaution to ensure our customers will always get protected. Most importantly, there are a series of locking tabs on the posts to protect vehicle from unexpected damage.
5. Easy and convenient installation
Detailed installation manual, drawing and video sent together with equipment will help customers install it very easily.
4.Sharing post feature
The posts could be shared when they are installed side by side, which can save cost, land space, and container space.
7.Professional packing & delivery
Our professional packaging and logistic staffs will ensure our customer will get the product damage free, simple load & unload in time.
6.Hydraulic driving mode
Thanks to the hydraulic driving mode, our lift could have a faster lifting speed. Even though there is power failure, the upper car still can be retrieved by manually operating the solenoid valve.
7.Low power cost
When the platform descents, it will be driven by gravity, no need electric power. In this way, it can save much electric power.
8.Stronger structure
Accurate inset structure is adopted to make steel plates jointed stronger so a larger loading can be supported.Our Service:· 3 years guarantee for parts and one year for main structure
· 24 hours technical support by calling and email.
· Installation manual and operation instruction will be sent together with the equipment. We can also dispatch engineers to help you install the equipment but customers need to pay travel charges.
· Vulnerable parts will be offered free of charge and sent together with the equipment.
· Trade terms: FOB,CIF,CFR available.
· We can make customized equipment as per customers' requirements. Structure Analysis1.Carriage
2.Transparent oil tank
3.Oil drip tray (optional)
4.Galvanized cover plate
5.Electric box
6.Rubber wheel protector (optional)
7.Key switch & emergency stop button
8.Dynamic lock
9.Front & Back footage
10.Rubber wheel protector (optional)

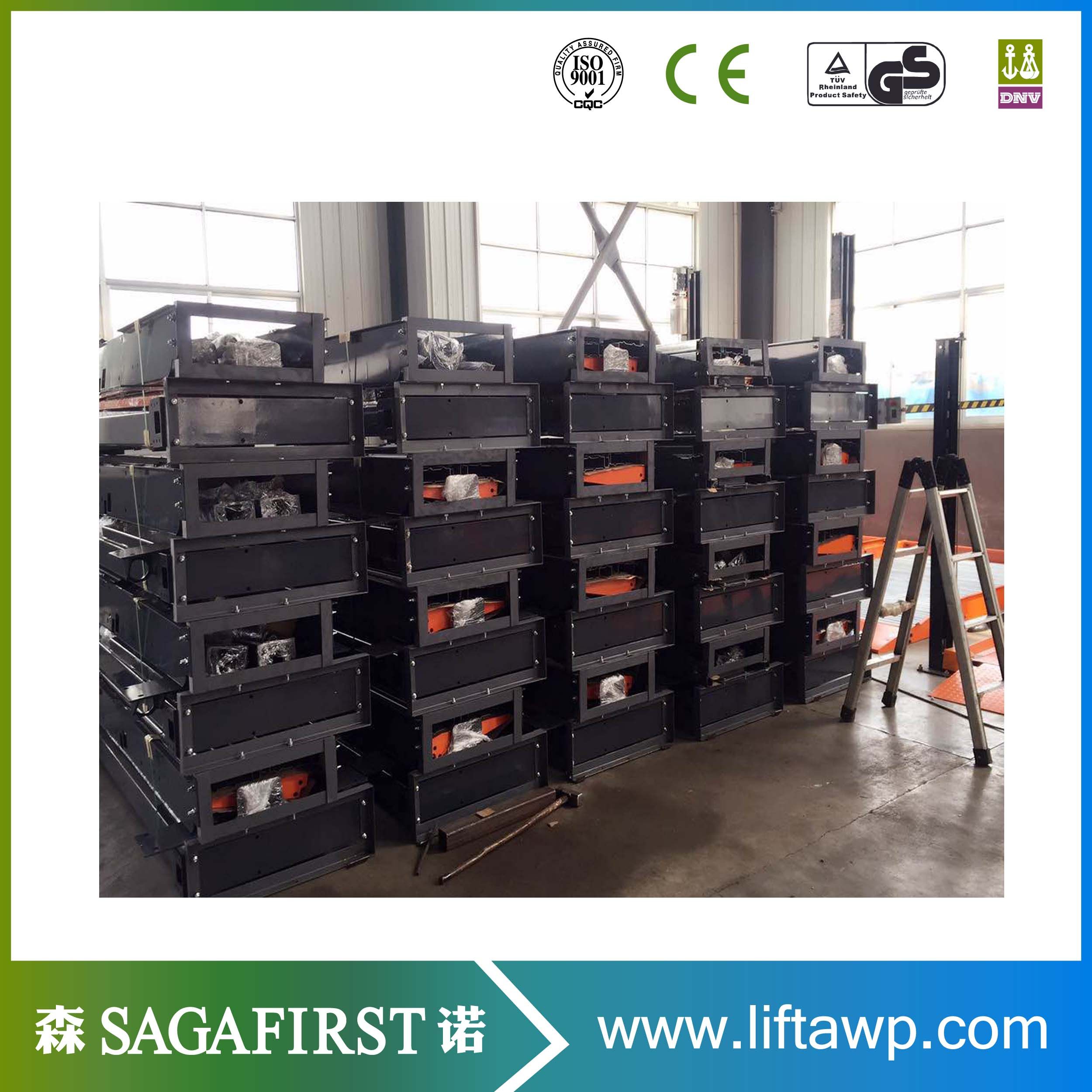

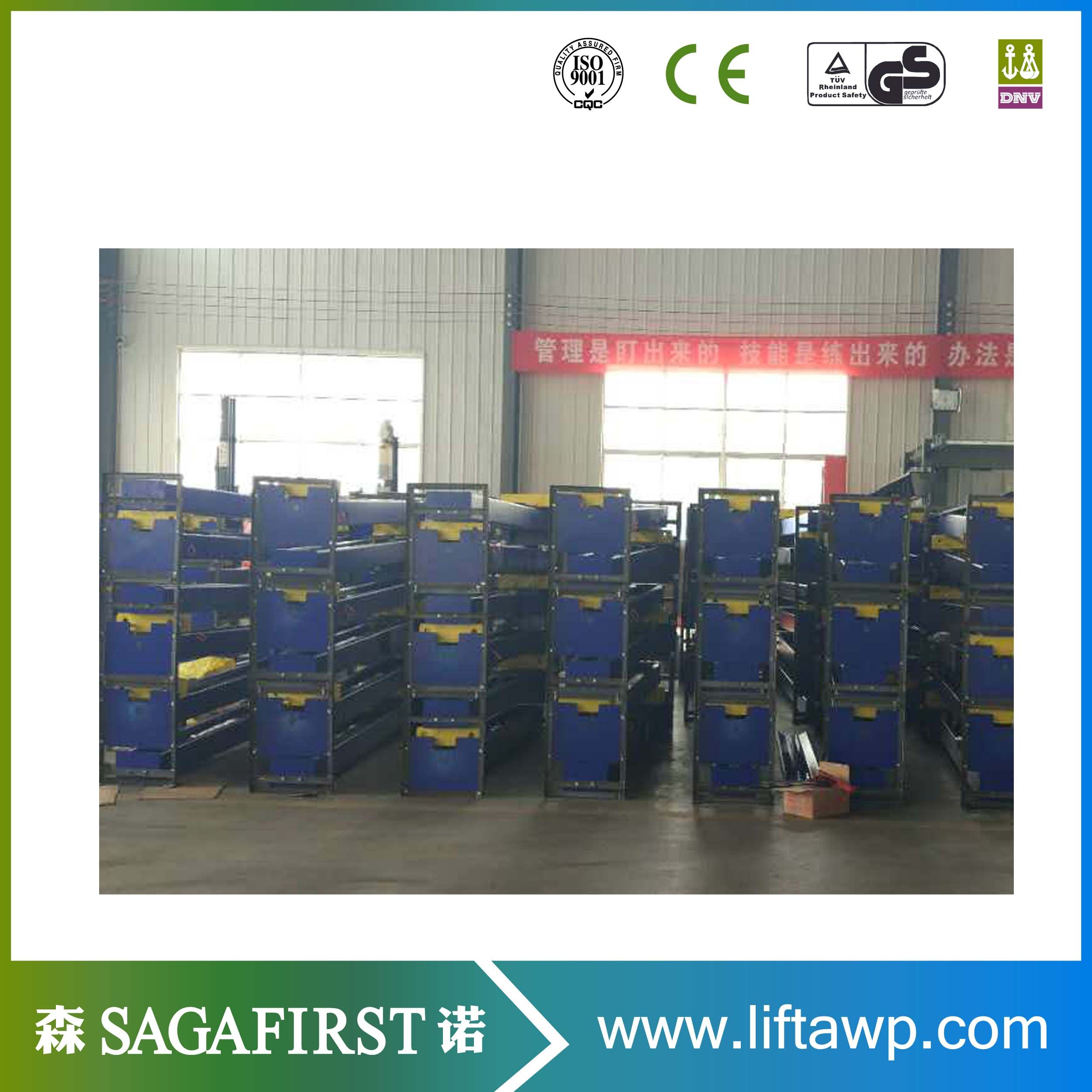

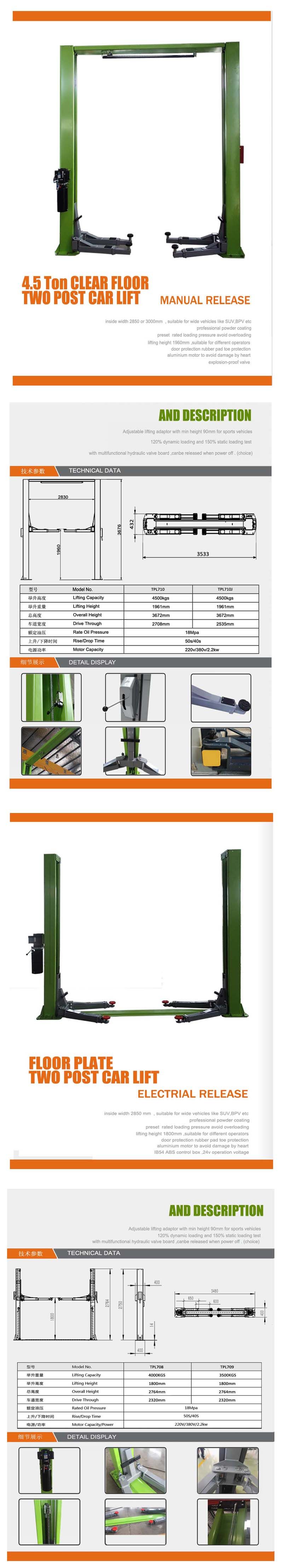

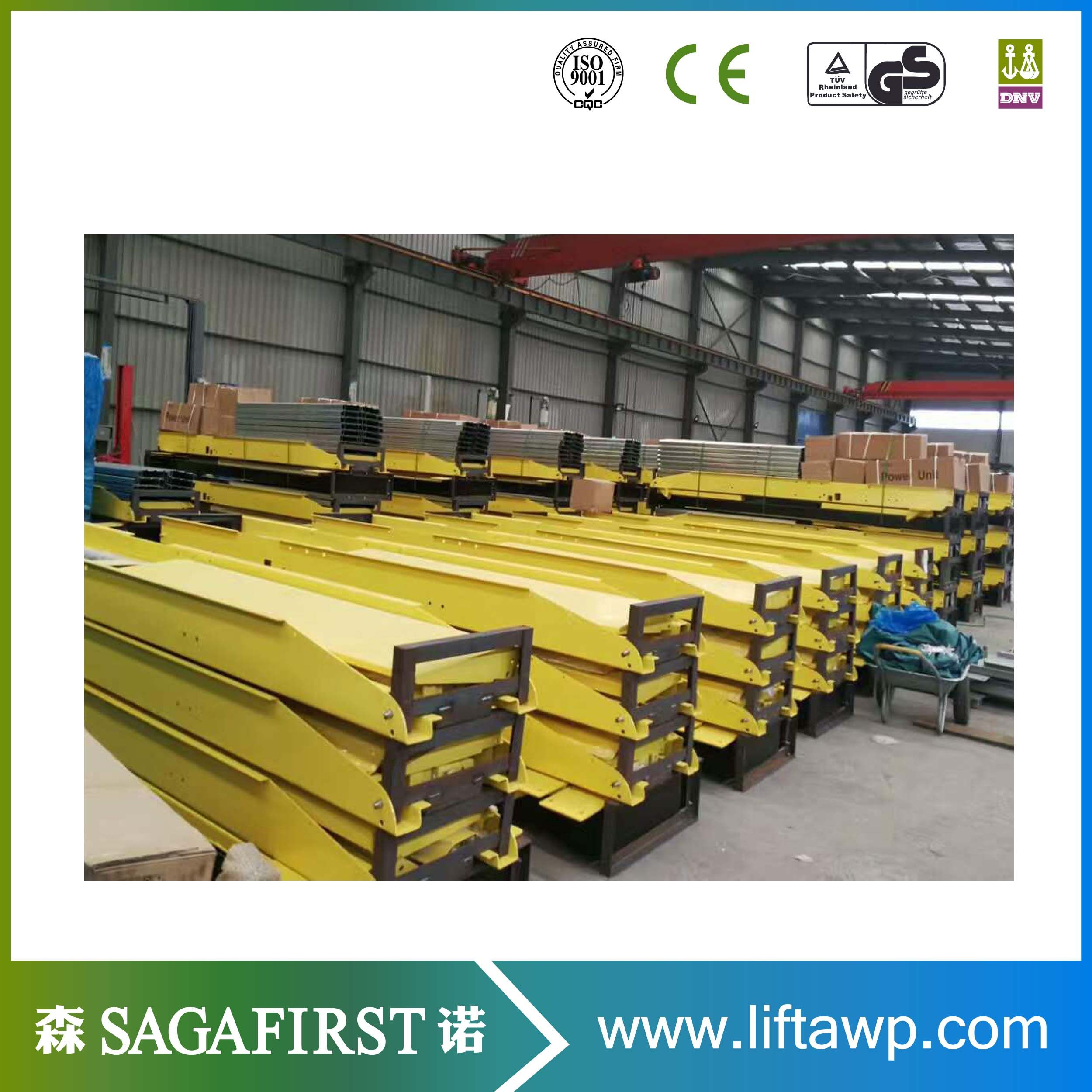

Product Pictures:
FAQ:
| Questions | Reasons | Solutions |
| Lifts don't rise,hydraulic pump station no leakage,motor turns | There is air in the hydraulic oil | No-load lifting to the top,hold some seconds then keep falling,stopped when getting to the middle,open the oil connection to exhaust,then tighten. |
| Temperature is so low as to make the hydraulic oil thickened | Anew replenish hydraulic oil |
| Overload | Check and confirm the lifting weight is less than the rated load |
| Leaking oil around tubing joint | Joint loose | Screw down |
| Joint was broken | Replace joint |
| Leaking hydraulic oil | Oil cylinder sealing ring is wearing | Replace the seal ring |
| Motor doesn't work | Mortor burn out | Check and repair the motor |
| voltage is too low | Guarantee the voltage to be nominal voltage |
| fuse is fusing. | Replace fuse |
| Platform not fall | platform in the lock position | make the platform rise and unlock,then make it fall. |
| hydraulic oil is too thick | Chang the hydraulic oil |
Our Service:· 3 years guarantee for parts and one year for main structure
· 24 hours technical support by calling and email.
· Installation manual and operation instruction will be sent together with the equipment. We can also dispatch engineers to help you install the equipment but customers need to pay travel charges.
· Vulnerable parts will be offered free of charge and sent together with the equipment.
· Trade terms: FOB,CIF,CFR available.
· We can make customized equipment as per customers' requirements. Contact Information:Alison (sales manager)Qingdao Sinofirst Machinary Co.,LtdAdd:Danshan Industrial Park,Chengyang District,Qingdao,ChinaMob/:+86-13668863425 Tel:+86-532-68076300 URL:www.liftawp.com www.sinolifter.cn
| Prod Model: |
TPL-710 |
| Lifting Height: |
1800mm |
| Platform Width: |
2100mm |
| Overall Width Of Equipment: |
2540mm |
| Load Capacity: |
3600kg |
| Weight: |
800kg |
| Motor Power: |
2.2kw |
| Lifting Time: |
50s |
| Falling Time: |
45s |
| Lock Device: |
Dynamic |
| Control Power: |
24V |
| Certification: |
ISO |
| Design: |
Four Post |

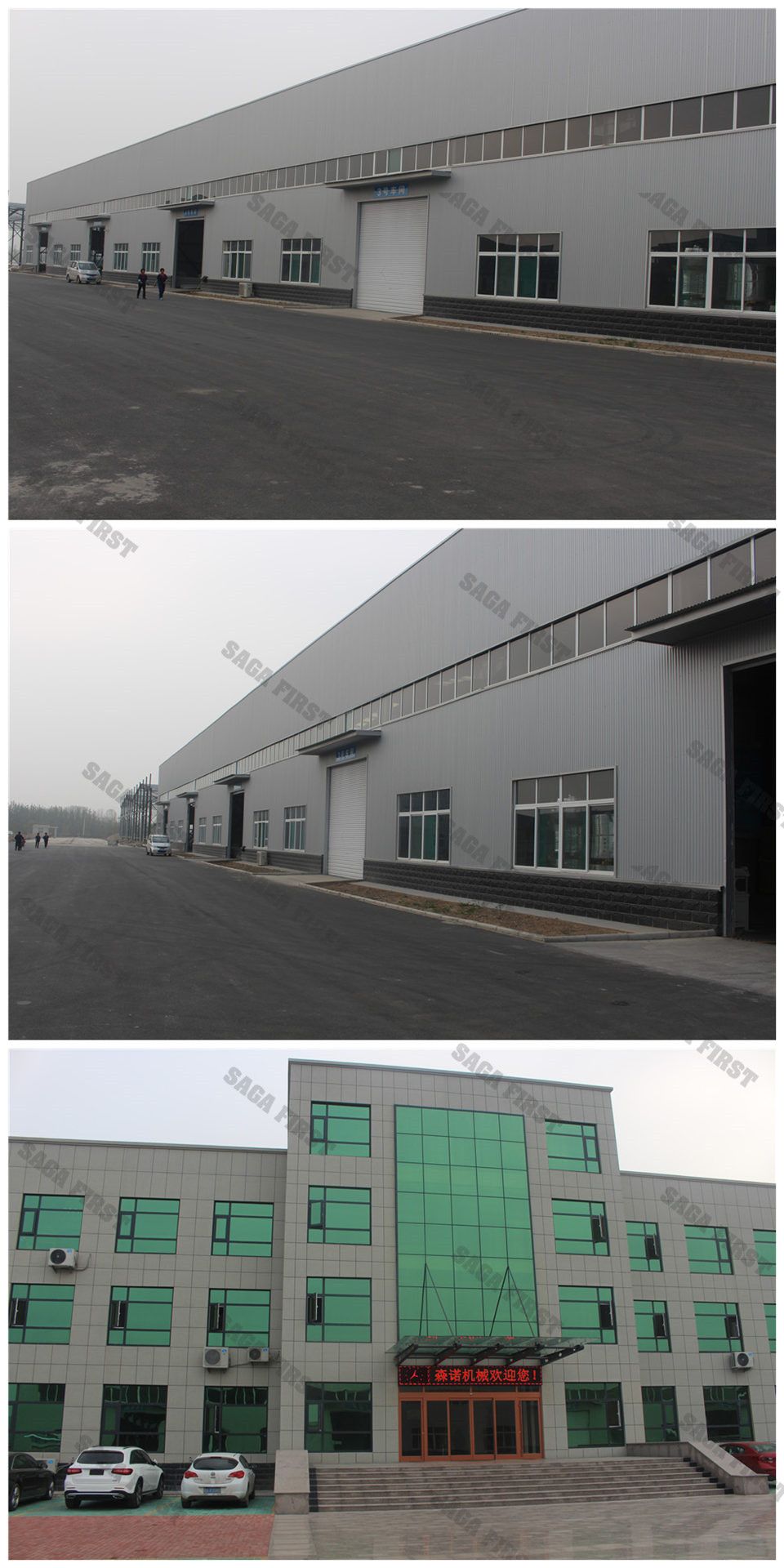

Qingdao Sinofirst Machinery Co., Ltd., famous for its high-end equipment, new and high technology, high credit standing and high growth, is a leading enterprise of aerial working platform in China and the first listed enterprise in the industry (stock code: 603338), with a total investment of up to RMB 560 million, a land area of more than 300 acres and a building area of up to 160, 000m2.
