| Prod Model: |
V8-3388 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Camera Diameter: |
40mm |
| Sensor: |
420 Tvl CMOS Sensor |
| LED Lighting: |
8 PCS White LEDs |
| Special Features: |
Waterproof / Weatherproof |
| Lens: |
Sapphire Glass |
| Camera Materail: |
Aluminum |
| Viewing Angle: |
120 Degree |
| Certification: |
GS |
Product Description

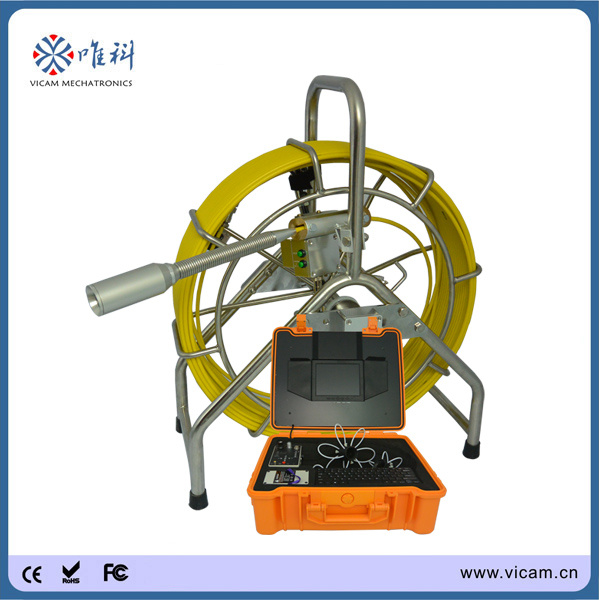

Wholesaler Videoscope inspection camera with 8 pcs LED & DVR (V8-3388)
Videoscope inspection camera Head
* Camera size Φ 40mm x 60mm for pipe Φ 50-600mm;
* 420 TV Lines CMOS auto self-levelling camera;
* Aluminum Camera case;
* Sapphire glass lens;
* Sensor size 1/3 inch;
* Viewing angle 120° ;
* 8 pcs white LEDs;
* Total Pixels PAL 720X576 NTSC 720X 480
Videoscope inspection camera Monitor
* 8 inch LED color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included
Videoscope inspection camera DVR Control Box
* 12V DVR work current 200mA;
* Storage medium SD card (max 64G);
* LED brightness adjustment;
* Audio / video / photo function;
* On/off microphone control button;
Cable Reel with meter counter
* 60m Φ 7mm fiberglass push rod cable (120m optional) with meter counter;
* Reel size L51 x W25 x H64 cm;
USB Keyboard
* Removable waterproof keyboard;
* 2m lead wire;
* USB plug for DVR control box;
Carrying case
* ABS engineering carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Payment Terms
* Payment terms: T/T, Western Union 30% deposit, balance before shipment;
* Trade term: FOB, CIF & EXW are available;
Packing & Shipping
* Durable ABS carrying case 520 x 440 x 200mm
* 2 pieces cases in one carton
* DHL / FedEx etc.
* All products will be tested & inspected before delivery
* Tracking No. Will be sent after delivery
Warranty
* One year warranty, whole life service;
* Any problem, freely return within one week;
Why Vicam
* We as a leading manufacturer specialize in pipe inspection systems & cameras.
* Rich experience of 8 years to design, produce and export.
* France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
* Professional engineers guarantee the reliable products.
* Strong production line provide best price, good quality and fast delivery.
* Inquiry will be replied within 24 hours
Contact Us
* Shenzhen Vicam Mechatronics Co., Ltd
* ADD: 6/F., Block 11 North Area, Shangxue Industrial Park, Bantian, Shenzhen, China
* Web: www.vicam.cn;
* TEL: +86 755 8920 2820
* FAX: +86 755 8920 2819
|
Brand Name |
VICAM |
|
Mode |
V8-3388 |
|
Type |
Videoscope inspection camera |
|
Style |
Inspection camera |
|
Sensor |
420 TVL CMOS |
|
Special Feature |
Waterproof / Weatherproof |
|
camera diameter |
40mm |
|
LED Lighting |
8 pcs white LEDs |
|
Monitor Size |
8 inch LCD |
|
Viewing Angle |
120degree |
|
Camera Lens |
Sapphire glass |
|
Camera materail |
aluminum |
|
Cable Length |
60m-120m cable |
|
Certification |
CE, FCC, RoHS |
|
Equipment |
ABS case, monitor, DVR control box, meter counter, keyboard, battery pack and charger |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
