| Prod Model: |
TN401 |
| Warranty: |
1 Year |
| Pressure Accuracy: |
1.5psi(0.1bar) |
| Tire Temperature Accuracy: |
3 Celsius |
| Transmission Frequency: |
433.92MHz |
| Transmission Power: |
Below 10dBm |
| Pressure Range: |
0-65psi(4.5bar) |
| Adjustable High Pressure Alarm Value: |
36-63psi(2.5-4.4bar) |
| Adjustable Low Pressure Alarm Value: |
15-36psi(1.1-2.5bar) |
| Sensor Battery: |
Er2450t(Non-Replaceable) |
| Sensor Battery Life: |
5 Years |
| Certification: |
FCC |
| Testing Equipment Type: |
Tire Detector |
Product Description
Something You Need to Know?
70% of high-speed traffic accidents were caused by abnormal tire pressure. With a TPMS, drivers are warned of abnormal tire conditions before it becomes dangerous.
Tyre Pressure Monitoring System will make sure your tire pressure is at its proper level.
Product Description

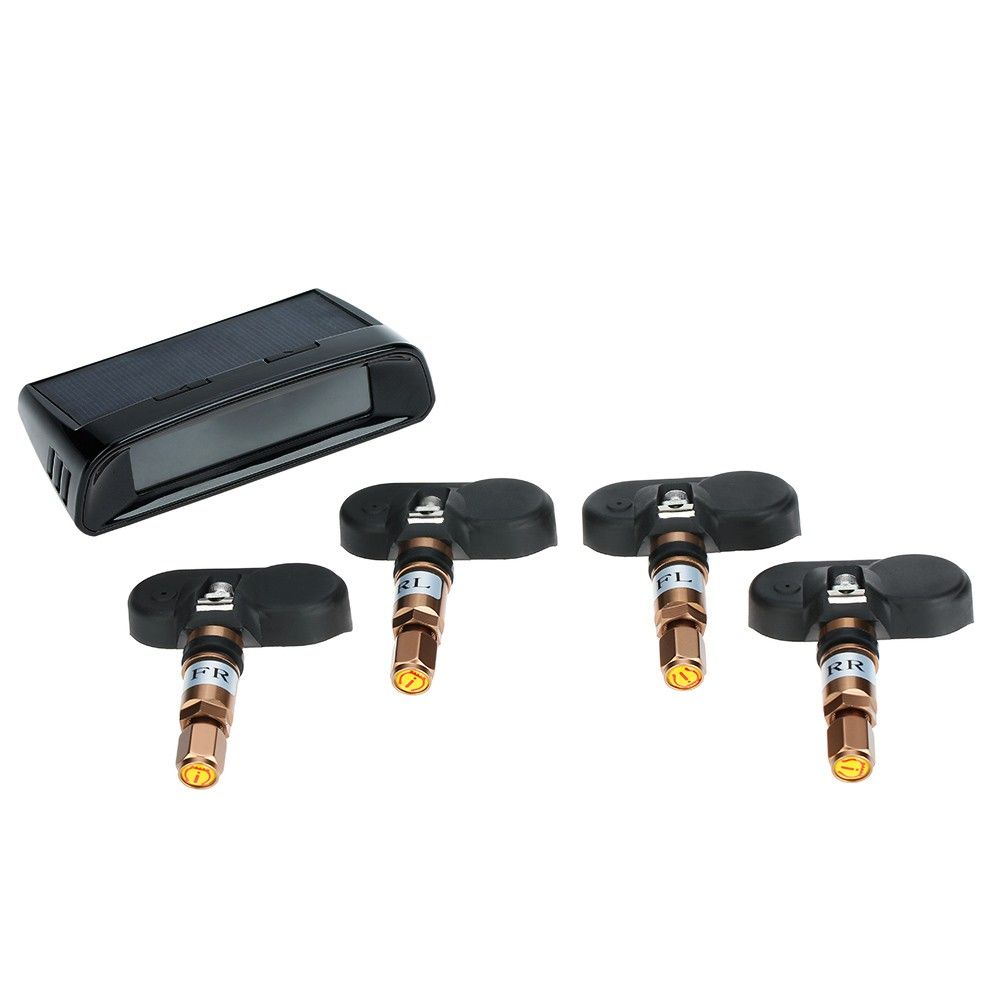

Universal wireless tpms wireless black&white lcd solar power tire pressure monitoring system with four internal sensors
Product Features1.Rechargeable monitor by USB cable and solar power
2.Streamlined design appearance generous and beautiful
3.Intelligent sleep mode to save power
4.Configurable high/low pressure warnings
5.Ajustable high/low pressure warning value
6.Visible and audible alerts
7.Easy rematch new sensors when some sensor broken or lost
8.Exchange mode no necessity to exchange sensors for rotate any tires
9.Configurable pressure units psi and barMonitor Specifications| Monitor Size | 115*71*35mm |
| Input Voltage | DC 12V |
| Working Voltage | 3.6V |
| Configurable High Pressure Warning | 36-63Psi(2.5-4.4Bar) |
| Configurable Low Pressure Warning | 15-36Psi(1.1-2.5Bar) |
| High temperature warning value | 70 celsius |
| Selectable pressure units | Psi, Bar |
| Weight | 120g |
Internal Sensor Specifications| Sensor Size | L*W*H 73*63*10mm |
| Pressure Range | 0-65Psi(4.5Bar) |
| Pressure Accuracy | ±1.5Psi(0.1Bar) |
| Temperature Accuracy | ±3 celsius |
| Battery Model | ER2450T(Nonreplaceable) |
| Battery Life | 5 years |
| Transmission Frequency | 433.92MHZ |
| Storage temperature | -40-120 celsius |
| Weight | 38 grams |

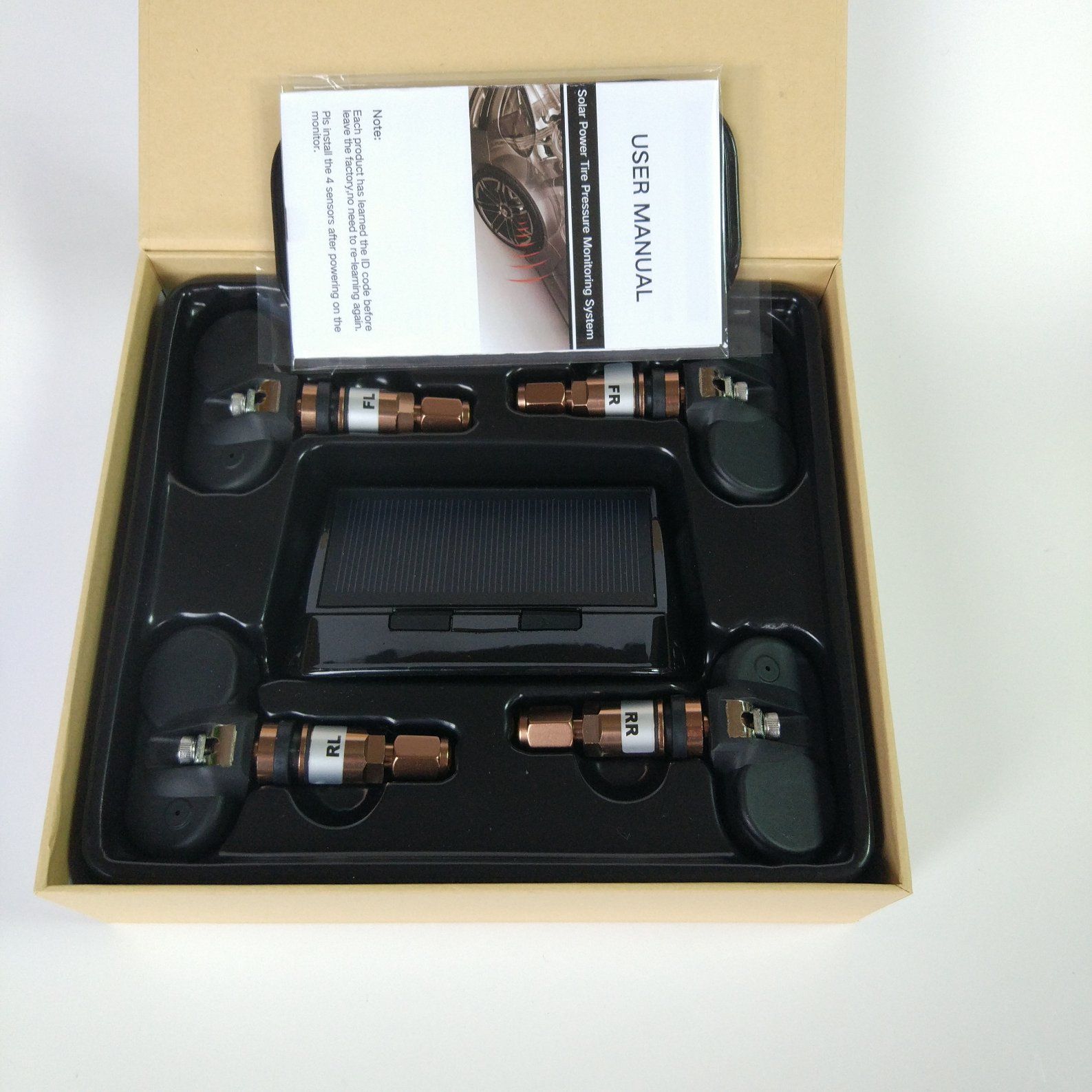

Package list
1* Monitor
4* Internal sensors
1* Anti-slip mat
1* Manual
Gift box
Size:20cm x18cmx6cm; 20 sets/carton

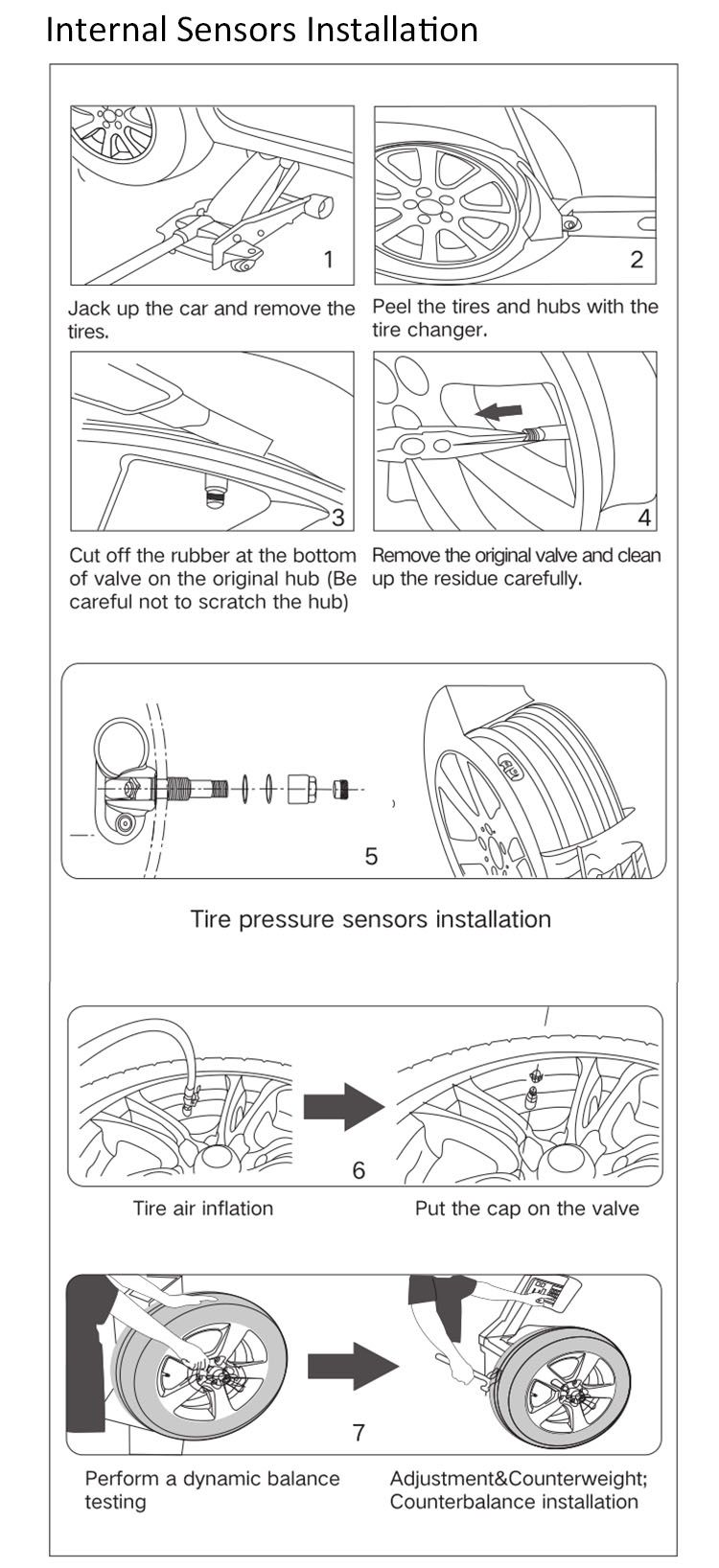

Product Installation Method
You can use it directly no need to rematch. Please power on the monitor and then install the sensors accroding to the position. The data will show quickly.

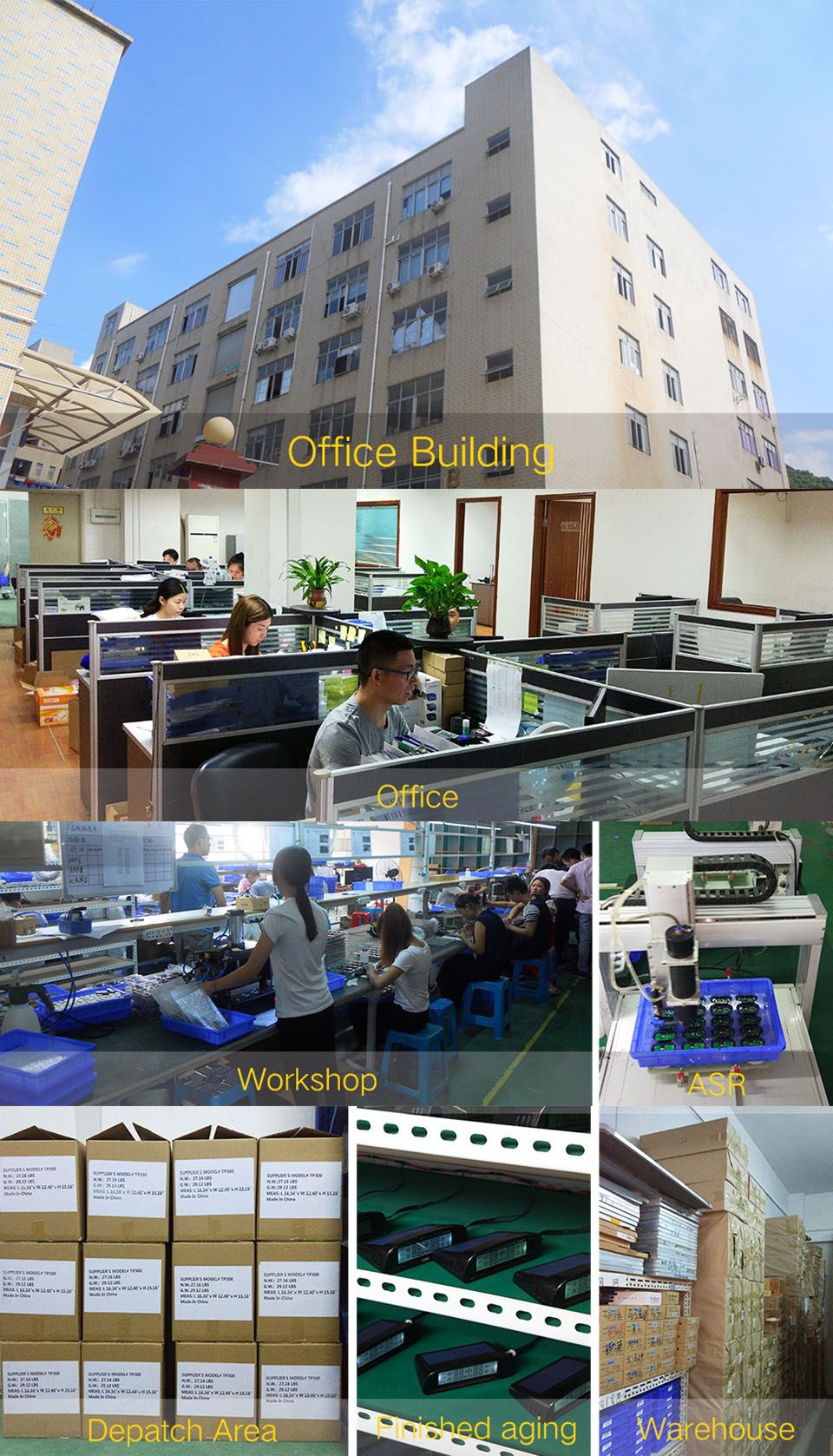

Company profileShenzhen Shenyongtong Industrial Co., Ltd. is a manufacturer with over 60 employees; it was established in 2004,
located in 5/F, B Building, Yufeng Industrial Park, Yangguang 6th Road, Xili Town, Nanshan District, Shenzhen City,
Guangdong Province, China. The company occupies an area of more than 1000 square meters. The company has its
own brand. The brands are famous in China market. They have passed ISO9001:2008 certification in 2014, obtained CE, RoHS
and FCC certificate and obtianed test report and patent certificates. The company has successful foreign trading experience in Europe, North America, South America, Southeast Asia and Mideast.
Shipment
2 days for samples.15-30 workdays for the order less than 1000sets.
DHL, UPS, FedEx, EMS, etc are avaliable.Certificates and Patents
ExhibitionsWe have attended Global Sourcing Electronics, Automechanika Shanghai, AAITF,CIAAE and so on many times. If you have plan to visit some exhibition, pls pay attention to our latest news on MIC. We can also send customers email and messages near exhibition time. Welcome to visit our booth on the show.Our advantage1.Strong Research &Development dept
2.Strict quality control and advanced production euipments
3.Experienced sales team
4.Thorough after-sales team
5.OEM or ODM service
6.2-4 weeks leadtime
7.Competitive Price
Our contact information
Shenzhen Shenyongtong have been found in 2004, for 12years. A manufacturer with 44 employees; It was established in 2004, located in 5/F, Bbuilding Yufeng Industrial Park, Yanguang 6th Road, Xili Town, Nanshan District Shenzhen City, Guangdong Province, China.
Our company occupies an area of more than 1000 square meters. Our company has its obtianed test report and patent certificates.
We has successuful foreign trading experience in Europe, North America, South America, Southeast Asia and Mideast. Our customers come from all over the world.
It is a reliable and professional manufacture on auto part car aftermarket.
At present we focus on producing tire pressure monitoring system.
There are different models.
We have our own research and developing team.
Our sale team. And have our own brand.
Our product brand have been very famous in Chinese market.
We attend several exibition shows each year.
You are welcome to visit our factory and talk.
We are the best choice for you!
