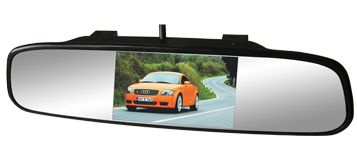

4.3 Inch Car Rear View clip Mirror Monitor System
Monitor:- 4.3" after market Rear view mirror monitor
- High digital high resolution mirror monitor
- Display size: 4.3 inches,
- Clip on originl mirror
- PAL or NTSC system auto convert
- Automatically switch on when reverse gear is engaged.
- One vedio input
- 12V power input
Products Specifications:4.3''digital TFT panel clip mirror monitor, replacing the factory mirror. Space saving and nice appearance. This mirror monitor is able to connect mini cameras and brake light back up cameras as well.
Item No. | BR-MM4301 |
monitor | 4.3'' mirror clip monitor |
connector | 4P or RVC connector |
Image | 16:9 image |
Color system | PAL/NTSC(selectable) |
Resolution | 480 x R.G.B x272 |
Brightness: | 200cd/m2 |
Power requirement | 12 |
Power consumption | 5W |
Dimension | 261 (L) x 177 (W) x 70 (D) |
Operating temperature | -30° to +70° |
Storage temperature | -40° to +80 |
Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
Camera:
- Image Device: 1/3" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof design
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Resolution: 700TV lines
- Minimum Illumination: 0.01Lux
- Video Output: 1.0vp-p, 75Ohm
- Gamma Consumption: 0.45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70°RH95%Max
- OmniPixel technology for low-light performance

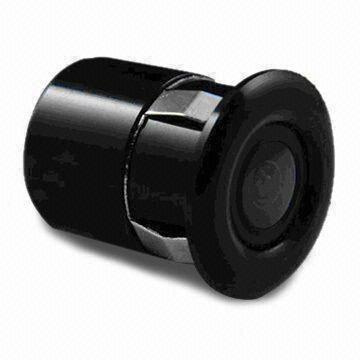

Products Specifications:BR-MNC02, universal mini bullet camera, Its small size and OEM look make this a very popular camera choice. The camera is very easy to install and makes hitching and backing up easy.
Item No.
| BR-MNC02 |
Feature
| Bullet mini camera |
Image Type
| CMOS |
TV System
| NTSC/PAL |
IP Rating
| IP69K |
Vibration Rate
| 10G |
Effective Pixels
| N: 510*492 pixels P: 500*582 pixels |
Horizontal Resolution
| 700TVL |
Video Output
| 1.0vp-p, 75Ohm |
B.L.C
| Back light Compensation (Auto) |
White Balance
| Auto White Balance (Auto) |
Minimum Illumination
| 0Lux (LED ON) |
S/N Ratio
| ≥48dB |
Electronic Shutter
| 1/60~1/100,000 Sec |
Built-in Lens
| f: 2.8mm |
Power Consumption
| DC 12V (+/-10%) |
Lens Angle (Deg.)
| 170° |
Operation Temperature
| -30ºC~+70ºC.RH95% Max |
Storage Temperature
| -40ºC~+80ºC.RH95% Max |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
