4~20mA PTFE anti-corrosive water level sensor
Company Introduction
Shandong Dongrun Instrument Science and Technology Co., Ltd. founded in 1998. It specializes in manufacturing online water quality analysis equipment, level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperates with Chinese Academy of Sciences and builds up a water analysis laboratory, mainly producing TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification. Our professional R & D team can provide technical supports to satisfy customer demand and our unique technologies can meet different working conditions.

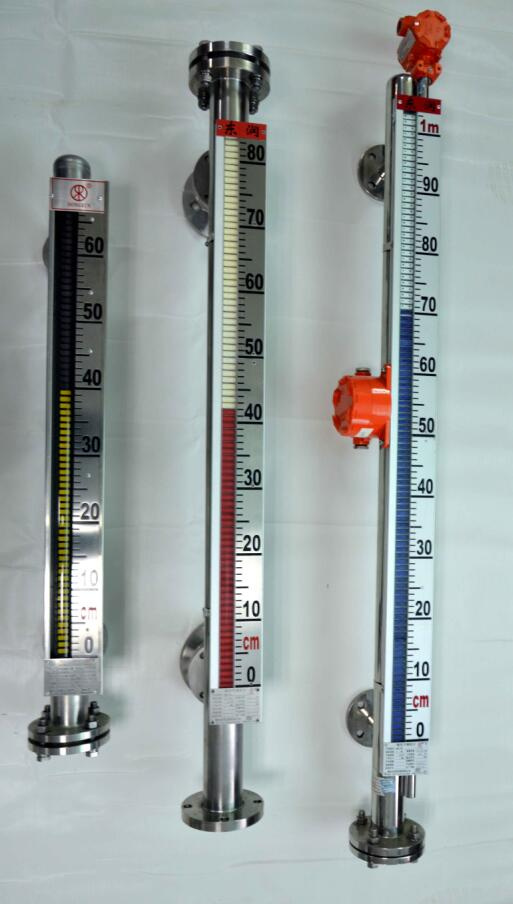

Product Introduction
It can be used to measure level of various vessels in the shape of tower, kettle, groove and ball as well as boiler furnace. It can be used in complex conditions, such as highsealing, leak prevention, high pressure, high temperature and corrosion. In the measurement process, no measurement blind area. It strikingly displays the level and has a wide measurement range. Compared with traditional glass plate level gauge, it is safer, more reliable, more advanced and more practical. The most obvious characteristic is the complete isolation of liquid medium and indicator so it can be used safely, reliably and durably in any case.
Feature
The shell of the turn column uses the polyester and high temperature ceramic, which doesn't fade and resists high temperature.
It can measure level and interface of liquid in the vessels. Besides on-site instruction, it can be with remote diaphragm, alarm switch, control switch.
It indicates obviously and highlighting. The direction of the observing indication can change angles based on the user's need.
Wide measuring range, measure a variety of the height of the vessels.
The instruction and the medium are isolated completely, so it is reliable and safe.
Easy structure, convenient installation and the low cost of maintenance.
corrosion-proof, no need power supply and explosion-proof.
The magnet of the turn column adopts permanent magnet materials can run reliably during a long time.
Technical Specification
| Measurement range | 300-15000mm |
| Accuracy | ±10mm |
| Column diameter | 9mm |
| Operating pressure | ≤10.0Mpa (>10.0Mpa customized); anti-corrosion type ≤1.0Mpa |
| Medium density | ≥0.45g/cm3 |
| Medium density difference | ≥0.15g/cm3 |
| Medium viscosity | ≤0.4Pa·S |
| Equipment vibration | frequency≤25Hz, amplitude≤0.5mm |
| Follow speed | ≤0.08m/s |
| Connection flange | DN20, PN0.6 |
Company and Trade Show
Contact Information
Shandong dongrun Instrument Science and Technology Co., Ltd. Was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are pH/ORP analyzer, DO analyzer, Conductivity analyzer, Turbidity analyzer, TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
Company Culture
Our Mission: Using advanced analysis and monitoring technology, continuously to improve the human living environment; Using first-class automation and information technology, to create the greatest benefits for enterprises and society; Work hard wholeheartedly for the human environment construction and social progress.
Our vision: Make the world's most reliable instruments and equipment, to design the world's most intelligent automation information software; To do a hundred years of business, to become the world's leading industry brands.
Our spirit: Constant learning, constant innovation and constant development
Our team: Positive, courageous and capable of one heart and one mind, solid and steady
Our criteria: Concentrate, professional, dedicated, diligent, lean and improvement;
Our style: Enthusiasm, high-quality, high-efficient, no excuse
