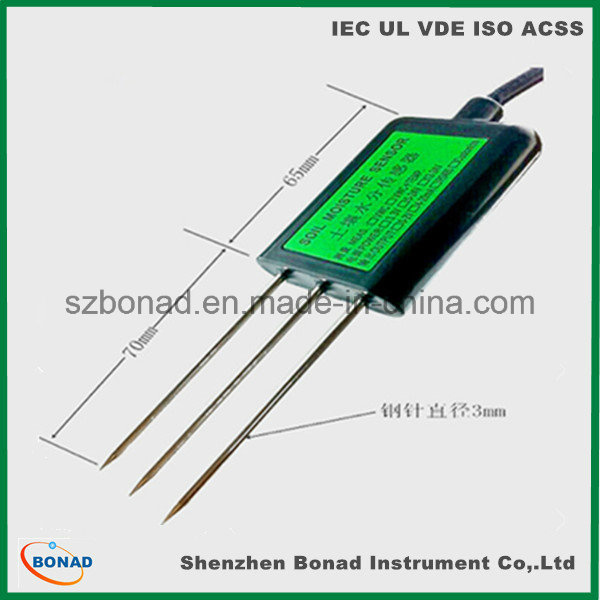

(4-20mA/ 0-2V) RS485 Modbus Soil Temperature Moisture Sensor
| Price: |
US $ 69-199/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
(4-20mA/ 0-2V) RS485 Modbus Soil Temperature Moisture Sensor
Technical parameters:
MEC10 soil moisture / conductivity / temperature sensor is high sensitivity and stable performance. it is the important tool for observation and study of the occurrence, evolution of saline soil, as well as for improved water and salt dynamic. By measuring the dielectric constant of the soil, can be stably directly reflect the true moisture content of various soils. MEC10 soil moisture sensor measures the soil moisture volume percentage, soil moisture measurement methods in line with current international standards. Suitable for soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouse, flowers, vegetables, grass pastures, fast testing of soil, plant culture, sewage treatment, precision agriculture and other occasions.
| technical parameter |
| The signal output type | Output voltage 0-2V
output impedance <1Kohm | current output 4-20mA
load resistance <500ohm | RS485 interface,
Modbus protocol |
| Power supply voltage | 5-30V/DC | 12-30V/DC | 5-30V/DC |
| Maximum power dissipation | 40mA@24V DC | 80mA@24V DC
(When the two current
output channel is 20mA) | 30mA@24V DC |
| Soil moisture measurement area | The probe as the center, the diameter of 7cm, height of 7cm cylinder |
Response time
(moisture and temperature) | Less than 1 second |
| Soil moisture measurement range | Optional range:
0-30% volumetric moisture content
0-50% volumetric moisture content
0-100% volumetric moisture content |
Soil moisture measurement
accuracy | 0-53% range is ± 3%;
53-100% range is ± 5% |
Soil temperature measuring
range | -40~80ºC |
The measurement precision
of soil temperature | ±0.5ºC |
| Protection grade | IP68 |
| Operating environment | -40~85ºC |
| The storage environment | -40~85ºC |
| The material of the probe | Food grade stainless steel |
| Sealing material | The black flame retardant epoxy resin |
| Installation | All buried or probe into all of the measured medium |
| Series | Code 1 | Measurement parameters |
| MS10- | A
B | Soil volumetric water content (VWC) and temperature
Soil volumetric water content (VWC) |
| | | Code 2 | The range of volumetric water content of soil |
| | | A
B
C | 0-100%
0-50%
0-30% |
| | | | Code 3 | Output signal |
| | | | A
B
C
D
E
F
G | Output voltage 0-2V
The current output of 4-20mA
RS485 interface, Modbus protocol
RS485 interface, Modbus protocol and the 0-2V output voltage
RS485 interface, Modbus protocol and 4-20mA output current
The SDI-12 interface
Custom |
| |
Type example:
The MS10 series, the soil volumetric water content (VWC) and temperature, soil volumetric water content
range of 0-100%, RS485 interface, Modbus protocol. The selection of the code as follows: |
| MS10- | A | A | C | |
| Prod Model: |
BND-MS10 |
| Delivery Time: |
3-7days |
| Warranty: |
1year |
| Product Name: |
Soil Moisture Sensor |
| Supply Voltage: |
3.6-30V DC 12-30V DC 2.7-16V DC |
| Line Length: |
2m |
| Electrode Length: |
70mm |
| Operating Environment: |
-40~85°c |
| Moisture Range: |
0-50% 0-100% |
