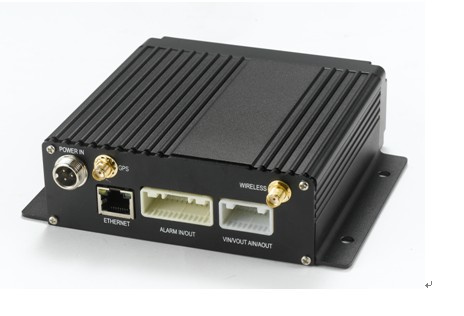

3G/GPS/WiFi SD Card Car DVR
| Price: |
US $ 99-199/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union |
Features
H. 264 main profile Video compression format;
Support 1 to 4 channels video input.
Built-in wireless module like 3G (EVDO, HSPA, HSDPA), GPRS, WiFi (optional).
With the special UPS technology
Real time recording: 100f/s (PAL); 120f/s (NTSC). Recording resolution: CIF/ 2CIF/ D1 optional, maximum support 2CH of D1 + 2CH of CIF.
Support 1 channel audio input, 1 channel microphone or audio line in. G. 726 compression.
4 channels alarm input/ 2channels alarm output.
RS232 interface for remote control; RJ45 10M/100M Ethernet port.
Video recording mode: Auto, alarm, timed and manual recording.
The video file format is ASF.
The file can be played by general media player VLC or our customized software which support 1 channel or 4 channels synchronous playback
Storage capacity: Two 32GB SD card (the default selection is one SD card support).
Quick start-mode: The device will turn to working in 20 sec after power on. Other start- or close- mode including ACC on, timed turn on/off, manual boot/shutdown the device.
Voltage supply range is from 8V to 36V, the DVR is compatible with the most of vehicles. Power output is 12V/1.5A.
Energy- efficient design, the power consumption is less than 5W with normal operating state.
with anti-vibration and anti-high temperature protection, the quality of video files is always guaranteed
Operating temperature: -25 to +70 degree
All materials and PCB production conform to RoHS standard. Elegant and industrial design: Mini size, for easy installation, more concealing.
Dimensions: 112(W) x36(H) x138(D) mm
|
Item |
Description |
|
Operating System |
Linux (2.6) |
|
Video Compression |
H.264 |
|
OSD |
Overlays letters and logo^ like some date&time info and vehicle ID into video streming. |
|
GUI |
Graphical User Interface |
Setup system parameters through the remote control. |
Video and Recording
System |
Video input |
1-4 channels input, 4 CVBS, 1.0Vp-p, 75Ω |
|
Video output |
1CH output, CVBS, 1.0Vp-p, 75Ω, single or quad monitor |
|
Preview |
Support 1 channel and 4 channels preview. Also can preview through PC, with PC Viewer software. |
|
Recording Resolution |
Support CIF\HD1\D1 resolution optional, maximum 2CH of D1 & 2CH of CIF. |
|
Video Quality |
1-4 levels, 1 is the highest level , 4 is the lowest level. |
|
Recording Speed |
PAL: 100Frame/s , CCIR625 line,50 field
NTSC: 120Frame/s, CCIR525 line,60 field
CIF: 256Kbps ~ 1.5Mbps, 4 quality level support,
HD1: 600Kbps ~ 2.5Mbps, 4 quality level support
D1: 800Kbps ~ 3Mbps, 4 quality level support |
|
Video stream |
ISO14496-10 standard |
|
Recording Mode |
Default auto recording after power on, support timed recording, alarm recording |
|
Audio |
Audio Input |
Mic or line in, 1 channel |
|
Audio Output |
1 channel output, output voltage: 1V ~2V |
|
Compression |
G.726, 5KB/s |
Playback
System |
Video Search |
Search video via time, type(normal or alarm), target SD card |
|
Playback |
Support 1 to 4 channels playback.
|
|
Support forward and backward at the speed of: x 2,x4,x8,x16. |
|
Alarm |
Input |
Support up to 4 channels alarm input. |
|
Alarm recording: include the recording within 15 seconds ahead of the alarm starting, and the recording after alarm dynamically adjusted .. |
|
Output |
2Ch alarm output, level signal. |
|
Communication Port |
RS232 for remote control; RJ45 for LAN . |
|
GPS |
Yes, built-in GPS module |
|
G-sensor |
Yes, built-in G-sensor module |
|
Wireless Transmission |
3G type( WCDMA,CDMA2000, EVDO for optional ) |
|
Backup |
SD Card |
Support 1/ 2 SD Cards. Support SD card recycle recording. |
|
Firmware upgrade |
Upgrade with SD card |
|
File Format |
ASF |
|
File System |
FAT32 |
|
Power |
Power Management |
System auto power on/off mode:
1,Vehicle acc on/off---system auto power on after acc on, system power off according to the delay time (up to 240min, default 5min) after acc off. 2,Preset time---Only according to time preset table. |
|
Power Supply |
DC:+8V ~ +36V |
|
Power Output |
+12V@2A;+5V@2A |
|
Power-off data protection |
All data can be saved and the recording files can be closed normally in case of power lost. |
|
Working Environment |
Temperature |
-20 to +70 |
|
Humidity |
20% to 80% |
|
Others |
Dimensions |
112(W) x36(H) x138(D) mm |
|
Net Weight |
550g |
| Prod Model: |
VC-MDR3004G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stofage: |
SD Card |
| Channel: |
4 Channel |
| Function Optional: |
3G, GPS, G-Sensor, Wi-Fi Modules Optional |
| Operating Temperature: |
-25 to +70 Degree |
| Dimensions: |
112(W) X36(H) X138(D) Mm |
| Video File Format: |
Asf |
| Compression Format: |
H.264 |
| Interface: |
Airplug |
