3D Wheel Alignment

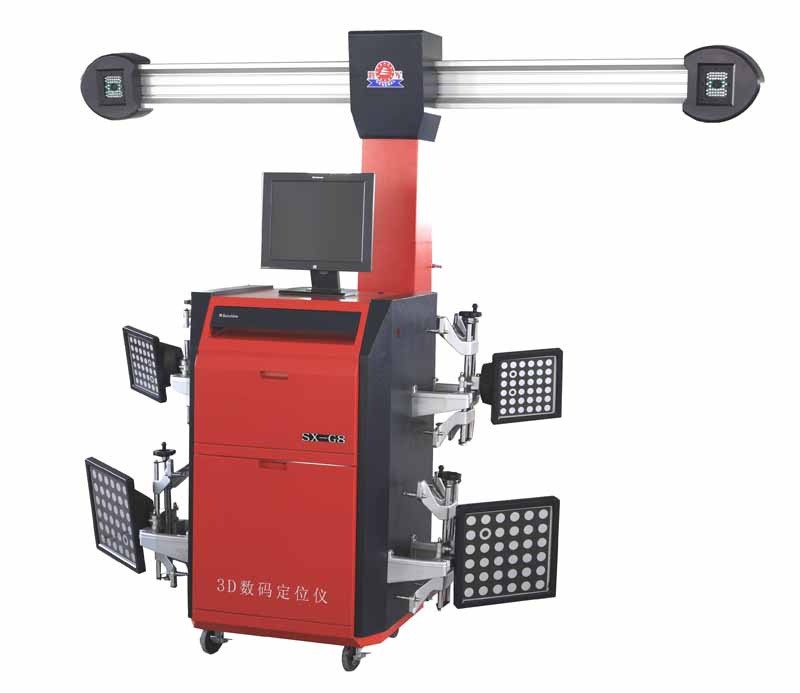

3D wheel alignment-SX-G8


3D Wheel alignment Standard Configuration
Deluxe cabinets, Lenovo or HP branded computers (Liquid Crystal Display), Canon printers, target disk, Pylon, brake holder, steering wheel holder, wedge-shaped pads, corner plate, corner plate blocks of the transition, specific target disk, wheel rim adapter
Software Features
1. Basic Functions:
Parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle
2. Extension Functions: Axis deviation measurement, wheel deviation measurement, animation, single-round measurements, the vehicle lift measurement function, steering wheel, align the features, positioning platform for testing the level of degree the amount of features, voice prompts, engine bracket adjustment, before the beam Lock measurement functions, the former beam curvature measurements, body height measurement function, air suspension, vehicle positioning software (proprietary software), tire demolished before the beam tilt backward dynamic adjustment of measurement functions, offset distance (grinding tire radius)

Adopted the obliquity sensor, laser sensor and Bluetooth wireless communication, the computer itself can collect data, process the data and measure the parameter showing the result which can be printed for file in forms.

Technical specification:
