Features1.Three-dimensional measurement: three-dimensional dynamic virtual planar technology based on car body, more accurate,faster and more stable
2.The camera system: Using two high-speed,High-precision industrial cameras to shoot the target disks which are clipped on the four wheels. Let the three-dimensional imaging data caluclates the vehicle to be tested four precise positioning data through computer.
3.The target disk: No electronic components, replacing the traditional electronic sensors,eliminating equipment faillure caused by circuit.
4.The dynamic measurements: No need to compensate rims.Pushing car,capture images and software to calucate in the same time,completing the precise eccentric compensation and achieving adjustment measurements.
5.The device calibration: A one-time factory calibration of equipment,one-site installation without the need of repeated periodically calibrated.
6.The software system: With instructions indicate guidelines to help repair technicians in the use of technology equipment.
7.Routine maintenance: Maintenance is simple update model data in time.
Technology Advantages1.Pixel of the camera is 5 mega,Breakthrough low pixel domestic compared with other products,capturing high-resolution image acquisition software computing technology difficulties,making the image clearer, and measurements more precise.
2.True dynamic measurement technology: Using our original core technology to simulate and calculate the trajectory of the vehicle,no limit of the length and the distance from the steering wheel carts degree.Pushing car,capture images and software to calculate at the same time,simplifying the process of pushing car,improving measurement efficiency.

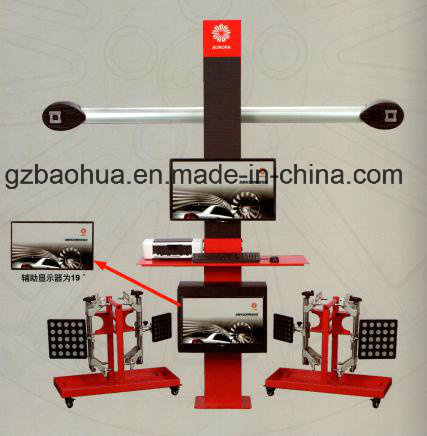

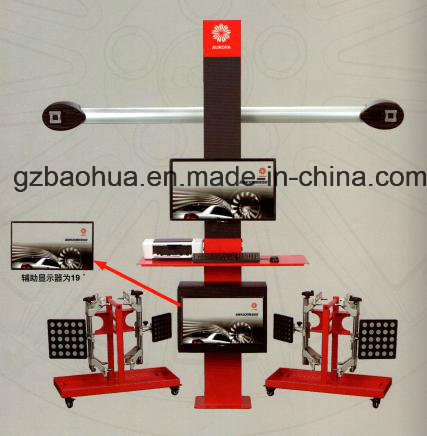

3.Standard configuration: Beautiful cabinet, 5 mega-pixie camera system,Dell computer,32'' LCD, 3D wheel alignment software,HP printer,target plate,clamp,steering wheel fix tool,wedge,brake mandrill.
4.Basic function: Toe-in,Toe-out,Axis deviation,toe angle,set back,thrust angle,KPI
5.Extend function: aix deflection,steering deviation,castor.
6.Basic Function: Front wheel toe-in,rear wheel toe-in,front wheel camber,rear wheel camber,king pin inclination and caster, Thrust angle,unclouded angle.
7.Extensions: Wheel Base,Wheel track, axle aviation and wheel deviation, Rolling radius, steering wheel alignment.
Technical Data
DetailedThe light condition is requirement of the normal work of 3D imaging system,So the control of LED flash luminance and the camera exposure time is important fro 3D system.BHsystem LED flash control system integrated in an electronic board and built into the computer.Power supply is control by computer switch, which is simple, the cost is low, and the power supply voltage is more stable.This system is controlled by intelligent imaging system of BH 3D wheel alignment software,Which can meter intelligently and control flash and exposure respecitively by left and right cameras.
Camera imaging system
The system consists of a 5000000 pixel high speed high precision camera with Japan's best Pentax
brand lens and infrared LED flash system controlled by computer, and infrared filters.Each camera
exposure settings and infrared LED flash brightness are controlled by ML 3D wheel alignment system.
Therefor,the system maximized the equipment application environment, especially in the dark, super
bright and left-right asymmetry illumination environment
Target with new material,superior performance
Compared with traditional target,isosceles triangle target is more convenient for calculation.With the latest material, target has a lot of advantages like light weight,high toughness, corrosion resistance,impact resistance,excellent mechanics performance.In both the north and south, in summer and winter,it can ensure the measured data precision
High precision clamp
The wheel clamp is suitable for the wheel diameter from 11"to25", has the advantages of of high precision, good resistance to torsion,and light weight
Installation
1.Using environment
1)Indoor environments;
2) environment temperature between:-10ºC ~ 45ºC
3) Environment temperature between:86kPa ~ 106kPa
4) Relative humidity≤85%;
5) Power supply:220V±10%,50Hz±1%;
Equipment should be avoided in the following environments
6) Direct sunlight or high temperature places
7) The area where in upheaval temperature
8) Dusty or humid place;
9) The area which has Strong electric field or strong magnetic field
10) Corrosive gases, flammable gas or chemical fumes filled the place.
2. It's better to have an independent power supply, and with the ground, not with large interference device uses the same power source (ie, the same line), or you must add the stabilizer (UPS power supply);
3. General safety instructions
1) please read this manual before you operation or maintenance ,
2) Make sure the power is consistent with the requirements of the machine;
3) The instrument must be connected to use of the ground and good ground, and lay the ground 1.5 meters above the ground;
4)Equipment maintenance must be done by professionals recognized by the Company, beam assembly must be returned to our service center.
5) Turn off the device when work done, to protect machine working lift.
4. mounting dimension
1)Two cameras center perpendicular to the centerline distance between two turntable
is 2250mm,(Special orders can be reduced size 2250mm to 2000mm)
2)The height measurement can be adjustment according the repairemen habits,The high distance between camera and car lift is 500-800mm.
