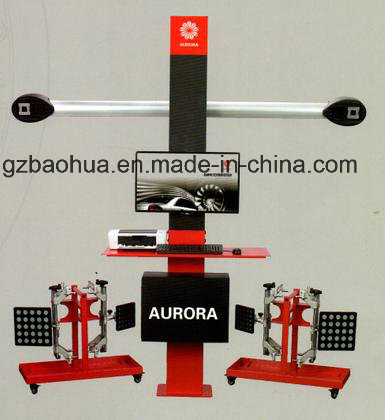

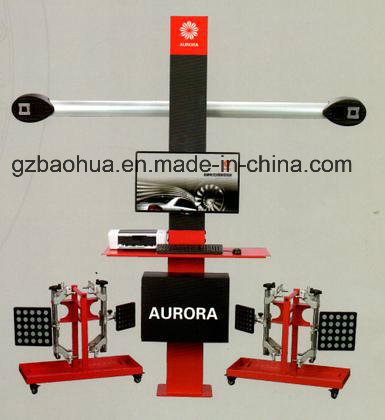

3D Car Wheel Alignment Machine/3D 4 Wheel Aligner
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Features
1.Three-dimensional measurement: three-dimensional dynamic virtual planar technology based on car body, more accurate,faster and more stable
2.The camera system: Using two high-speed,High-precision industrial cameras to shoot the target disks which are clipped on the four wheels. Let the three-dimensional imaging data caluclates the vehicle to be tested four precise positioning data through computer.
3.The target disk: No electronic components, replacing the traditional electronic sensors,eliminating equipment faillure caused by circuit.
4.The dynamic measurements: No need to compensate rims.Pushing car,capture images and software to calucate in the same time,completing the precise eccentric compensation and achieving adjustment measurements.
5.The device calibration: A one-time factory calibration of equipment,one-site installation without the need of repeated periodically calibrated.
6.The software system: With instructions indicate guidelines to help repair technicians in the use of technology equipment.
7.Routine maintenance: Maintenance is simple update model data in time.
Technology Advantages
1.Pixel of the canera is 5 mega,Breakthrough low pixel domestic compared with other products,capturing high-resolution image acquisition software computing technology difficulties,making the image clearer, and measurements more precise.
2.True dynamic measurement technology: Using our original core technology to simulate abd calculate the trajectory of the vehivle,no limit of the length and the distance from the steering wheel carts degree.Pushing car,capture images and software to calculate at the same time,simplifying the process of pushing car,improving measurement efficiency.
3.Standard configuration: Beautifyl cabinet, 5 mega-piexil camera system,Dell computer,32'' LCD,V3D wheel alignment software,HP printer,target plate,clamp,steering wheel fix tool,wedge,brake mandril.
4.Basic function: Toe-in,Toe-out,Axis deviation,toe angle,set back,thrust angle,KPI
5.Extend function: aix deflection,streering deviation,castor.
6.Basic Function: Front wheel toe-in,rear wheel toe-in,front wheel camber,rear wheel camber,king pin inclination and caster, Thrust angle,inclouded angle.
7.Extensions: Wheel Base,Wheel track, axle adviation and wheel deviation, Rolling radius, streering wheel alignment.

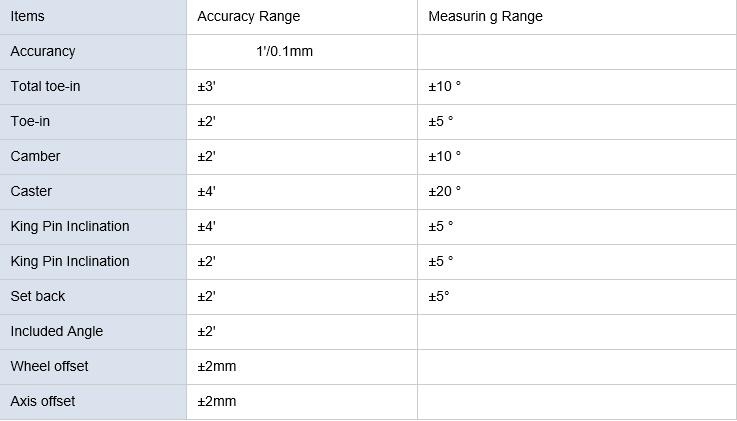

TECHNICAL DATA
DETAILED
Infrared LED flash control system:
The light condition is requirement of the normal work of 3D imaging system,So the control of LED flash luminance and the camera exposure time is important fro 3D system.BHsystem LED flash control system integrated in an electronic board and built into the computer.Power supply is control by computer switch, which is simple, the cost is low, and the power supply voltage is more stable.This system is controlled by intelligent imaging system of BH 3D wheel alignment software,Which can meter intelligently and control flash and exposure respecitively by left and right cameras.
Camera imaging system:
The system consists of a 5000000 pixel high speed high precision camera with Japan's best Pentax
brand lens and infrared LED flash system controlled by computer, and infrared filters.Each camera
exposure settings and infrared LED flash brightness are controlled by ML 3D wheel alignment system.
Therefor,the system maximized the equipment application environment, especially in the dark, super
bright and left-right asymmetry illumination environment.
| Prod Model: |
A-530 |
| Size Of Crossgirder: |
2700*330*300(L*W*H)mm Weigth:40kgs |
| Size Of Alignment Case: |
1200*820*1070(L*W*H)mm Weight:160kgs |
| Total Weight: |
200kgs |
| Camera: |
Wide Angle Industrial Camera |
| Printer: |
One |
| Screen: |
32" |
| Pixel: |
5mega |
| Delivery Detail: |
Shipped in 3 Days Afterpayment |
| Condition: |
New |
| Communication Mode: |
3D Camera |
| Structure: |
Mechanical&Electronic |
