360 Surround View Night Vision Panoramic Driving Assitant Monitor System (720*480)

Name: 360 Surround View Night Vision Panoramic Driving Assitant Monitor System (720*480)
Brand: ibuyautoparts.com
SKU: 817670255
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 80-99/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

360 Surround View Night Vision Panoramic Driving Assitant Monitor System(720*480)
(WMR-888-401)

1.Product introduction
360 all around panoramic parking system is through the installed in the front and rear of 4 ultra wide Angle fish-eye camera collection vehicles around the image at the same time, after dealing with the algorithm synthesis, forming a picture of vehicles around the 360 - degree panoramic aerial view, real-time transmission to the central screen, make the driver can see the situation around the truck directly from your screen, there is no perspective blind area on the ground, can help the driver to confirm whether there is any obstacles around the vehicle clearly, help drivers easy road and parked vehicles.

2.Product features
360 all round panoramic parking system , seamless splicing, the ground without blind spots.

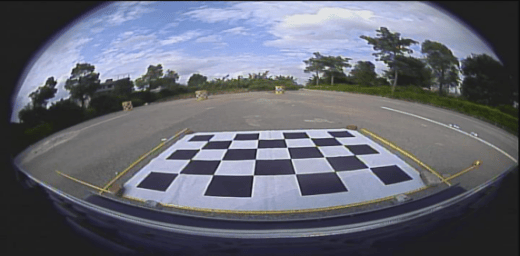

automatic calibration, the calibration easy and convenient .
4 road image real-time driving records, the local playback .
high-definition input signal, image quality is clear and fluent .

3.Product Specifications

Item			Specifications
Camera	Chip sensor	Aptina 3089
	Sensor size	1/3"color digital sensor
	SNR	44 dB
	Mimimum illumination	0.1 LUX
	Dynamic range	82 dB
	Video output	AHD 720P
	Waterproof	IP67
	View angle	>175 degree
	Working voltage	3.3V
	Working current	<250mA
Host	Working voltage range	9~16V
	Working current	<500mA
	Standby current	<10mA
	Working temperature range	-20ºC ~ 70ºC
	Working humidity range	40% ~ 80%

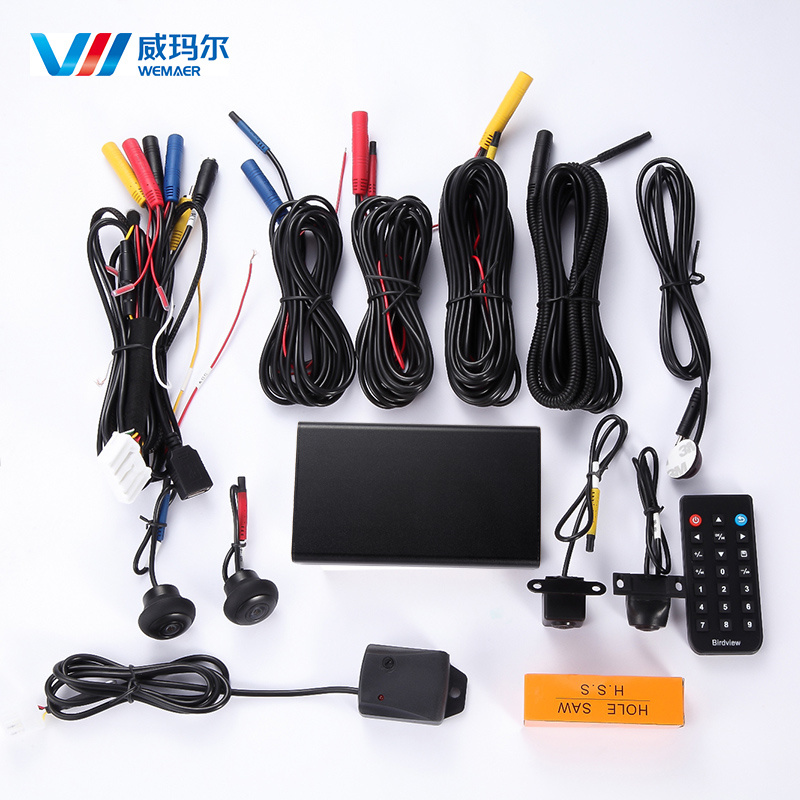

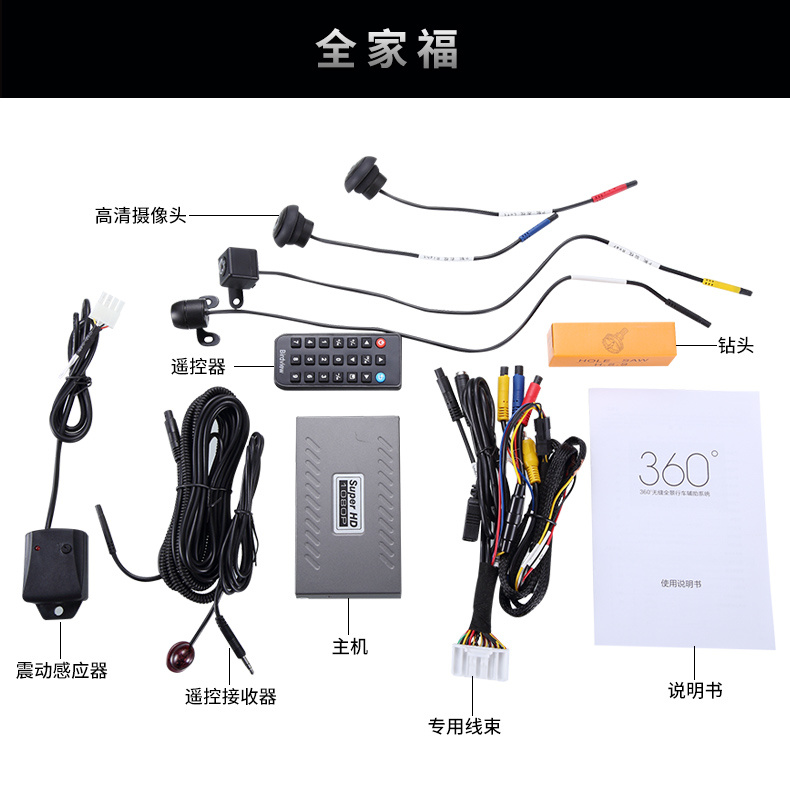

4.Accessories
1. 1× Control Host
2. 4× HD cameras
3. 1×Remote Control
4. 1×IR receiver
5. 1×Host cable
6. 1×Hole Saw
7. 4×Extention Cable
8. 1×shock sensor(optional)
9. 1×trajectory box(optional)
10. 1×Manual
11. 1× package Box

WEMAER FAMILY

Prod Model:	WMR-888-401
View Angle:	360 Degrees
Camera Mimimum Illumination:	0.1 Lux
Video Output:	Ahd 720p
Chip Sensor:	Aptina Ar0130
Snr:	44 dB
Working Voltage:	3.3V
Working Current:	<250mA
Interface:	RCA
Definition:	420TVL
Chip:	CCD
Waterproof Grade:	IP68
Probe Diameter:	22.5mm
